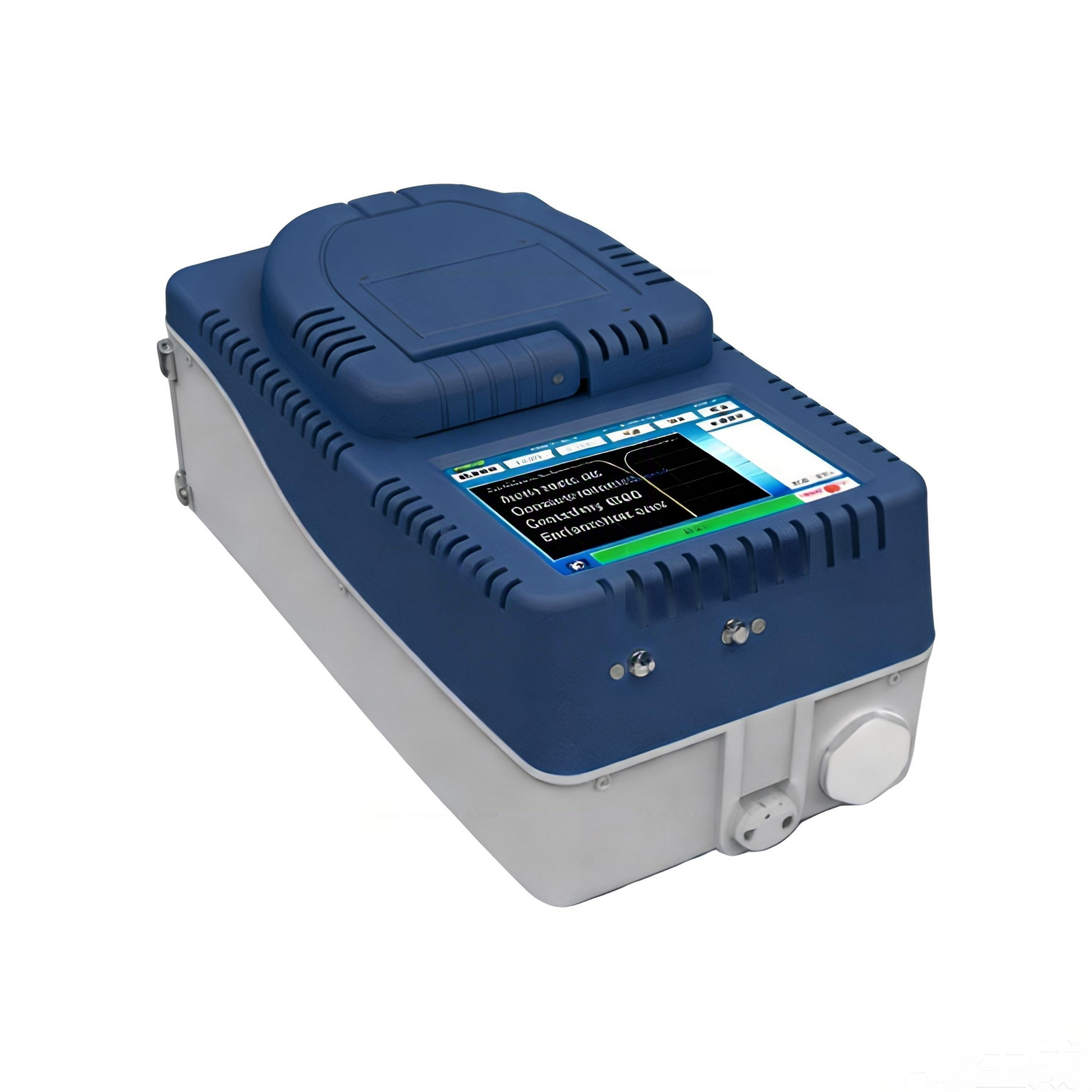

IONSCAN 800™ Portable Explosive & Narcotic Trace Detector
IONSCAN 800™ Portable Explosive & Narcotic Trace Detector
IONSCAN 800™
Explosive & Narcotic Trace Detector
Dual-mode simultaneous detection of explosives and narcotics in under 3 seconds. Picogram-level sensitivity with non-radioactive IMS technology — no nuclear licensing required.
Key Capabilities
Non-Radioactive IMS
No nuclear licensing required. Licence-free global transport and deployment without radiation testing.
Dual-Mode Detection
Simultaneous explosives and narcotics detection in a single analysis cycle without manual switching.
Picogram Sensitivity
Detects trace particles at picogram level with ≥99% detection rate and ≤1% false alarm rate.
Sub-3-Second Analysis
Results in under 3 seconds with automatic clear-down. High throughput for busy operational environments.
Intelligent Maintenance
Auto calibration, self-cleaning after overload, and fault diagnosis with real-time warnings.
Connected & Smart
GPS positioning, remote monitoring, 1M+ data storage, export in Excel/PDF/CSV formats.
How It Works
Simple. Fast. Reliable. Six steps from sample to result.
Sample
Wipe surface with disposable swab to collect trace particles from baggage, clothing, or hands.
Open Cover
Remove inlet cover to expose the sample port for swab insertion.
Insert
Place swab into analysis port. Device auto-detects and begins IMS processing.
Analyze
High-resolution IMS separates and identifies ions in seconds with real-time spectrum display.
Result
Clear display with substance name and concentration for immediate operational action.
Manage
Print reports, export data, review full detection history with timestamp and GPS.
Application Areas
Trusted across security-critical environments worldwide.
Prison & Correctional
Entry screening, mail and parcel checks, cell inspections, portable deployment, central monitoring.
Law Enforcement
Suspect and vehicle screening, forensic verification, incident response, fentanyl safety protocols.
Border & Customs
Customs inspection zones, air cargo screening, maritime port checks, passenger screening.
Critical Infrastructure
Government buildings, power plants, transport hubs, event venues, VIP protection.
Airport & Aviation
Passenger checkpoints, luggage inspection, air cargo compliance, restricted area access.
Military & Defense
Base perimeter security, ordnance detection, CBRN response, tactical field deployment.
Technical Specifications
Detection Capability
| Technology | High-resolution Ion Mobility Spectrometry (IMS) |
| Ionisation Source | Non-radioactive, license-free, long-lifetime |
| Operating Mode | Dual positive/negative ion mode, simultaneous detection |
| Explosives Library | RDX, TNT, PETN, NG, HMX, AN, C4, Semtex, and more |
| Narcotics Library | Cocaine, heroin, THC, meth, ketamine, fentanyl, SPICE, MDMA, LSD |
| Database | Open database, expandable and updateable in real time |
System Performance
| Sensitivity | Picogram (pg) level |
| Analysis Time | <3 seconds |
| Startup Time | <90 seconds |
| Detection Rate | ≥99% |
| False Alarm Rate | ≤1% |
| Sampling Method | Trace particle adsorption, swab wiping |
| Alarm Display | Sound, light, on-screen ID with concentration |
| Self-Maintenance | Auto cleaning, auto diagnosis, auto calibration |
Physical & Environmental
| Dimensions | 290(L) × 170(W) × 137(H) mm |
| Weight | ≤3 kg (without power adapter) |
| Display | 5.6-inch color TFT touchscreen |
| Operating Temperature | −20°C to +60°C |
| Operating Humidity | Up to 99% RH (non-condensing) |
| Battery Life | ≥8 hours continuous, ≥40 hours standby |
| Data Storage | ≥1,000,000 records with retrieval and export |
| Connectivity | Ethernet, USB, Wi-Fi, Bluetooth |
