Compact Xenon Pulsed Light Source
Compact Xenon Pulsed Light Source
Xenon Pulsed Light Source | Fiber-Coupled Broadband Illumination 185–2000nm
High-Stability Pulsed Xenon Lamp for Spectroscopy, Environmental Monitoring & Industrial Process Control
Compact xenon flash lamp with SMA905 fiber coupling output. Ideal for UV-Vis-NIR spectroscopy, water quality monitoring, and online inspection systems. Features 10⁹ pulse lifetime, 1.5% stability, and trigger synchronization.
Key Features
- Xenon light source with fiber coupling output via SMA905 connector (FC optional)
- Pulse mode operation with adjustable repetition for time-resolved measurements
- Excellent stability (1.5% peak-to-peak) for consistent spectroscopic data
- Easily integrated with spectrometers, monochromators, and detection systems
- UV fused silica window for deep UV transmission down to 185nm

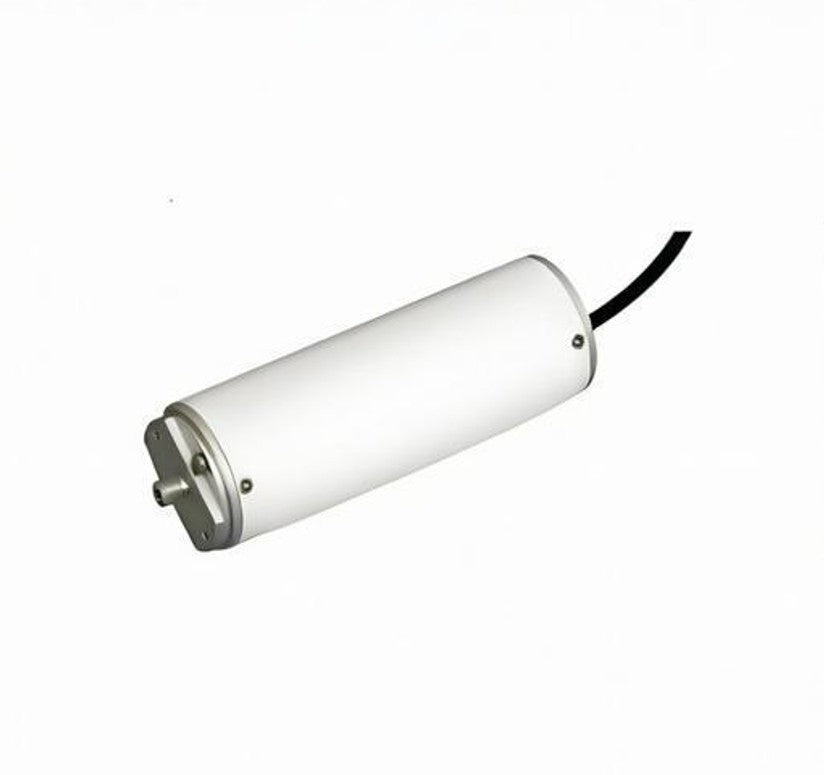

- Compact cylindrical design: Φ36 × 107 mm, only 115g
- External trigger input (330Ω) for synchronized operation
- Cost-effective solution for broadband illumination applications
Applications
- Environmental Monitoring Immersion probe for in-situ water quality measurement, pollution detection, and environmental inspection
- Industrial Process Control Real-time monitoring of chemical processes, quality control in manufacturing lines
- Online Inspection Systems Automated optical inspection, sorting systems, and continuous monitoring applications
- Scientific Research Spectroscopy R&D, photochemistry, fluorescence excitation, and analytical instrumentation
Technical Specifications
Product Overview
The NWSPEC Xenon Pulsed Light Source delivers broadband illumination from deep UV (185nm) to near-infrared (2000nm), making it an ideal choice for spectroscopic applications requiring high-intensity, stable light output. The fiber-coupled design with standard SMA905 connector ensures easy integration with spectrometers, while the optional FC connector compatibility provides flexibility for existing optical setups.
Designed for demanding industrial and research environments, this pulsed xenon lamp features exceptional stability (1.5% peak-to-peak) and an extended lifetime of 10⁹ pulses. The compact form factor (Φ36 × 107 mm) and lightweight construction (115g) enable integration into portable and space-constrained systems. The external trigger input allows precise synchronization with detection electronics for time-resolved spectroscopy and gated detection applications.
Common applications include water quality monitoring using immersion probes, industrial process control, online inspection systems, and scientific research in photochemistry and fluorescence spectroscopy. The UV fused silica window ensures reliable transmission in the deep UV region critical for environmental and analytical applications.
