Type 18 Micro Cuvette 【Glass，Quartz， Infrasil】

Our cuvettes are heat fused for a longer life, and come with a one year warranty.

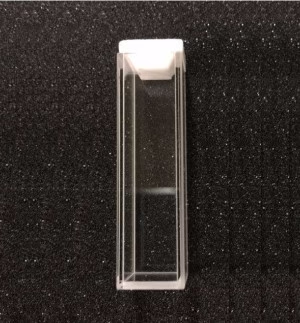

The type 18 is a micro cuvette with a volume of 0.7ml with the 10mm cuvette.

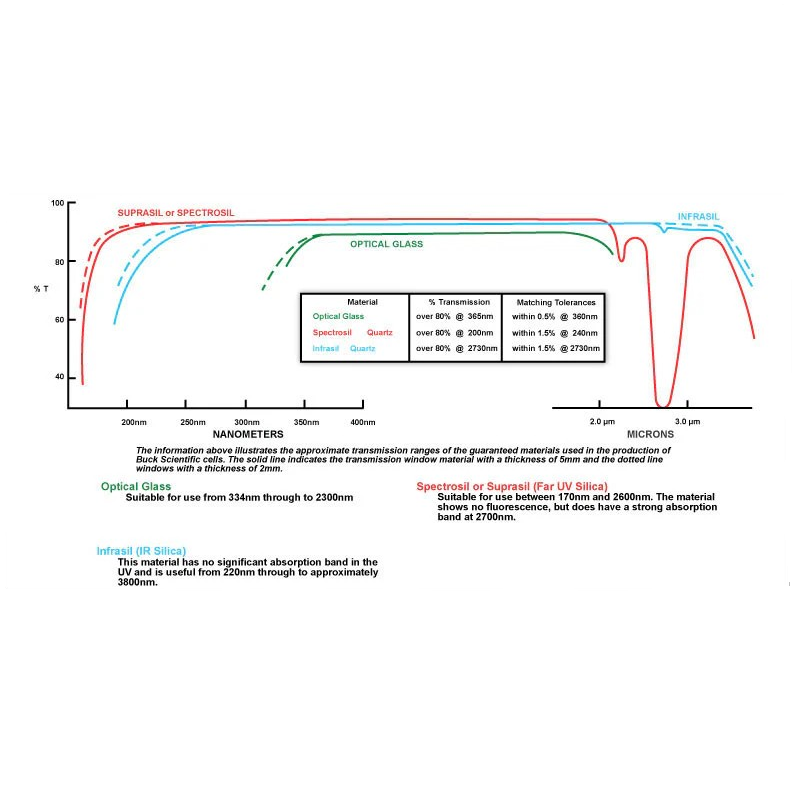

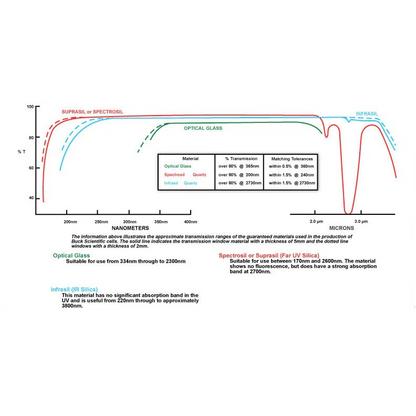

The Wavelength range for Optical:

Glass: 334-2300nm;  Quartz: 220-3800 nm;  Infrasil: 220nm-3800nm

Type 9 List

Type 1 Glass Cuvette with 2mm path length and 0.7ml capacity.

• Height: 45mm
• Width: 12.5mm
• Path Length: 2mm
• Capacity: 0.7ml
• P/N: 1-G-2

Our cuvettes are heat fused for a longer life, and come with a one year warranty.

Type 1 Glass Cuvette with a 5mm path length and a 1.7ml capacity.

• Height: 45mm
• Width: 12.5mm
• Path Length: 5mm
• Capacity: 1.7 ml
• P/N 1-G-5

Our cuvettes are heat fused for a longer life, and come with a one year warranty.

Type 1 Glass Cuvette with a 10mm path length and 3.5ml capacity.

• Height: 45mm
• Width: 12.5mm
• Path Length: 10mm
• Capacity: 3.5ml
• P/N: 1-G-10

Our cuvettes are heat fused for a longer life, and come with a one year warranty.

Type 1 Glass Cuvette with a 20mm path length and 7.0ml capacity.

• Height: 45mm
• Width: 12.5mm
• Path Length: 20mm
• Capacity: 7.0ml
• P/N: 1-G-20

Our cuvettes are heat fused for a longer life, and come with a one year warranty.

Type 1 Glass Cuvette with a 30mm path length and 10.5ml capacity.

• Height: 45mm
• Width: 12.5mm
• Path Length: 30mm
• Capacity: 10.5ml
• P/N: 1-G-30

Our cuvettes are heat fused for a longer life, and come with a one year warranty.

Type 1 Glass Cuvette with a 40mm path length and 14.0ml capacity.

• Height: 45mm
• Width: 12.5mm
• Path Length: 40mm
• Capacity: 14.0ml
• P/N: 1-G-40

Our cuvettes are heat fused for a longer life, and come with a one year warranty.

Type 1 Glass Cuvette with a 50mm path length and 17.5ml capacity.

• Height: 45mm
• Width: 12.5mm
• Path Length: 50mm
• Capacity: 17.5ml
• P/N: 1-G-50

Our cuvettes are heat fused for a longer life, and come with a one year warranty.
