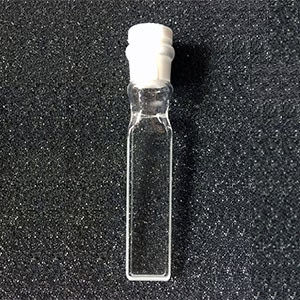

Standard Type 1 Glass Cuvette

Our cuvettes are heat fused for a longer life, and come with a one year warranty.

The type 21 is a standard cuvette, polished on two sides with a stopper.

The Wavelength range for Optical:

Glass: 334-2300nm; Quartz: 220-3800 nm; Infrasil: 220nm-3800nm

Type 21 List

P/N	Height/mm	Width/mm	Path Length/mm	Capacity/ml
21-G-1	45	12.5	1	0.4
21-G-2	45	12.5	2	0.7
21-G-5	45	12.5	5	1.7
21-G-10	45	12.5	10	3.5
21-G-20	45	12.5	20	7
21-G-40	45	12.5	40	14
21-G-50	45	12.5	50	17.5
21-Q-1	45	12.5	1	0.4
21-Q-2	45	12.5	2	0.7
21-Q-5	45	12.5	5	1.7
21-Q-10	45	12.5	10	3.5
21-Q-20	45	12.5	20	7
21-Q-40	45	12.5	40	14
21-Q-50	45	12.5	50	17.5
21-I-1	45	12.5	1	0.4
21-I-2	45	12.5	2	0.7
21-I-5	45	12.5	5	1.7
21-I-10	45	12.5	10	3.5
21-I-20	45	12.5	20	7
21-I-40	45	12.5	40	14
21-I-50	45	12.5	50	17.5

Type 1 Glass Cuvette with a 10mm path length and 3.5ml capacity.

• Height: 45mm
• Width: 12.5mm
• Path Length: 10mm
• Capacity: 3.5ml
• P/N: 1-G-10

Our cuvettes are heat fused for a longer life, and come with a one year warranty.

Type 1 Glass Cuvette with a 20mm path length and 7.0ml capacity.

• Height: 45mm
• Width: 12.5mm
• Path Length: 20mm
• Capacity: 7.0ml
• P/N: 1-G-20

Our cuvettes are heat fused for a longer life, and come with a one year warranty.

Type 1 Glass Cuvette with a 30mm path length and 10.5ml capacity.

• Height: 45mm
• Width: 12.5mm
• Path Length: 30mm
• Capacity: 10.5ml
• P/N: 1-G-30

Our cuvettes are heat fused for a longer life, and come with a one year warranty.

Type 1 Glass Cuvette with a 40mm path length and 14.0ml capacity.

• Height: 45mm
• Width: 12.5mm
• Path Length: 40mm
• Capacity: 14.0ml
• P/N: 1-G-40

Our cuvettes are heat fused for a longer life, and come with a one year warranty.

Type 1 Glass Cuvette with a 50mm path length and 17.5ml capacity.

• Height: 45mm
• Width: 12.5mm
• Path Length: 50mm
• Capacity: 17.5ml
• P/N: 1-G-50

Our cuvettes are heat fused for a longer life, and come with a one year warranty.
