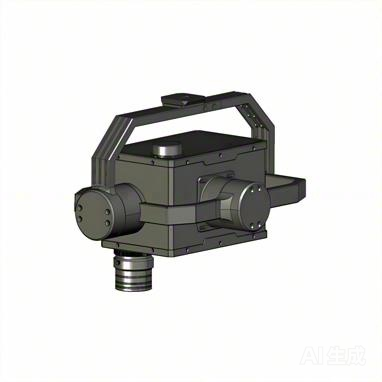

NWH9000M-VNIR drone-mounted hyperspectral
NWH9000M-VNIR drone-mounted hyperspectral
Couldn't load pickup availability
Product Overview
The NWH9000M-VNIR drone-mounted hyperspectral imaging system utilizes advanced hyperspectral imaging technology to fully explore and harness the unique spectral information of various substances. Combined with a high-definition camera for sharp image capture, it enables comprehensive detection of qualitative, quantitative, temporal, and locational information of substances. This is a versatile "spectral-image fusion" remote sensing device, which can be widely applied in scenarios such as water environmental monitoring, smart agriculture, forestry surveys, target identification, anti-camouflage, and more, meeting the diverse needs of various industries.
Product Advantages
Exceptional Optical Performance: 2.8nm/8nm resolution, 460 bands, 21° field of view
Multidimensional Data Fusion Analysis: Simultaneous collection of spectral, image, and GPS data
High-Definition Visible Light: Built-in spectral angle algorithm for precise spectral difference recognition
Geographic Coordinate Calculation: Built-in geometric correction module
Resistant to Sunlight Variability: Includes environmental light correction component
Real-Time Parameter Inversion to Cloud: TN/TP/NH3N/CHLA/COD/DO/SS
Remote Intelligent Control: Control device and adjust parameters via drone remote control
Built-in Common Vegetation Indices: NDVI, NDWI, RVI, PRI, and more than 20 other indices
Real-Time Monitoring: Instantaneous display of hyperspectral spectra and high-definition camera images
High-Precision Self-Stabilizing Gimbal: Ideal image capture without post-processing
Efficient Push-Broom Imaging: Automatic flight for data collection through drone flight path planning
Large-Scale Image Stitching: Built-in multi-path image stitching functionality
Deep UAV Integration: Shared power supply, data transmission, and GPS
Ultra-Large Onboard Storage: 1TB hard drive for 8 hours of continuous operation
Quick and Easy Setup: Complete deployment and takeoff within 10 minutes
Product Parameters
| Model | Specification | NWH9000M-VNIR drone-mounted hyperspectral |
| Hyperspectral Camera | Spectral Range | 400-1000nm |
| Spectral Resolution | ≤3.5nm | |
| Sampling Interval | 2.8nm (4X) | |
| F-number | F/2.4 | |
| Detector | CMOS | |
| Detector Interface | USB3.0 | |
| Power Supply for Detector | External power (12-24 VDC), 3W | |
| Detector Sensor Size | 1/1.2”, 11.3mm x 7.1mm | |
| Original Detector Resolution | 1920 x 1200 | |
| Original Pixel Size | 5.86 µm x 5.86 µm | |
| Effective Pixel Bit Depth | 12bits | |
| Slit Width | 25µm | |
| Recommended Pixel Merging Mode | 4x4 | |
| Spatial Effective Pixel Count | ≥1450 (1X), ≥360 (4X) | |
| Spectral Bands | ≥920 (1X), ≥230 (4X) | |
| Field of View (FOV) | 29° @f=16mm | |
| Instantaneous Field of View (IFOV) | 1.6mrad @f=16mm | |
| Maximum Frame Rate | ≤120fps | |
| Hyperspectral Lens | Standard 16mm | |
| High-Definition Camera | HD Camera | 500MP |
| Self-Stabilizing Gimbal | Self-Stabilizing Gimbal | 2-axis high-stability gimbal |
| POS System | GPS Positioning Accuracy | 10cm |
| Acquisition and Control System | Onboard Control and Acquisition System | CPU: i7, Memory: 16GB, Storage: 1TB |
| Remote Intelligent Control | UAV Remote Controller with Remote Intelligent Control | |
| Real-Time Monitoring | Real-time spectral data display | |
| Overall Parameters | Working Current | Peak Current: 3A |
| Input Voltage | 13.6V | |
| Weight | Less than 990g (Main Unit, Lens, and Gimbal) | |
| Operating Temperature | 0-40℃, 20% ~ 80% RH (non-condensing) |
