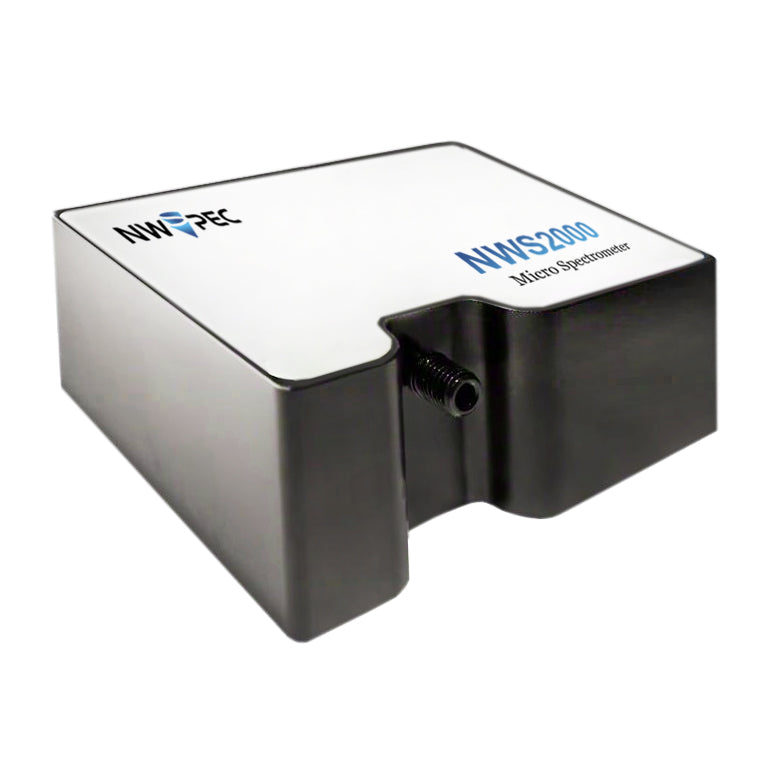

NWS2000 Spectrometer
NWS2000 Spectrometer
Couldn't load pickup availability
Description
Powerful spectral analysis in a compact form factor with the NWS2000. Designed for easy integration into portable devices and equipment with limited space, this miniature spectrometer combines exceptional optical and electrical performance with NWspec Technology's proprietary chromaticity dynamic library algorithm. Delivering measurement parameters that meet or exceed international standards, the NWS2000 provides a clear performance advantage over competing solutions.
Application
Color Science: Spectrophotometric radiometry, handheld color difference meters, specular colorimeters, color luminance meters, color detection.
Light Measurement: Portable photometers.
Environmental Monitoring: Environmental inspection.
Integrated Systems: Integration of confined space equipment.
Features
Miniature Design: Small and lightweight for effortless integration into portable and handheld devices – ideal for field applications.
Broad Application Coverage: Rich functionality to address a wide range of spectroscopic needs, from basic measurements to advanced analysis.
Rapid Data Acquisition: Quick sampling ensures fast and efficient spectral capture.
Simplified Integration: Comprehensive dynamic link library (DLL) for seamless integration with existing systems.
Advanced Color Analysis: A dedicated color dynamic link library empowers sophisticated colorimetric measurements.
Exceptional Stability: Low drift design guarantees consistent and reliable performance over extended periods.
Cost-Optimized Solution: Provides outstanding performance and versatility at a highly competitive price point.
Resolution
| Wavelength Range | Wavelength Resolution (nm) | 30 μm slit | 40 μm slit | 50 μm slit | 60 μm slit | 70 μm slit | 100 μm slit | 150 μm slit | 200 μm slit |
| 200-500nm | 0.22 | 1.00 | 1.10 | 1.20 | 1.40 | 1.60 | 2.10 | 3.20 | 4.20 |
| 200-850nm | 0.45 | 2.00 | 2.20 | 2.30 | 2.70 | 3.20 | 4.20 | 6.40 | 8.40 |
| 350-1100nm | 0.61 | 3.20 | 3.40 | 3.60 | 4.00 | 4.30 | 5.60 | 8.30 | 11.2 |
Note: Optical resolution is based on FWHM at 435.8 nm.
Specificaiton
| Spectral Specification | |
| Spectral Range: | 200-1100nm |
| Spectral Resolution： | Maximum 0.22 nm |
| Optical Resolution： | Maximum 1.00nm FWHM |
| Higher-Order Diffraction： | Add a high-order diffraction suppression filter |
| Stray Light： | <0.1% |
| Detector: | |
| Detector Model: | Hamamatsu CMOS linear array sensor |
| Spectral Detection Range: | 200~1100nm |
| Pixel: | 2048 pixels |
| Pixel Size: | 14*200um |
| High Sensitivity: | 1300V(Ix*s) |
| Fastest Speed: | 10M |
| Optical Specification | |
| Optical Path: | F/4, symmetrical cross Czerney-Turner optical path |
| Focal Length: | 40mm; 60mm |
| Incident Slit: | Standard 70um (optional) |
| Optical Fiber: | SMA905 0.22NA |
| Electronical Specification | |
| Signal-to-Noise Ratio: | 750:1 |
| Linearity: | >99.8% |
| Integration Time: | 0.1ms~1s |
| Dynamic Range: | 500000 |
| AD: | No distortion 16-bit |
| Test Speed: | 2.8ms + integration time |
| Communication Interface: | USB 2.0, RS232, RS485 |
| Power Consumption: | 10-pin expansion interface; with external trigger function |
| Cooling: | 300mA@5VDC |
| Other Characteristics | |
| Support System: | Windows, Android, Linux, Wince |
| Dimensions: | 80mm*63mm*34mm |
| Weight: | 320g |
| Fixed: | 3-direction standard installation holes |
