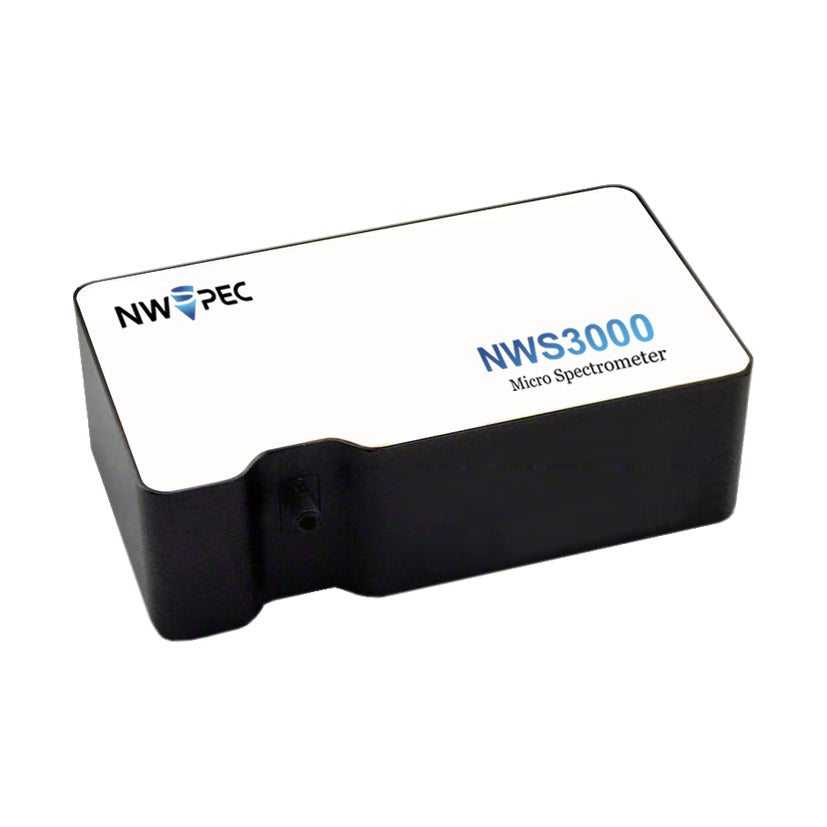

NWS3000 Spectrometer
NWS3000 Spectrometer
Regular price
$2,500.00 USD
Regular price
$3,500.00 USD
Sale price
$2,500.00 USD
Unit price
per
Couldn't load pickup availability
Description
NWS3000 Designed and developed specifically for industrial application customers. Its notable features include high-speed spectral output, high-speed sampling, and high-speed transmission. This model spectrometer has a stable structure and low drift characteristics, which support large-scale industrial customized OEM applications. It supports cross-platform secondary development packages (SDK), and customers can complete rapid development and application by using the provided function libraries.
Resolution
| Wavelength Range | Wavelength Resolution (nm) | 30 μm slit | 40 μm slit | 50 μm slit | 60 μm slit | 70 μm slit | 100 μm slit | 150 μm slit | 200 μm slit |
| 200-500nm | 0.32 | 0.80 | 1.00 | 1.10 | 1.20 | 1.40 | 2.10 | 3.00 | 4.00 |
| 350-950nm | 0.66 | 1.20 | 2.00 | 2.20 | 2.40 | 2.80 | 3.80 | 5.80 | 7.70 |
| 600-1100nm | 0.64 | 1.20 | 2.00 | 2.20 | 2.40 | 2.80 | 3.80 | 5.80 | 7.70 |
Application
- Wafer inspection
- Optical spectroscopy inspection
- Online high-speed spectroscopy inspection - Film transmittance inspection
- Industrial integration inspection
- Teaching and research
Product Features:
- High sensitivity
- High-speed chromatogram output: up to 10 MHz
- Ultraviolet response: 200 - 1000 nm
- High-speed sampling: up to 0.8 ms per frame
- Low stray light
- One low drift characteristic
- One automatic zeroing function
- High cost-effectiveness
Specification |
|
| Spectral Specification | |
| Spectral Range: | 200-1100nm |
| Spectral Resolution： | Maximum 0.32 nm |
| Optical Resolution： | Maximum 0.8nm FWHM |
| Higher-Order Diffraction： | Add a high-order diffraction suppression filter |
| Stray Light： | <0.1% |
| Detector: | |
| Detector Model: | Hamamatsu CMOS linear array sensor |
| Spectral Detection Range: | 200~1100nm |
| Pixel: | 1024 pixels |
| Pixel Size: | 25*500um |
| High Sensitivity: | 2600V(Ix*s) |
| Fastest Speed: | 10M |
| Optical Table | |
| Optical Path: | F/4, symmetrical cross Czerney-Turner optical path |
| Focal Length: | 70mm; 90mm |
| Incident Slit: | Standard 70um (optional) |
| Optical Fiber: | SMA905 0.22NA |
| Electronic Property | |
| Signal-to-Noise Ratio: | 500:01:00 |
| Linearity: | >99.8% |
| Integration Time: | 0.1ms~1s |
| Dynamic Range: | 150000 |
| AD: | No distortion 16-bit |
| Test Speed: | 1.8ms + integration time |
| Communication Interface: | USB 2.0; RS232; RS485 |
| Power Consumption: | 16-pin expansion interface; with external trigger function |
| Cooling: | 300mA@5VDC |
| Other Characteristics | |
| Support System: | Windows, Android, Linux, Wince |
| Dimensions: | 128mm*72mm*40mm |
| Weight: | 500g |
| Fixed: | 3-direction standard installation holes |
