Choose Your IC60 Ion Chromatograph

Automated ion analysis with built-in eluent generation

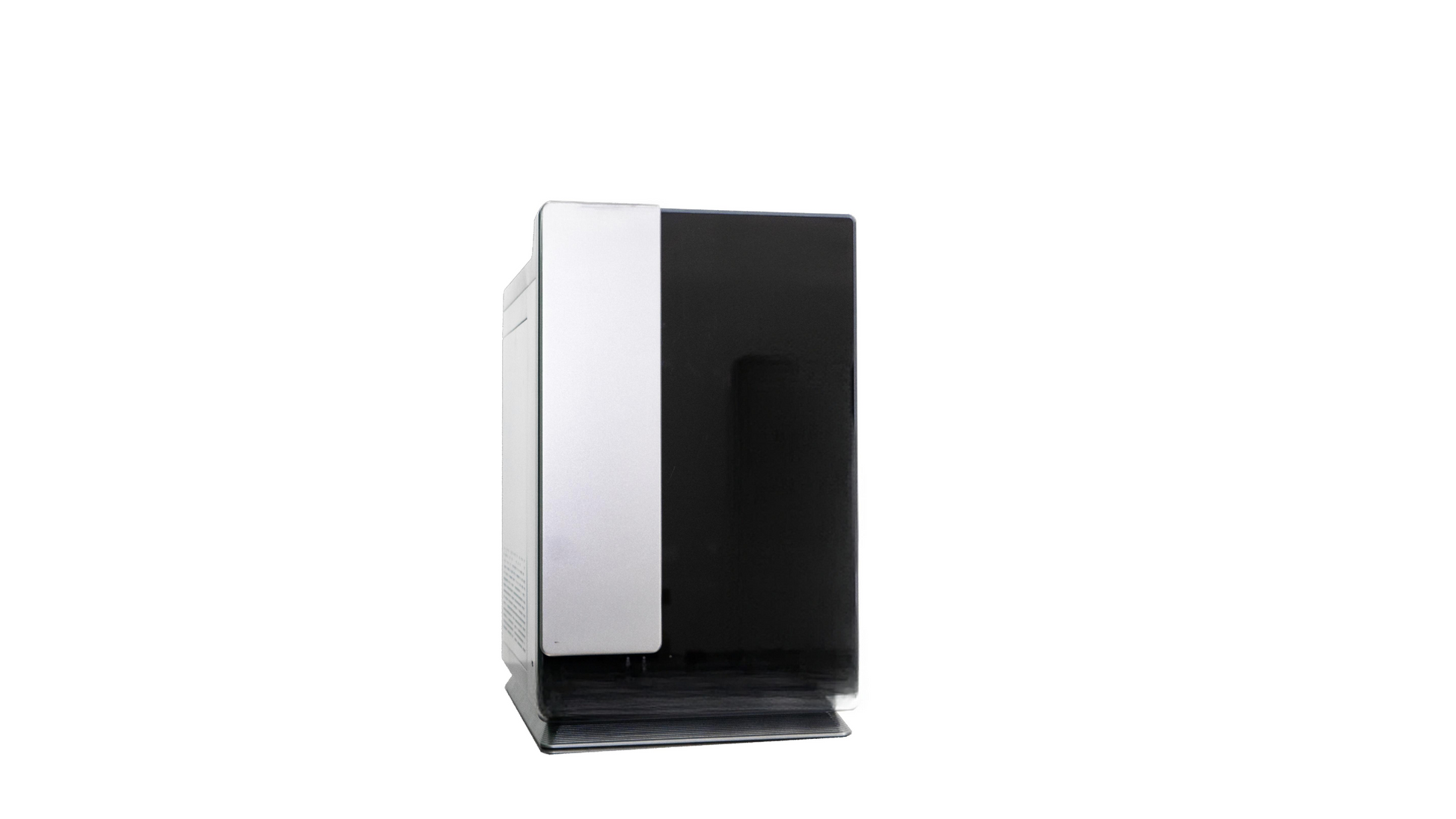

IC60 Series

The IC60 Series delivers reliable, automated ion chromatography for routine anion and cation analysis. With built-in eluent generation, real-time monitoring, and intelligent safety features, the IC60 eliminates manual preparation while ensuring consistent, accurate results for environmental, food safety, and industrial quality control laboratories.

Step 1: Select Your Configuration

Choose between standard anion analysis or combined anion/cation capability

Standard Configuration
IC60-A
Anion Analysis System
Analysis Mode Anions Only
Eluent Types KOH/NaOH/LiOH
Suppressor Electrolytic (4mm)
Detection Auto-range Conductivity
Best For
Water quality testing (F-, Cl-, NO3-, SO4-2), environmental monitoring, and routine anion analysis in food and pharmaceuticals
Advanced Configuration
IC60-AC
Anion/Cation System
Analysis Mode Anions + Cations
Eluent Types KOH/NaOH/MSA
Suppressor Electrolytic (2mm/4mm)
Detection Auto-range Conductivity
Best For
Complete ion analysis (Li+, Na+, K+, Ca2+, Mg2+ plus anions), pharmaceutical counter-ions, and comprehensive water characterization
Configuration Note
IC60-A is optimized for anion analysis with hydroxide eluents. IC60-AC adds methanesulfonic acid (MSA) capability for cation analysis. Both configurations share the same pump, detector, and autosampler. Upgrade from IC60-A to IC60-AC is possible with field installation of cation column and MSA generator.
IC60 Series Capabilities
≤0.0001 µg/mL Detection Limit
42 MPa Maximum Pressure
0.1-100 mM Eluent Range
≤0.2% Quantitative RSD
±0.01℃ Temperature Control
31 kg Compact Design

Step 2: Match Your Application

Find the recommended configuration for your analytical needs

WQ
Water Quality
Drinking water, wastewater, and process water analysis for regulatory compliance
Recommended IC60-A
F-, Cl-, NO3-, SO4-2, PO4-3
FS
Food Safety
Nitrite/nitrate in meat products, sulfite in beverages, and food additive analysis
Recommended IC60-A
Preservative monitoring
PH
Pharmaceutical
Counter-ion analysis, residual solvents, and quality control of ionic species
Recommended IC60-AC
Anions + cations (Na+, K+, Ca2+)
EV
Environmental
Soil extracts, atmospheric deposition, and surface water monitoring
Recommended IC60-A or IC60-AC
Depends on ion range needed
ED
Education
University teaching labs, student training, and method development courses
Recommended IC60-A
Budget-friendly entry point
IC
Industrial QC
Process water, chemical manufacturing, and power plant water chemistry
Recommended IC60-AC
Complete ion balance

Step 3: Choose Your Eluent Chemistry

Built-in eluent generator eliminates manual preparation

KOH
Potassium Hydroxide
Most Common
General purpose anion analysis. Suitable for F-, Cl-, NO2-, Br-, NO3-, PO4-3, SO4-2. Wide elution range (0.1-100 mM).
NaOH
Sodium Hydroxide
Alternative Base
Similar selectivity to KOH. Used when sodium form is preferred or for specific method requirements.
MSA
Methanesulfonic Acid
For Cations
Required for cation analysis (Li+, Na+, NH4+, K+, Ca2+, Mg2+). Only available with IC60-AC configuration.
Pro Tip: The IC60's built-in eluent generator produces high-purity KOH, NaOH, or MSA online from deionized water, eliminating manual eluent preparation and ensuring reproducible gradients. Concentration range: 0.1-100 mM with 0.1 mM increments.

Key Features & Benefits

Why choose IC60 for your ion analysis needs

Auto-Range Conductivity Detection
Automatically expands detection range from ppb to ppm without manual range switching. Eliminates sample re-runs and ensures accurate quantification across wide concentration ranges.
Benefits
  • 0-50,000 μS/cm range
  • No manual calibration
  • Consistent sensitivity
Real-Time Monitoring
Continuous monitoring of suppressor and column status ensures timely replacement of consumables. Prevents unexpected downtime and maintains data quality.
Benefits
  • Preventive maintenance alerts
  • Consistent performance
  • Reduced troubleshooting
Intelligent Safety System
Built-in pressure, leakage, and wash liquid alarms protect the instrument and operator. Automatic shutdown on liquid leakage prevents damage.
Benefits
  • 24/7 unattended operation
  • Instrument protection
  • Operator safety
Key Feature
Baseline Deduction Software
Advanced filtering algorithms remove baseline drift and noise caused by gradient elution. Ensures flat baselines and reliable integration even with complex gradients.
Benefits
  • Reliable gradient separations
  • Improved peak detection
  • Reduced manual intervention

Our Recommendation

For most routine ion analysis laboratories

IC60-A with KOH Eluent Generator
This configuration provides the optimal balance of capability and cost for routine anion analysis. The built-in KOH generator eliminates daily eluent preparation, while the auto-range detector handles samples from ppb to ppm without re-runs. Suitable for 80% of ion chromatography applications including water quality, food safety, and environmental monitoring.
Zero Preparation Online eluent generation
Wide Range ppb to ppm in one run
Upgrade Path Add cation analysis later
