NWSPEC

FT-IR Gas Analyzer

Name: FT-IR Gas Analyzer
Brand: NWSPEC
SKU: IR850
Price: 110000.00 USD
Availability: InStock

IR850 Mobile FT-IR Gas Analyzer

Portable multi-gas monitoring for fixed pollution sources. 200+ customized gases. Global compliance.

One Portable System. 200+ Gases. Real-Time Compliance Anywhere.

The IR850 replaces multiple analyzers and complex sampling trains with one mobile FT-IR system that travels to your stack and measures everything on-site — from inorganics to VOCs to greenhouse gases — with certified accuracy for regulatory reporting.

What Problem Are You Solving?

The Old Way

Multiple Instruments, Lab Delays, Compliance Risk

Collect grab samples, send to lab, wait days for results
Deploy multiple portable analyzers for different gas classes
Miss emission spikes during batch sampling intervals
Complex RATA testing with separate reference methods
Add new gas requirements? Buy new hardware

The IR850 Way

All-in-One Portable Analysis, Immediate Results

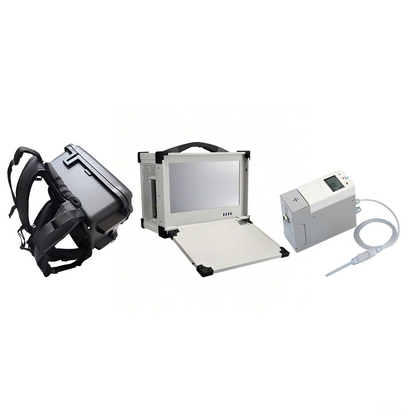

Complete mobile lab: analyzer, heated sampling, power, computer in one case
200+ gases in one scan: inorganics, organics, VOCs, greenhouse gases
Real-time continuous monitoring: 5 scans/second, no gaps
Built-in RATA compliance: meets EPA Method 320, HJ 1240-2021
New gas requirements? Software update — no hardware changes

Global Regulatory Compliance

International Standards

EPA Method 320: Vapor phase organic/inorganic emissions by FT-IR (USA)
EN 15267-3: MCERTS certification for automated monitoring systems (EU)
ISO 10396: Automated monitoring of stationary source emissions
ASTM D6348: FT-IR for determination of gaseous compounds
US EPA 40 CFR Part 60/75: CEMS compliance for power generation

China HJ Standards

HJ 919-2017: Ambient air VOCs by portable FT-IR
HJ 920-2017: Emergency monitoring of inorganic gases
HJ 1011-2018: VOC component monitoring technical requirements
HJ 1240-2021: SO₂, NO, NO₂, CO, CO₂ in fixed source emissions
HJ 1330-2023: NH₃ and HCl in fixed source emissions

Why Select the IR850?

True Portability, Real Performance

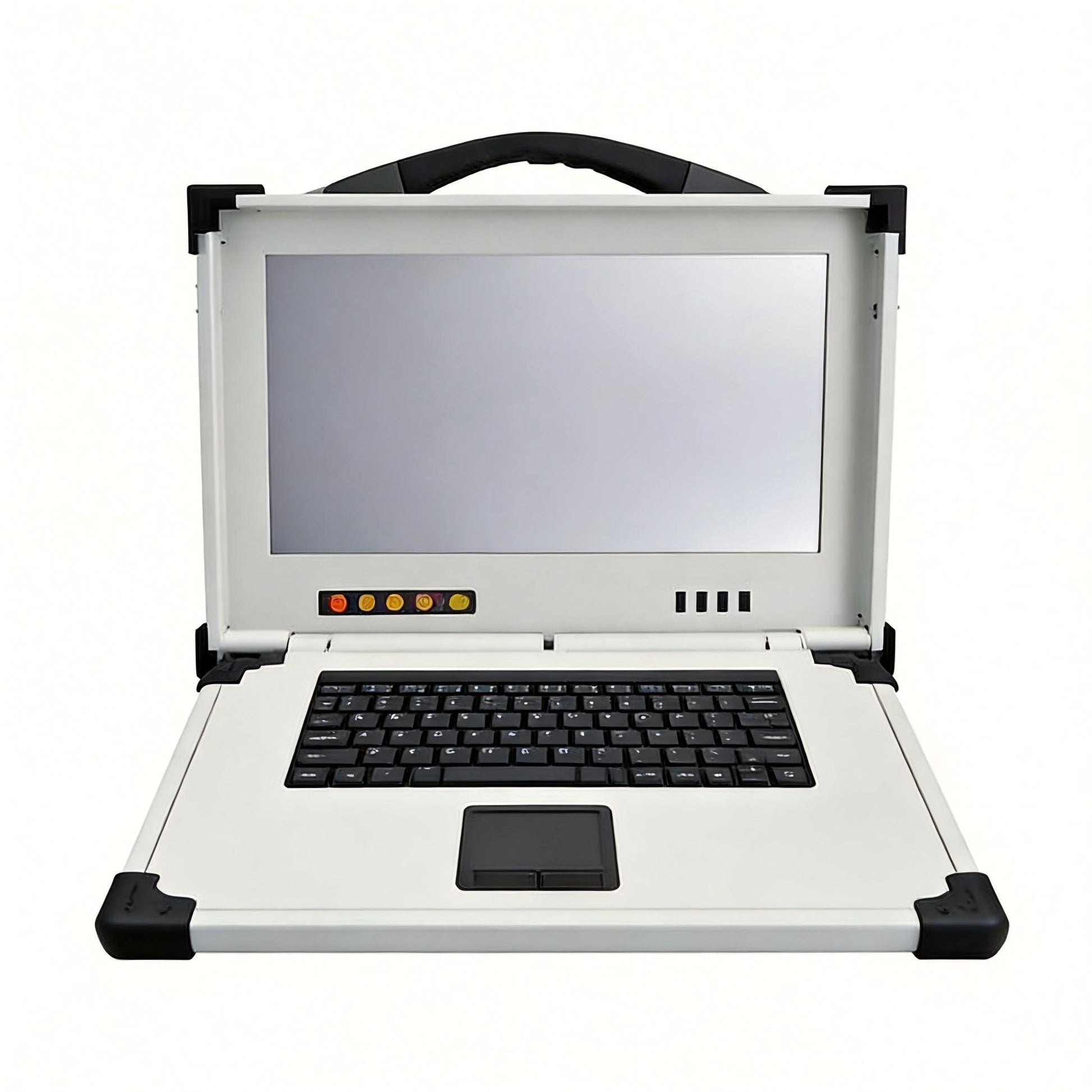

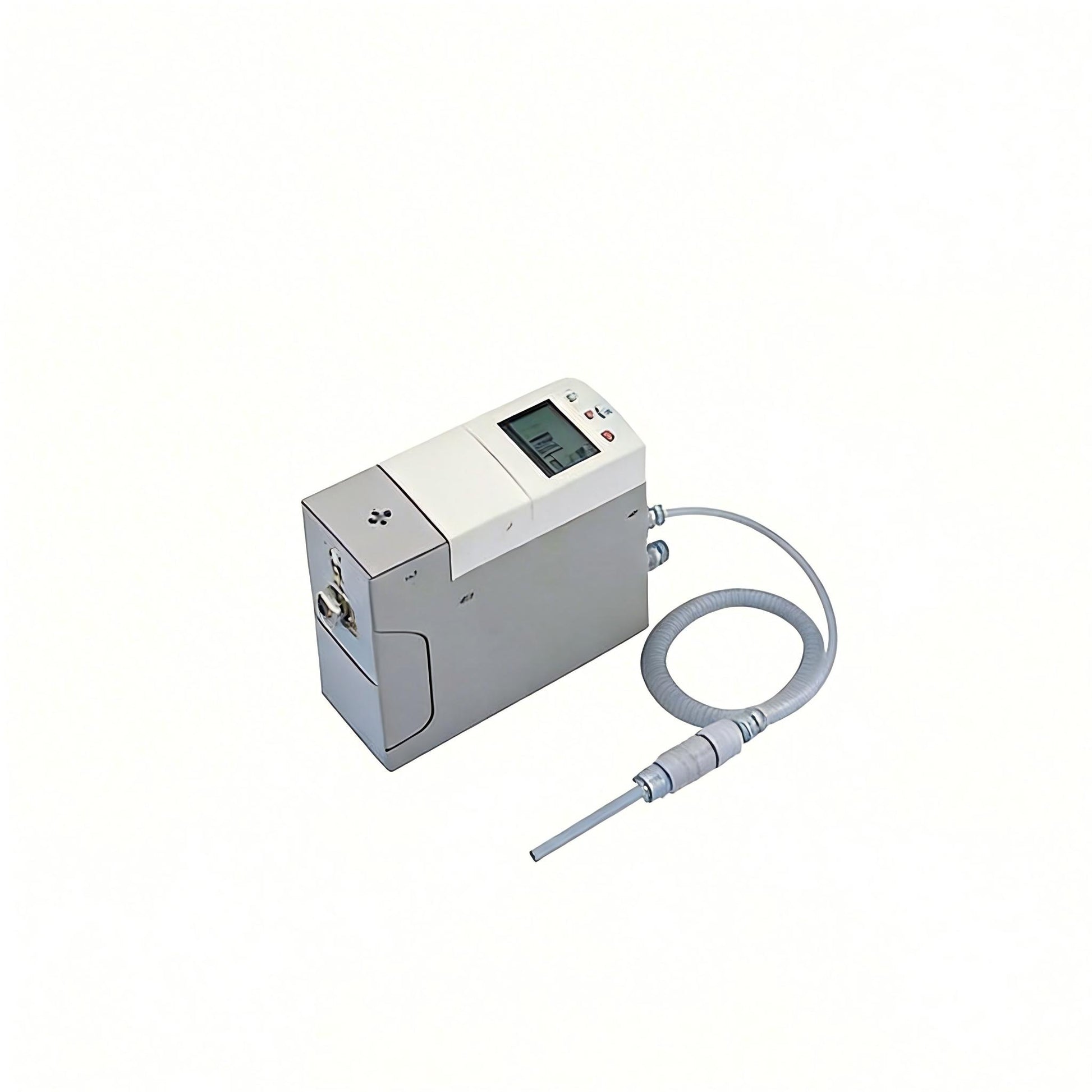

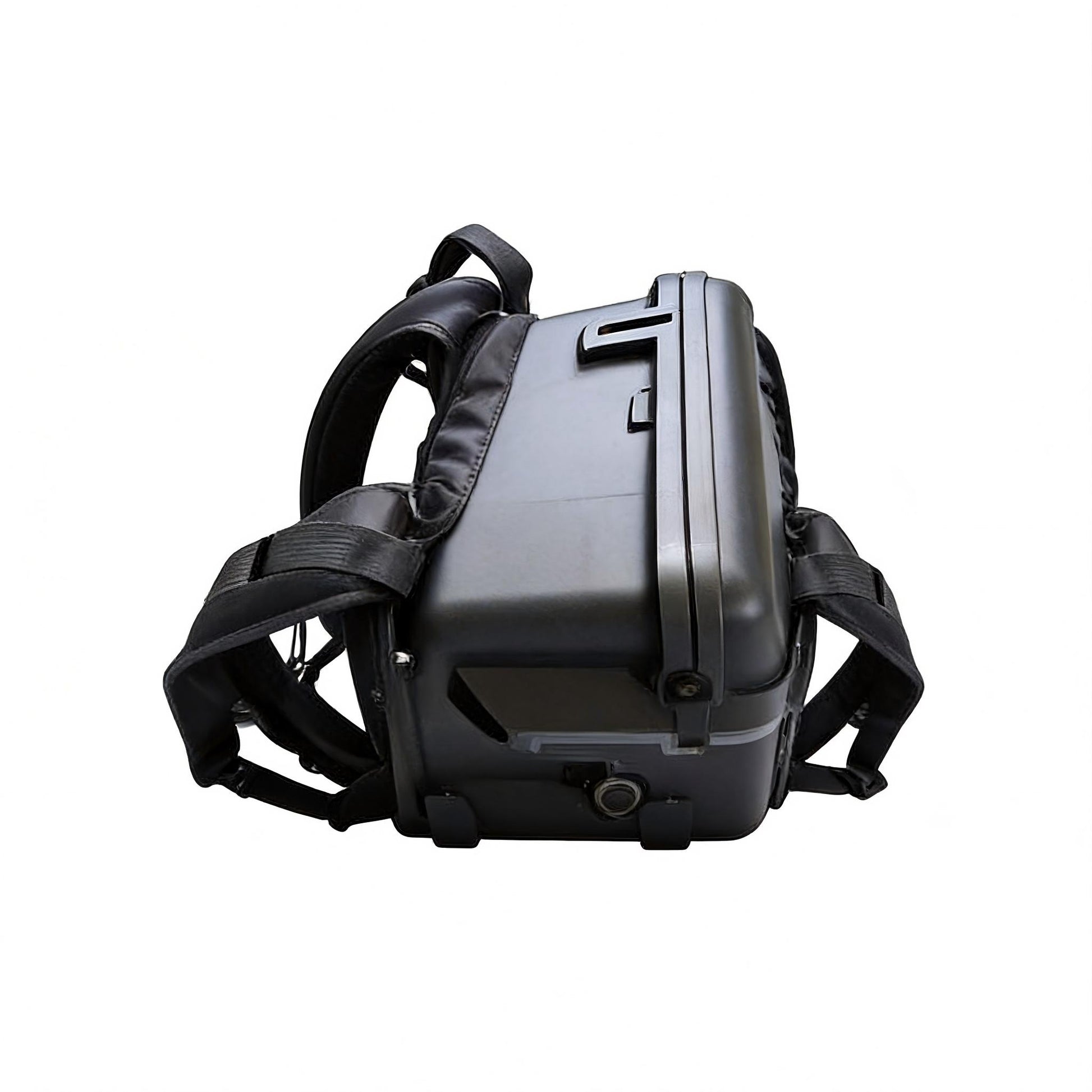

Not a benchtop analyzer in a cart — the IR850 is engineered for field deployment. Complete system in one transport case: heated sampling probe (≥180°C), 5m+ heated lines, lithium power (≥24V 55Ah), mobile workstation (i7/32G/1T), and printer. Set up at any stack in minutes, not hours.

200+ Gases, One Scan, Zero Compromise

From inorganics (SO₂, NOₓ, CO, CO₂, NH₃, HCl, HF, HCN) to VOCs (benzene, toluene, xylene, formaldehyde, chloroform) to greenhouse gases (N₂O, CH₄). No need to choose which gases to monitor — measure all simultaneously with certified ranges from ppm to percent. Custom gas configurations available.

Corrosive Environment Immunity

High-temperature acid gases (HCl, HF, SO₂) and abrasive dust destroy ordinary analyzers. The IR850's anti-corrosion coatings on all gas-contact surfaces, heated sample path (≥180°C), and three-stage filtration (0.5-5μm) ensure reliability in coal-fired power, cement, and waste incineration.

Future-Proof Investment

New emission regulations adding new gas requirements? Simply update the spectral library. The 500-5000 cm⁻¹ range captures every infrared-active compound. Add new gases to analysis without hardware changes, recalibration, or factory service visits. Protect your investment for decades.

Global Language Support

Multi-language software interface adaptable to regional requirements. Localized reporting formats for EPA (USA), EN (EU), HJ (China), or custom standards. One-click help files connect directly to service engineers for rapid technical support anywhere in the world.

From Stack to Report in Minutes

Automated pressure and temperature compensation. Built-in interference correction for complex gas matrices. Dry/wet concentration auto-conversion. Excel-compatible export for immediate report generation. Trend graphs, hourly/daily averages, and spectrum replay for complete audit trails.

Why FTIR Wins for Portable Emissions Monitoring

Traditional Portable Methods

Electrochemical sensors: Limited to 3-6 gases, cross-interference errors, frequent calibration drift, short sensor life
NDIR analyzers: One detector per gas, cannot measure VOCs, limited dynamic range
GC-MS portable: Batch analysis (5-30 min cycles), consumables (carrier gas, columns), complex maintenance
Lab sampling: Grab samples miss transient events, transport contamination risk, days for results

IR850 Mobile FT-IR

200+ gases simultaneously: Inorganics + VOCs in one scan, no compromise on coverage
Continuous real-time: 5 scans/second, capture every startup, upset, and shutdown event
Self-contained: No carrier gas, no consumables, no external power needed (battery operation)
Field-rugged: Heated sampling prevents condensation, corrosion coatings resist acid gases

Where Does the IR850 Excel?

Monitor SO₂, NO, NO₂, CO, CO₂ for emissions compliance. Track NH₃ slip from SCR/SNCR denitrification systems. Measure N₂O greenhouse gas emissions.

Why IR850: High moisture, SO₂, and NOₓ in flue gas? Heated sample path and corrosion resistance handle aggressive coal combustion emissions.

Acid gas monitoring: HCl, HF, SO₂. Dioxin precursor detection: benzene, chlorobenzene, chloroform. Complete combustion verification with CO, CO₂, O₂.

Why IR850: Corrosive, high-particulate environment with fluctuating moisture. Triple filtration and acid-resistant coatings protect the analyzer.

Kiln emission optimization with NOₓ, SO₂, CO. Alternative fuel (AF) combustion monitoring. Sinter plant and coke oven gas analysis.

Why IR850: Abrasive dust and high temperatures that clog and damage other portable analyzers. Designed for industrial harshness.

VOC leak detection: BTX, olefins, aldehydes, ketones. Process safety: HCN, phosgene, aniline. Flare gas composition and combustion efficiency.

Why IR850: Complex organic mixtures with overlapping spectra. High resolution (1 cm⁻¹ option) deconvolves interfering compounds.

Rapid deployment for accident investigation. Ambient air toxic gas monitoring. Fenceline monitoring around industrial facilities.

Why IR850: Portable power (lithium battery), rapid setup, and immediate broad-spectrum analysis for unknown contamination events.

Relative Accuracy Test Audits (RATA) for CEMS validation. Stack testing for permit compliance. Method 320 equivalency demonstrations.

Why IR850: Certified measurement uncertainty meets EPA and international requirements. Documented interference-free operation for regulatory defensibility.

200+ Customizable Gas Components

Factory-Calibrated & Customizable

The IR850 is delivered with factory calibration for 50+ priority gases, with capacity for 200+ total compounds. Custom gas configurations tailored to your specific regulatory requirements and process monitoring needs. Add new gases via software update without hardware modifications.

Inorganic Gases

SO₂, NO, NO₂, CO, CO₂
NH₃, HCl, HF, HCN
N₂O, O₂, H₂O
CS₂, SF₆, NF₃

Light Hydrocarbons

Methane, Ethane, Propane
Ethylene, Acetylene
Propylene, Butane
Cyclohexane, n-Hexane

Aromatic VOCs

Benzene, Toluene, Xylenes
Ethylbenzene, Styrene
Chlorobenzene, Nitrobenzene
Aniline, Phenol

Oxygenated Organics

Formaldehyde, Acetaldehyde
Acetone, Methanol, Ethanol
Acetic acid, Acetic anhydride
Methyl acetate, Ethyl acetate

Chlorinated Compounds

Dichloromethane, Chloroform
Carbon tetrachloride
Trichloroethylene, Perchloroethylene
Vinyl chloride, Chloroethane

Sulfur & Nitrogen Compounds

Ethanethiol, Methanethiol
Dimethyl sulfide, DMDS
Trimethylamine, Dimethylamine
Acrylonitrile, Nitrobenzene

Ethers & Ketones

Diethyl ether
Methyl ethyl ketone
Acetophenone
Furfuryl alcohol

Specialty Compounds

Phosgene (COCl₂)
Perfluoropropane
Bromoethane
Custom compounds on request

Note: Standard configuration includes 50+ quantitative gases with certified ranges. Extended library covers 200+ compounds with semi-quantitative capability. Custom gas ranges and additional compounds available upon request.
