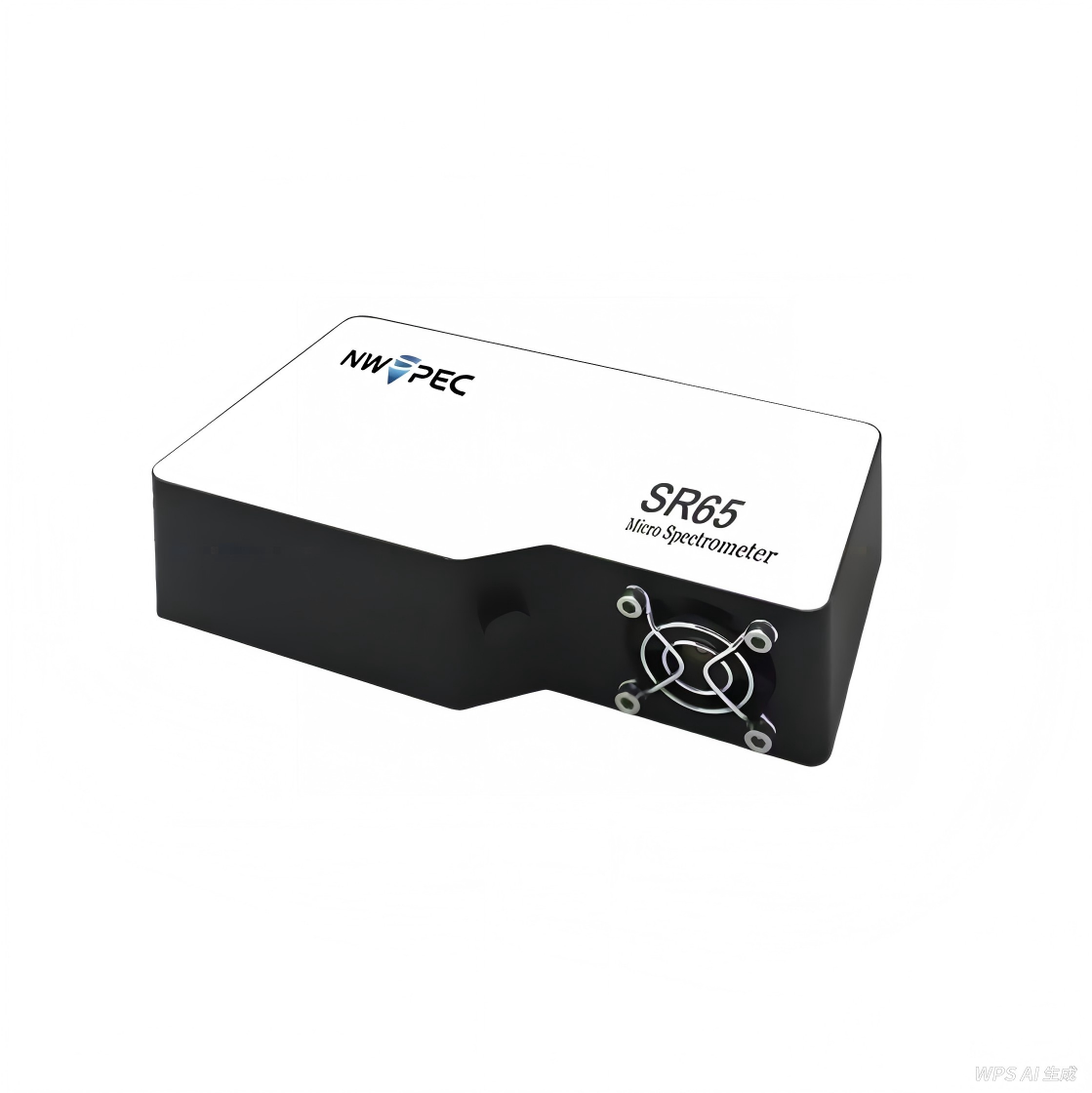

SR65 Scientific-Grade Spectrometer vs QE65
SR65 Scientific-Grade Spectrometer vs QE65
SR65: Precision Spectroscopy for Demanding Applications
New standard in miniature fiber-optic spectrometers. The SR65 combines exceptional sensitivity and stability for a wide range of demanding analytical and research applications. Featuring a low stray light optical bench, low-noise electronics, and a high quantum efficiency back-illuminated CCD detector.
Its deep-cooled CCD, capable of thermoelectric cooling up to 40°C below ambient, significantly reduces dark current and thermal noise, enabling extended integration times and improved detection limits. Ideal for low-light level applications and environments with fluctuating temperatures.
Product Highlights
- High Signal-to-Noise Ratio: Ensures accurate and reproducible measurements, even for weak signals
- Deep-Cooled CCD Detector: Minimizes thermal noise, enabling longer integration times and enhanced sensitivity
- Back-Illuminated CCD: Maximizes light collection efficiency, providing superior sensitivity across the spectral range
- Enhanced UV Response: Extends spectral coverage into the UV region for a broader range of applications
- Low Stray Light Optical Design: Reduces background noise, improving accuracy in complex spectral environments
- Compact and Robust Design: Provides portability and reliable performance in both laboratory and field settings
- Versatile Software Suite: Offers comprehensive tools for data acquisition, processing, analysis, and instrument control
Applications
Advanced Spectroscopy
- Fluorescence Spectroscopy: High-sensitivity detection and quantification of fluorophores in diverse samples
- Raman Spectroscopy: Molecular fingerprinting for material identification, structural analysis, and chemical process monitoring
- Microscopy Spectroscopy: Spectral characterization of microscopic features in materials and biological samples
- Astronomy: Low-light level detection and spectral analysis of celestial objects
Research & Analysis
- Environmental Monitoring: Detection and quantification of pollutants in water, air, and soil
- Materials Science: Characterization of optical properties, thin film analysis, and material composition determination
- General Spectroscopy: A versatile platform for absorbance, transmission, reflection, and emission measurements in a wide variety of laboratory applications
Key Features
Detector Technology
- High Signal-to-Noise Ratio (SNR): Ensures accurate and reproducible measurements, even for weak signals
- Deep-Cooled CCD Detector: Thermoelectric cooling up to 40°C below ambient minimizes thermal noise, enabling longer integration times and enhanced sensitivity
- Back-Illuminated CCD: Maximizes light collection efficiency, providing superior sensitivity across the spectral range
- Enhanced UV Response: Extends spectral coverage into the UV region for a broader range of applications
Optical & System Design
- Low Stray Light Optical Design: Reduces background noise, improving accuracy in complex spectral environments
- Compact and Robust Design: Provides portability and reliable performance in both laboratory and field settings
- Versatile Software Suite: Offers comprehensive tools for data acquisition, processing, analysis, and instrument control
Technical Specifications
| Spectral Features | |
|---|---|
| Wavelength Range | 200 - 1100 nm (depending on model) |
| Wavelength Resolution | Up to 0.3 nm |
| Optical Resolution | Up to 0.5 nm FWHM (depending on model) |
| Higher-Order Diffraction Filter | Additional Higher-Order Diffraction Filter (Optional) |
| Stray Light | < 0.1% |
| Detector Specifications | |
|---|---|
| Detector Type | Hamamatsu CCD area array sensor |
| Detector Wavelength Range | 200 - 1100 nm |
| Pixel Count | 1024 pixels |
| Pixel Size | 24 × 24 × 58 μm |
| High Sensitivity | 2.2 μV/e⁻ |
| Max Speed | 1 MHz |
| Optical Platform | |
|---|---|
| Optical Path | F/4, Symmetrical Crossed Czerny-Turner |
| Focal Length | 100 mm; 110 mm |
| Input Slit | Standard 70 μm (optional) |
| Optical Fiber | SMA905, 0.22 NA |
| Electrical Features | |
|---|---|
| Signal-to-Noise Ratio | 1000:1 |
| Linearity | > 99.8% |
| Integration Time | 3.6 ms - 15 min |
| Dynamic Range | 2,000,000 |
| AD Conversion | Lossless 16-bit |
| Testing Speed | 12 ms + integration time |
| Communication Interface | USB 2.0 |
| Expansion Interface | 16-PIN external expansion; supports external trigger |
| Power Consumption | 450 mA @ 5 V DC |
| Power Supply | 4 A @ 5 V DC |
| Physical Specifications | |
|---|---|
| Supported Systems | Windows |
| Dimensions (L × W × H) | 182 × 110 × 50 mm (7.2 × 4.3 × 2.0 inches) |
| Weight | 1600 g (3.53 lb) |
| Mounting | 3-direction standard mounting holes |
