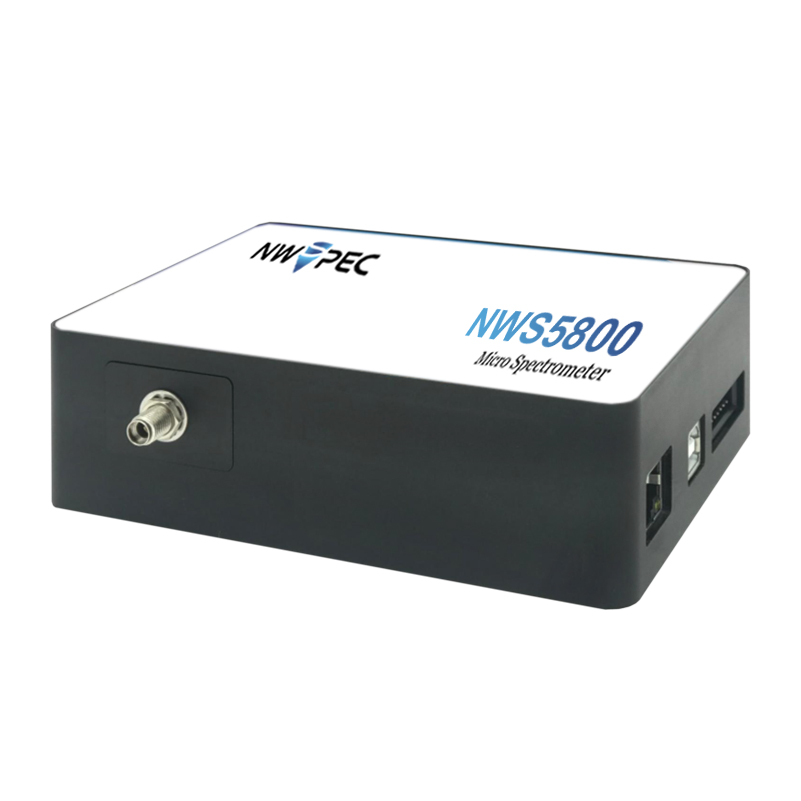

NWS5800 Spectrometer
NWS5800 Spectrometer
Regular price
$3,000.00 USD
Regular price
$5,000.00 USD
Sale price
$3,000.00 USD
Unit price
per
Couldn't load pickup availability
Description
The series of micro spectrometers is a network port version of spectrometer developed specifically for industrial on-site testing and applications requiring long-distance communication transmission. It supports three communication methods: Ethernet, USB, and serial port. When using Ethernet communication, multiple devices can be integrated through a switch, with a maximum of 100 devices being able to be used simultaneously online, making it highly suitable for multi-channel testing requirements.
Application
- Semiconductor testing
- Film thickness measurement
- Light intensity detection
- Online component detection in biomedicine
- Fruit sugar content detection
- Teaching and research
Features
- Low drift
- Low stray light
- Higher cost performance
- Network interface communication
- Long-distance data transmission
- Multiple integration capabilities
Resolution
| Spectral Range (nm) | Optical Resolution (nm) | Slit Width: 30 µm | Slit Width: 40 µm | Slit Width: 50 µm | Slit Width: 60 µm | Slit Width: 70 µm | Slit Width: 100 µm | Slit Width: 150 µm | Slit Width: 200 µm |
|---|---|---|---|---|---|---|---|---|---|
| 200 - 500 | 0.80 | 0.80 | 1.00 | 1.10 | 1.20 | 1.40 | 2.10 | 3.00 | 4.00 |
| 350 - 950 | 1.20 | 1.20 | 2.00 | 2.20 | 2.40 | 2.80 | 3.80 | 5.80 | 7.70 |
| 350 - 1100 | 1.70 | 1.70 | 2.20 | 2.70 | 3.20 | 3.60 | 5.00 | 7.20 | 9.70 |
Spectral Specification |
|
| Spectral Range | 200- 1100nm (according to the selection table) |
| Spectral Resolution | Maximum 0.17nm |
| Optical Resolution | Maximum 0.8nm FWHM (according to the selection table) |
| Higher-Order Diffraction | Add high-order diffraction suppression filter (optional) |
| Stray Light | < 0.1% |
| Detector | |
| Detector Model | Hamamatsu CMOS Linear Array Sensor |
| Spectral Detection Range | 200~1100nm |
| Pixel | 2048 pixels |
| Pixel Size | 14*200um |
| High Sensitivity | 1300V(Ix*s) |
| Fastest Speed | 10M |
| Optical Table | |
| Optical Path | F/4, symmetrical crossed Czermy-Turner optical path |
| Focal Length | 70mm, 90mm |
| Incident Slit | Standard 70um (optional) |
| Optical Fiber | SMA905 0.22NA |
| Electrical Specification | |
| Signal-to-Noise Ratio | 430:1 |
| Linearity | >99% |
| Integration Time | 0.4ms~1000ms |
| Dynamic Range | 1500 : 1 |
| AD | No distortion 16-bit |
| Test Speed | 2.8ms + integration time for USB 3.3ms+ integration time for Erthernet |
| Communication Interface | USB 2.0, RS232, RS485 |
| Power Consumption | 16-pin external expansion interface; with external trigger function |
| Cooling | 300mA@5VDC |
| Other Characteristics | |
| Support System | Windows, Android, Linux, Wince |
| Dimensions | 127.4mm*98mm*40mm |
| Weight | 800g |
| Fixed | 3-direction standard installation holes |
Note: optical resolution refer to FWHM at 253.7nm.
