SR58 Spectrometer for Ethernet 100-channel testing
SR58 Spectrometer for Ethernet 100-channel testing
Request for Quote
Regular price
Sale price
$1,600.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

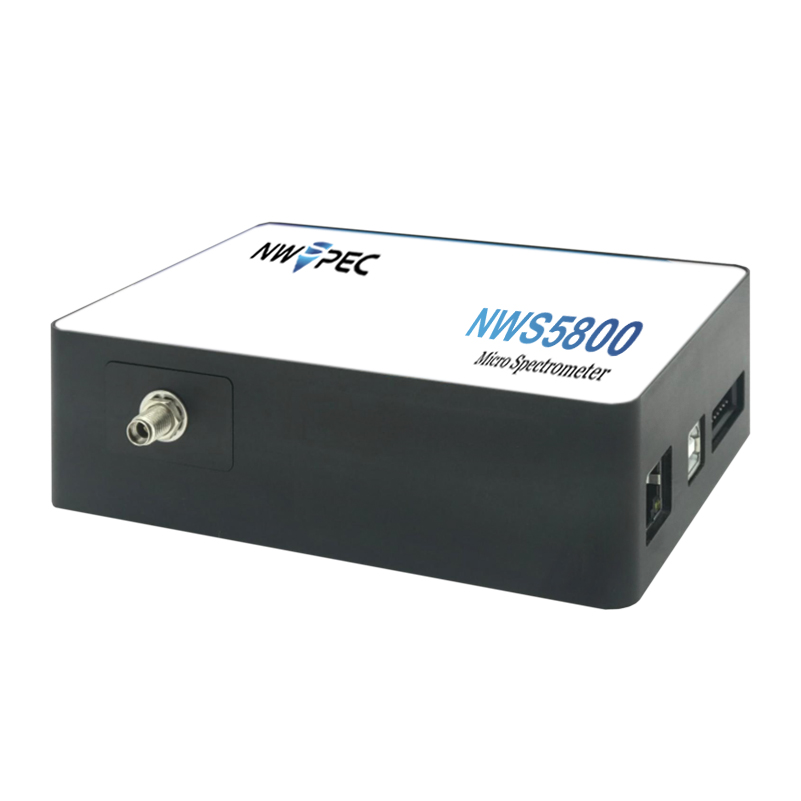

SR58 Network Micro Optical Fiber Spectrometer
Application Order Guide
Ethernet-enabled spectrometer for multi-unit remote monitoring. Supports up to 100 units online simultaneously via network switch integration. Ideal for distributed testing and multi-channel applications.
SR58 Key Advantages
Network Communication Ethernet, USB, and serial (RS232/RS485) support. Remote operation over long distances.
Multi-Unit Integration Up to 100 units simultaneously online via network switch. Perfect for multi-channel testing.
Industrial Stability Low temperature drift. Low stray light. High SNR: 430:1. Dynamic range: 1500:1.
Extended Range 200-1100nm with 2048 pixels. Resolution: ~0.8nm FWHM. 10M data output.
1
Select Application Type
Match your measurement need to the recommended system configuration
Semiconductor / Wafer Testing
Multi-point spectral monitoring for wafer production lines with centralized data collection over network.
Multi-unit synchronized measurement Applications: Film thickness, defect detection, doping Recommended: UV-Vis + Tungsten + Reflection Probe + Network Hub
Film Thickness Measurement
Non-contact thin film characterization for coatings, semiconductors, and optical layers using interference analysis.
High resolution for interference fringes Applications: AR coatings, display films, solar panels Recommended: High-Res + Tungsten + Film Test Platform + Advanced Software
Headlight / Lamp Brightness
Automotive and industrial lamp characterization for luminous intensity, color, and spectral compliance testing.
CIE-compliant photometric measurement Applications: Automotive headlamps, traffic lights, industrial lighting Recommended: UV-Vis + Standard Source + Integrating Sphere + Precision DC Power
Biomedical / Online Composition
Real-time biochemical analysis for pharmaceutical production, fermentation monitoring, and process analytical technology (PAT).
Online continuous monitoring capability Applications: Bioreactors, drug synthesis, quality control Recommended: UV-Vis + D2/W + Dip Probe + Network Integration
Fruit / Sugar Content Detection
Non-destructive NIR analysis for fruit ripeness, sugar content (Brix), and internal quality assessment.
NIR reflectance for internal composition Applications: Agriculture QC, sorting lines, harvest timing Recommended: UV-NIR + Tungsten + Reflection Probe + Advanced Software
Multi-Channel Industrial Integration
Distributed spectroscopic monitoring across production lines with centralized control and data logging.
Up to 100 units via network switch Applications: Process control, environmental monitoring, quality stations Recommended: Custom config + SDK + Network Switch + Multi-unit License
Education / Research
Network-based teaching laboratory with multiple student stations sharing centralized instrument resources.
Multi-student access to shared instruments Applications: University labs, research institutes Recommended: UV-Vis + D2/W + Standard Fiber + Basic Software
2
Select Spectrometer Core
Detector type and wavelength range
| Configuration | Specifications | Code | Best For |
|---|---|---|---|
| UV-Vis (200-850nm) | 2048-pixel CMOS linear sensor. Resolution ~0.8nm FWHM. Integration: 0.4ms-1000ms. SNR: 430:1. Dynamic range: 1500:1. | UVV | Semiconductor, biomedical, education |
| UV-NIR (200-1100nm) | 2048-pixel CMOS linear sensor. Resolution ~1.2nm FWHM. Extended NIR sensitivity. Integration: 0.4ms-1000ms. | UVN | Fruit detection, full-range analysis, multi-channel |
| High Resolution (UV-Vis) | 2048-pixel CMOS with enhanced resolution. ~0.17nm wavelength resolution. ~0.8nm optical resolution. Maximum precision for film thickness. | HRS | Film thickness, precision research, laser characterization |
Optical Platform Note All configurations use F/4 symmetric crossed Czerny-Turner optical path. Focal length options: 70mm or 90mm. Standard slit: 70μm (customizable). Fiber interface: SMA905, 0.22NA. Size: 127.4×98×40mm, 800g.
3
Select Light Source
Illumination matched to your wavelength range and application
| Source | Specifications | Code | Best For |
|---|---|---|---|
| Deuterium + Tungsten (D2/W) | Full UV-Vis-NIR coverage: 200-1100nm. Output stability: ±0.5%. Combined broad-spectrum output. | D2W | Biomedical, general spectroscopy, education |
| Tungsten-Halogen (Vis-NIR) | Economical visible to NIR: 350-2500nm. High output in NIR region. Stable thermal output for reflectance. | THL | Film thickness, fruit detection, reflectance |
| Standard Light Source | Calibrated reference source for photometric and colorimetric standardization. Traceable calibration. | STD | Headlight testing, lamp characterization, metrology |
| Precision DC Power Supply | Stable current/voltage source for driving test lamps and LEDs with precise control and monitoring. | DCP | Lamp testing, LED characterization, electrical testing |
4
Select Fiber & Sampling Accessories
Probes, optics, and interfaces for your sample type
Standard Fiber Bundle
General-purpose fiber optic cable for standard laboratory and industrial setups.
Core diameter: 400μm, 600μm, or 1000μm Length: 1m, 2m, or custom Connector: SMA905 Code: FIB
Reflection / Backscatter Probe
Y-type probe for diffuse reflectance and backscatter measurements on solid samples and films.
6-around-1 fiber configuration Optional focusing lens tip Best for: Wafer, film, fruit, powders Code: RFP
Immersion / Dip Probe
Submersible probe for direct liquid transmission and online biomedical process monitoring.
Pathlength: 2mm, 5mm, or 10mm Material: Stainless steel / Hastelloy Best for: Bioreactors, chemicals, process streams Code: DIP
Integrating Sphere
Uniform light collection for total flux, diffuse reflectance, and lamp color measurements.
Diameter: 38mm or 50mm Coating: PTFE (Spectralon equivalent) Best for: LED testing, lamp analysis, color Code: ISP
Film Thickness Test Platform
Precision stage and optics for thin film interference measurement and thickness calculation.
Adjustable angle and position Software database for common film materials Best for: Semiconductor films, optical coatings Code: FTP
Network Switch / Hub
Industrial Ethernet switch for connecting multiple SR58 units in multi-channel configurations.
Ports: 8, 16, 24, or 48 port options Management: Web-based or CLI Best for: Multi-unit systems, production lines Code: NSW
Optical Attenuator
Adjustable neutral density filter for controlling light intensity and preventing detector saturation.
Attenuation: Variable or fixed ND filters Mount: Standard optical mount Best for: High-intensity sources, lamp testing Code: ATT
Fruit Sampling Fixture
Non-destructive holder for consistent fruit positioning during NIR reflectance measurement.
Adjustable for various fruit sizes Consistent probe-to-sample distance Best for: Apples, citrus, stone fruits Code: FSF
5
Select Software Package
Control and analysis software level
| Package | Features | Code | Best For |
|---|---|---|---|
| Basic Control | Real-time spectral display, data acquisition, basic math, export to CSV/TXT/SPC. Network device discovery and connection. | BAS | Standard laboratory use, teaching, single-unit |
| Advanced Analysis | Full color analysis (CCT, CRI, CQS). Film thickness calculation. Fruit Brix prediction. Multi-unit monitoring dashboard. Report generation. Software database for materials. | ADV | Film thickness, fruit detection, lamp testing, multi-unit |
| SDK / API | Full hardware control API with network protocol support. Cross-platform: C++, C#, Python, LabVIEW. Multi-unit synchronization. Example code included. OEM licensing. | SDK | System integrators, OEM partners, multi-unit automation |
Operating System Support Software compatible with Windows, Android, Linux, and Wince. Communication interfaces: Ethernet (primary), USB 2.0, RS232, RS485. Extended 16-pin port with external trigger capability. Multi-unit license available for 8, 16, 32, 64, or 100 units.
6
Model Naming Reference
How to construct your complete order code
| Position | Component | Available Codes |
|---|---|---|
| Base | Platform | SR58 |
| 1 | Application Type | SCM / FIL / LMP / BIO / FRT / MCH / EDU |
| 2 | Spectrometer | UVV / UVN / HRS |
| 3 | Light Source | D2W / THL / STD / DCP |
| 4 | Fiber / Accessory | FIB / RFP / DIP / ISP / FTP / NSW / ATT / FSF |
| 5 | Software | BAS / ADV / SDK |
EXAMPLE CONFIGURATION
SR58-FIL-HRS-THL-FTP-ADV
Film thickness measurement — High-Resolution spectrometer — Tungsten source — Film Test Platform — Advanced software with thickness module
EXAMPLE CONFIGURATION
SR58-MCH-UVN-D2W-NSW-SDK
Multi-channel industrial — UV-NIR spectrometer — D2/W source — Network Switch — SDK for multi-unit integration (license for 32 units)
Lead Time Standard configurations: 2 weeks from order confirmation. Multi-unit systems and network integration projects may require additional time — confirm with sales when ordering.
Customization & OEM Services Special wavelength ranges, resolution requirements, mechanical configurations, multi-unit licenses, and private labeling are available upon request.
Request a Quotation
Provide your configuration code or application requirements. Our team will confirm specifications, pricing, and lead time (typically 2 weeks) within 24 hours.
