Microvolume UV-Vis Spectrophotometer for DNA, RNA & Protein Quantification | Vision 8041
Microvolume UV-Vis Spectrophotometer for DNA, RNA & Protein Quantification | Vision 8041
Maximum data. Minimum sample. Zero compromise.
The Vision 8041 redefines microvolume spectroscopy with stand-alone touchscreen operation and dual-mode flexibility. Requiring only 0.5–2 µL of sample, this compact instrument delivers research-grade precision across the full 190–1100 nm UV-Vis-NIR spectrum—no cuvettes required, no external PC needed, and results in under 4 seconds.
Key Advantages
- Stand-Alone Operation: Integrated 7-inch color touchscreen interface—no external computer or separate software license required.
- Dual Measurement Modes: Direct microvolume pedestal (0.5–2 µL) plus standard 10 mm cuvette port in a single instrument.
- Ultra-Wide Dynamic Range: Quantify dsDNA from 2 ng/µL up to 37,500 ng/µL without manual dilution.
- Instant Xenon Flash Light: No warmup required—instant boot and high-throughput spectral scans in 5 seconds.
- High Spectral Resolution: 2048-element linear CMOS array providing 0.3 nm resolution and ±1 nm accuracy.
- Sample Protection: Magnetic light-blocking cap prevents ambient interference and sample evaporation.
Dual-Mode Measurement Capability

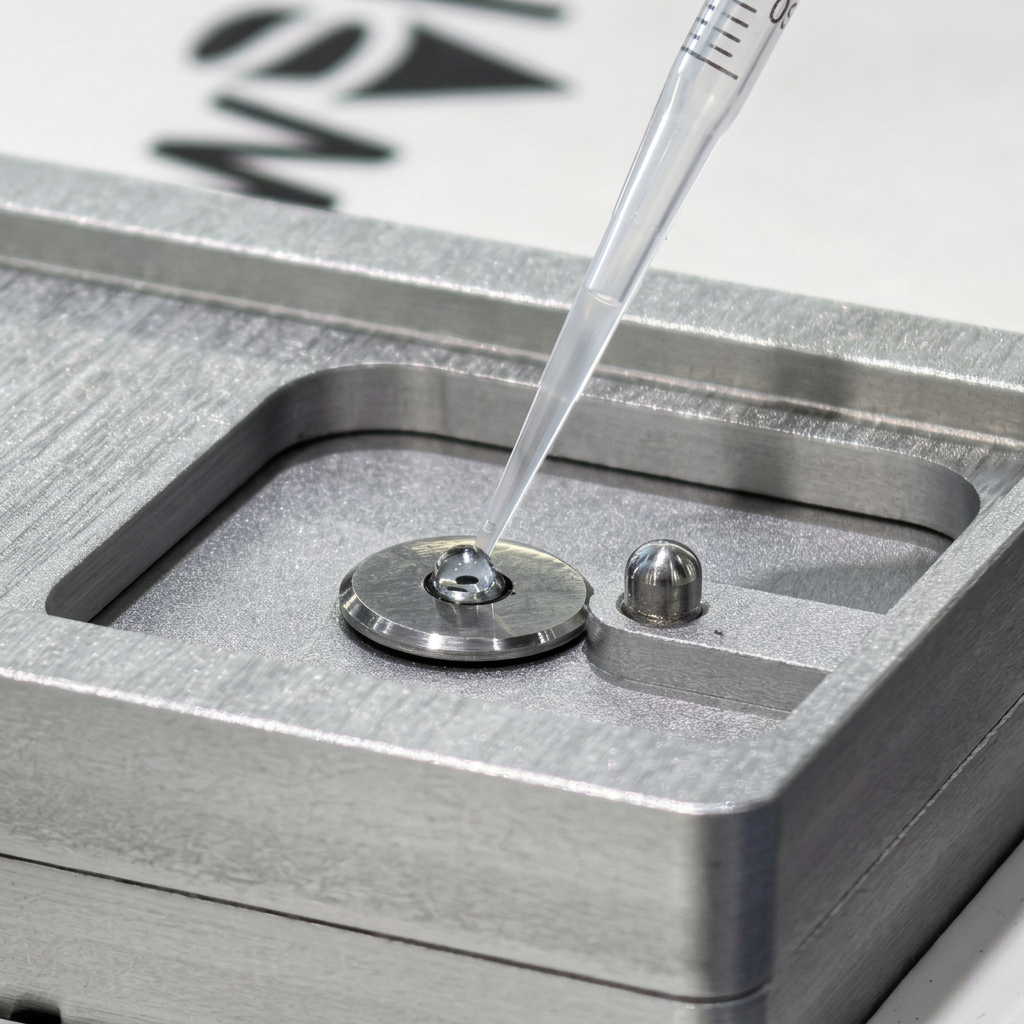

Pipette 0.5–2 µL directly onto the pedestal. Surface tension forms a liquid column between the optical pins. Ideal for precious nucleic acid extracts, purified proteins, and small-volume samples without dilution.
Built-in cuvette holder accommodates standard 10 mm pathlength cuvettes and microcuvettes for kinetics, bacterial OD600 growth monitoring, and low-concentration colorimetric assays.
Applications
Accurate concentration and purity assessment (A260/A280, A260/A230 ratios) for genomic DNA, plasmid DNA, RNA, and oligonucleotides.
Direct A280 absorbance for purified proteins, as well as colorimetric assays including Bradford, BCA, and Lowry methods.
Fast optical density measurements at 600 nm for monitoring bacterial and yeast culture growth phases.
Continuous spectral scans from 190 to 1100 nm for identifying unknowns, checking sample purity, and running time-course reactions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Instrument Type | Microvolume UV-Vis spectrophotometer (Dual-mode pedestal & cuvette) |
| Wavelength Range | 190 – 1100 nm (Full UV-Vis-NIR) |
| Wavelength Accuracy | ±1 nm |
| Spectral Resolution | 0.3 nm |
| Light Source | Xenon flash lamp (Instant-on, no warmup) |
| Detector | CMOS 2048-pixel linear array |
| Microvolume Sample Size | 0.5 – 2 µL |
| Path Lengths | 0.02 mm, 0.2 mm, 1 mm (automatic switching) |
| dsDNA Detection Range | 2 ng/µL – 37,500 ng/µL |
| Absorbance Range | 0 to 750 Abs |
| Measurement Speed | < 4 seconds (pedestal and cuvette) |
| Full Spectrum Scan | 5 seconds (190 – 1100 nm) |
| Display & Control | 7.0-inch LCD touchscreen (Stand-alone operation) |
| Data Export | USB ports for direct file transfer |
| Dimensions & Weight | 235 × 295 × 200 mm | 5 kg (Compact benchtop) |
| Power Supply | 100–240 VAC, 50/60 Hz, 80–100 W |
