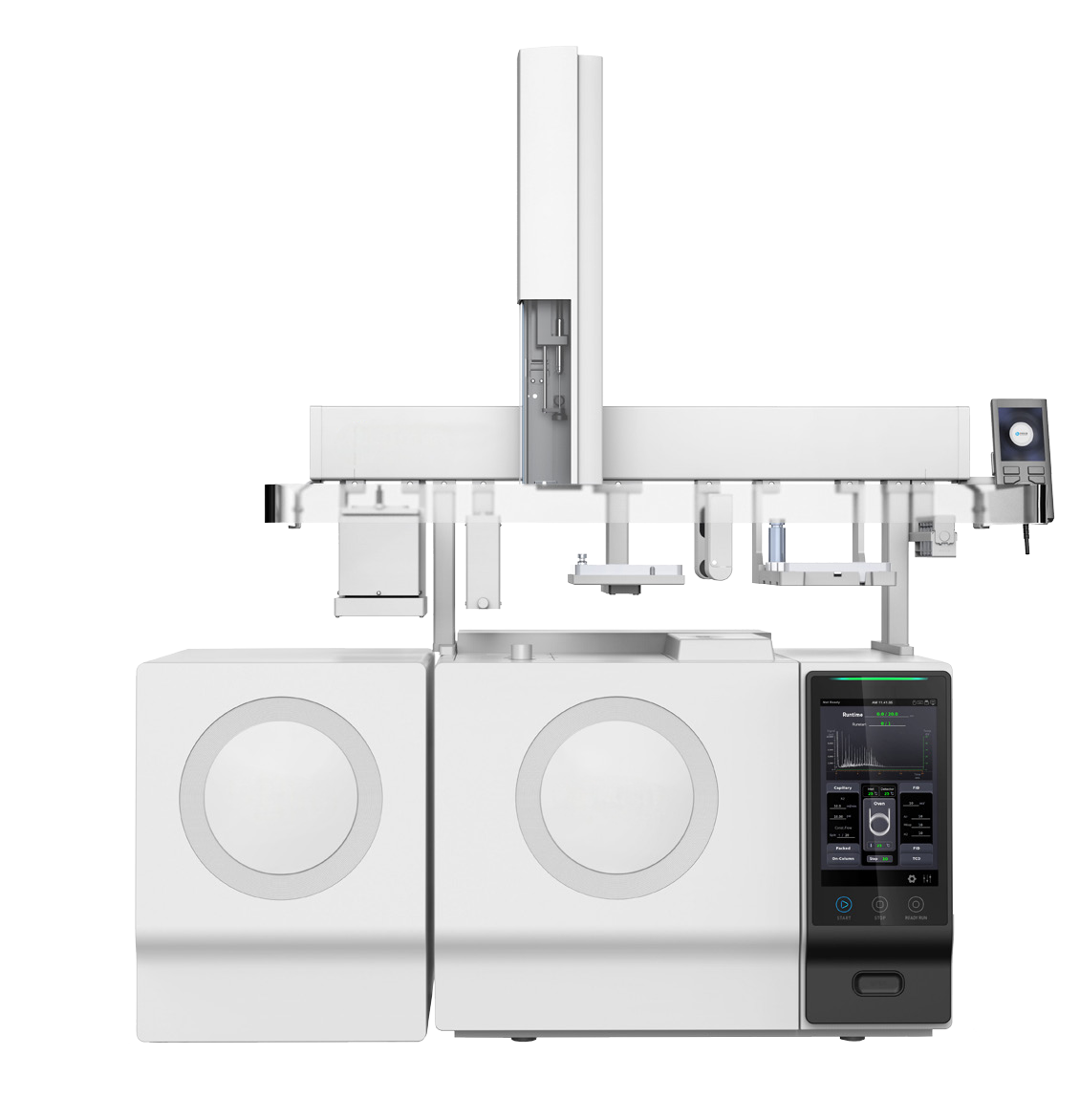

GC-MS 8000

Description
The GCMS 8000 is a next-generation gas chromatograph–mass spectrometer system designed by experts with over 30 years of GC–MS development experience. It delivers ultra-fast spectral acquisition (up to 20,000 amu/s), a broad mass range (1–1,200 amu), and exceptional sensitivity (IDL < 10 fg OFN), packaged within an intuitive, automated, and highly reliable platform.
Features
Ion Source & Tuning
High-performance dual-filament Electron Ionization (EI) source with optional Chemical Ionization (CI) or Direct Injection Probe (DIP)
Extended filament life achieved via optimized electron beam protocols
Robust tuning routines enhance sensitivity, reproducibility, and signal stability

Spectral Performance
Scan speed up to 20,000 amu/s, ideal for fast capillary separations
Mass range from 1–1,200 amu, supporting analysis of volatile to semi-volatile analytes
IDL < 10 fg (OFN) with S/N > 1,500:1 under SIM mode
Neutral particle deflection improves signal-to-noise ratio and sensitivity

Vacuum & Detector System
High-capacity turbo-molecular pump (standard 240 L/s; optional 300 L/s)
Multi-stage filtration and detection system achieves clean, stable vacuum and high throughput
Detector dynamic range: ×10⁶ with rapid response times

GC Pneumatics & Oven
Full electronic pneumatic control (EPC) with dual-column inlet handling
Pressure control accuracy: ±0.001 psi; resolution: 0.001 psi
Four operational modes: constant pressure, constant flow, pressure programming (5-step), and flow programming (5-step)
Oven: 14 L volume, temperature range from ambient +4 °C to 450 °C (with cryo trap options), 26 ramp steps, stability ±0.01 °C, max ramp rate 120 °C/min

Detectors (Up to 3)
FID: IDL 1.5 pg C/s; max temp 450 °C; linearity 10⁷
TCD: IDL 2.5 ng/mL (std), 400 pg/mL (µTCD); max temp 400 °C
ECD: IDL 4 fg/s; max temp 400 °C; linearity >10⁴
NPD: IDL <0.2 pg N/s (<0.02 pg P/s); max temp 400 °C; linearity >10⁴
FPD: MDL ≤45 fg P/s; ≤2.5 pg S/s; max temp 300 °C

User Interface & Automation
5.7″ tactile color LCD for system control
Clarity/AutoChro 3000 workstation with 21 CFR Part 11 compliance
Supports up to 4 GCs and 12 detectors on one software platform
User roles, audit trails, secure e-signatures, and qualification protocols

Specification
Mass Range                     1–1,200 amu
Mass Resolution              0.7 amu
Scan Speed                      Up to 20,000 amu/s
Mass Stability                  ±0.1 amu over 48 h
Ion Source Energy           0–240 eV (adjustable)
Ion Source Temp              Max 350 °C
Transfer Line Temp           Max 400 °C
Turbo Pump                     240 L/s standard; 300 L/s optional
S/N (SIM)                          >1,500:1 (1 pg/µL OFN, 1 µL injection)
IDL (SIM)                          <10 fg
Voltage / Power                220 V ±10%, 50/60 Hz; Max 900 W
Dimensions                       Approx. 350 × 650 × 500 mm
Weight                               ~48 kg
Data Communication        LAN
Scan Modes                      Full scan, SIM, Alternate scan
Operating Environment    Standard lab bench setup required
