Mobile Raman Spectrometer
Mobile Raman Spectrometer
Couldn't load pickup availability
Description

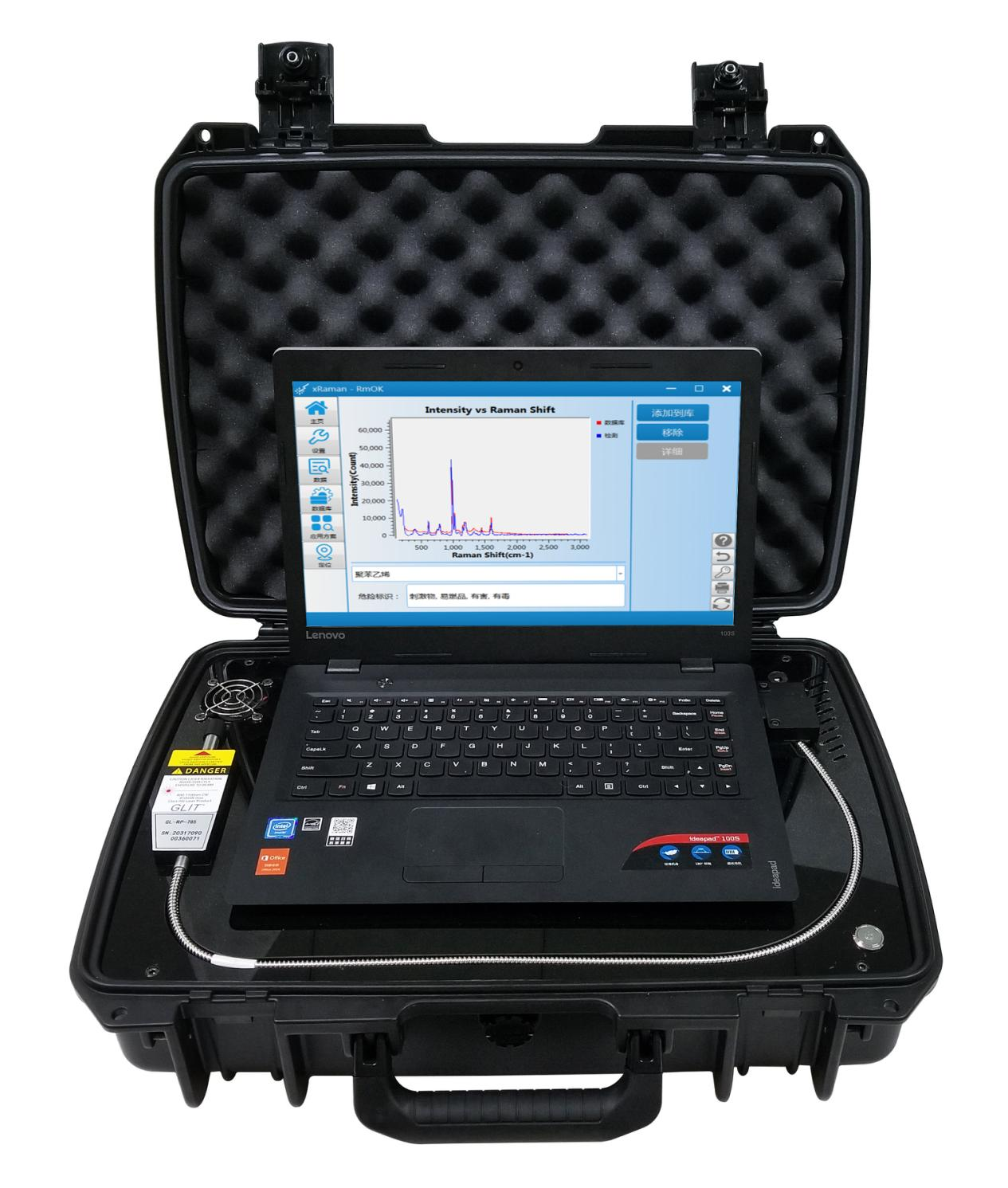

Raman Spectrometer utilizes a 785 nm laser as the excitation light source and a fiber optic spectrometer as the Raman signal detection module. Its unique optical design ensures the Raman probe effectively eliminates stray light, resulting in high signal-to-noise ratio (SNR) Raman signals. The Raman probe is connected to the 785 nm laser and spectrometer via optical fibers. The controlling computer is mounted in the upper part of the instrument case. The 785 software allows for laser control, Raman signal detection, database management, and material analysis. 785nm Raman Spectrometer is a compact, user-friendly, high-performance Raman spectrometer suitable for a wide range of non-contact measurements.
Applications
• Security screening (e.g., drugs, hazardous materials, and biochemical detection)
• Food/Pharmaceutical identification (e.g., illegal additives, raw pharmaceutical ingredients, counterfeit drugs, herbal medicine composition)
• Gemstone and artifact authentication (e.g., non-destructive analysis of authenticity and age)
• Medical applications (e.g., DNA identification, human metabolites, cancer cell identification)
• Research and development
Technical Specifications
|
Function |
Parameter |
|
Excitation Wavelength |
785 nm (customizable) |
|
Probe Output Power |
0–350 mW |
|
Probe Power Transmission Efficiency |
70%–80% |
|
Probe Fiber |
1 m armored |
|
Raman Spectral Range |
200–3100 cm⁻¹ |
|
Spectral Resolution |
6 cm⁻¹ @ Hg 912 nm |
|
Stray Light |
0.31% @ 785 nm |
|
Detector |
High-performance detector |
|
Pixel Count |
2048 |
|
Pixel Size |
8 µm × 200 µm |
|
Signal-to-Noise Ratio |
440:1 @ Benzonitrile 1000.7 cm⁻¹ |
|
AD Conversion Resolution |
16 bits |
|
Integration Time |
1 ms – 15 min |
|
Power Consumption |
12 DCV @ 5A |
|
Dimensions |
508 mm × 373 mm × 147 mm |
|
Weight |
~6 kg |
|
Operating Temperature |
0°C – 45°C |
|
Storage Temperature |
-10°C – 55°C |
