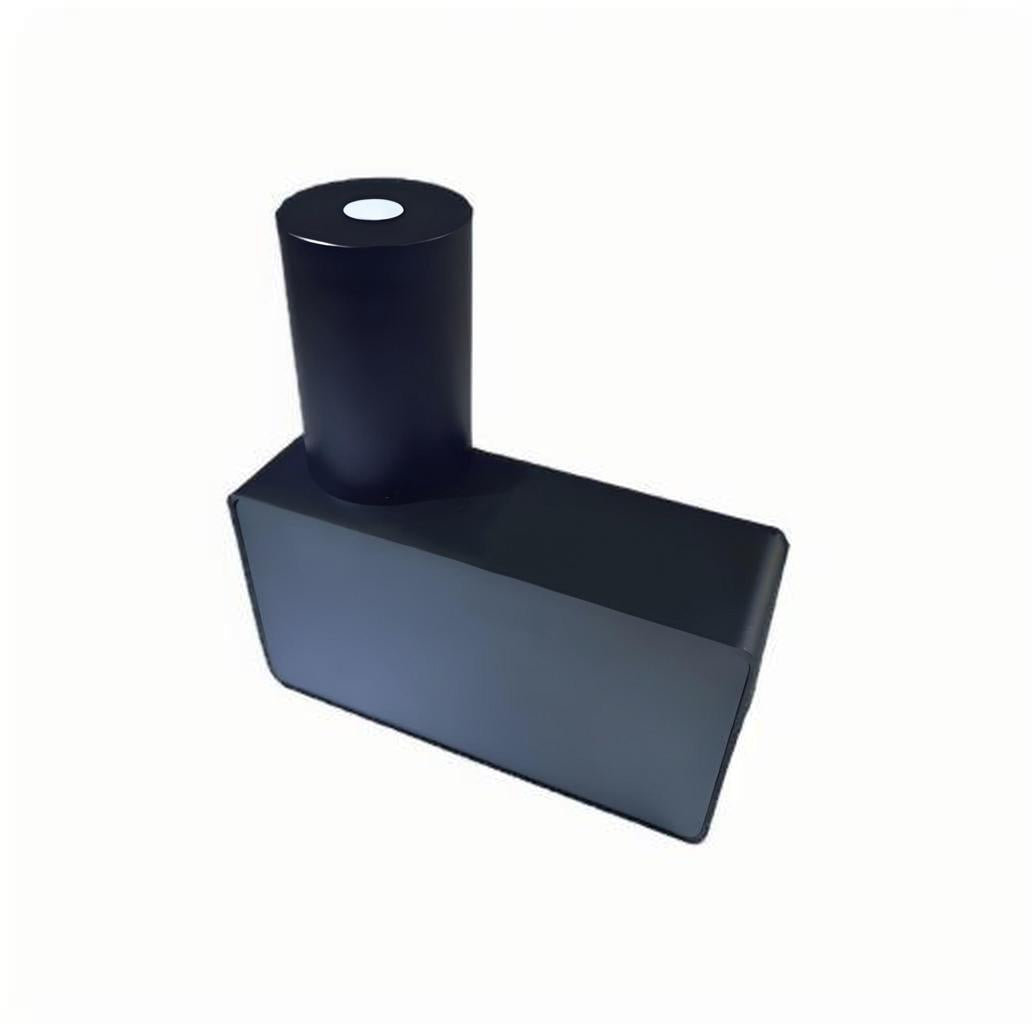

NWH1022 Spectral Illuminance Tester
NWH1022 Spectral Illuminance Tester
Couldn't load pickup availability
Description
The NWH1022 spectral illuminance tester is a specialized instrument for measuring the intensity of light on the surface of objects. It assesses the lighting effect by measuring the ratio of the luminous flux received by the object's surface to the illuminated area (unit: Lux). Its core function is to ensure that the lighting environment meets human comfort or industrial standards, such as preventing fatigue or accidents caused by insufficient light. It is used to quantify the degree of illumination and is widely applied in environmental monitoring, engineering acceptance, and laboratory research, among other fields.
Application
l Building lighting assessment
l Teaching and research
l Industrial and production environment detection
l Scientific research and laboratory
l Public place acceptance
Features
l Wide measurement range
l High measurement accuracy
l Ultra-fast measurement in milliseconds
l Small size, convenient and quick operation
l Full-spectrum curve display
Technical Specifications
|
Spectral Range |
350~950nm |
|
Wavelength Accuracy |
± 0.3nm |
|
Illuminance Accuracy |
< 4% |
|
Stray Light |
< 0.1% |
|
Integration Time |
0.4ms~1000ms |
|
Illuminance Range |
1lux~10000lux |
|
Correlated Color Temperature Range |
1000k~100000k |
|
Chromaticity Coordinate Standard Accuracy |
± 0.003 |
|
Power Supply Method |
USB Power Supply |
|
Communication Interface |
USB2.0 |
|
Weight |
700g |
