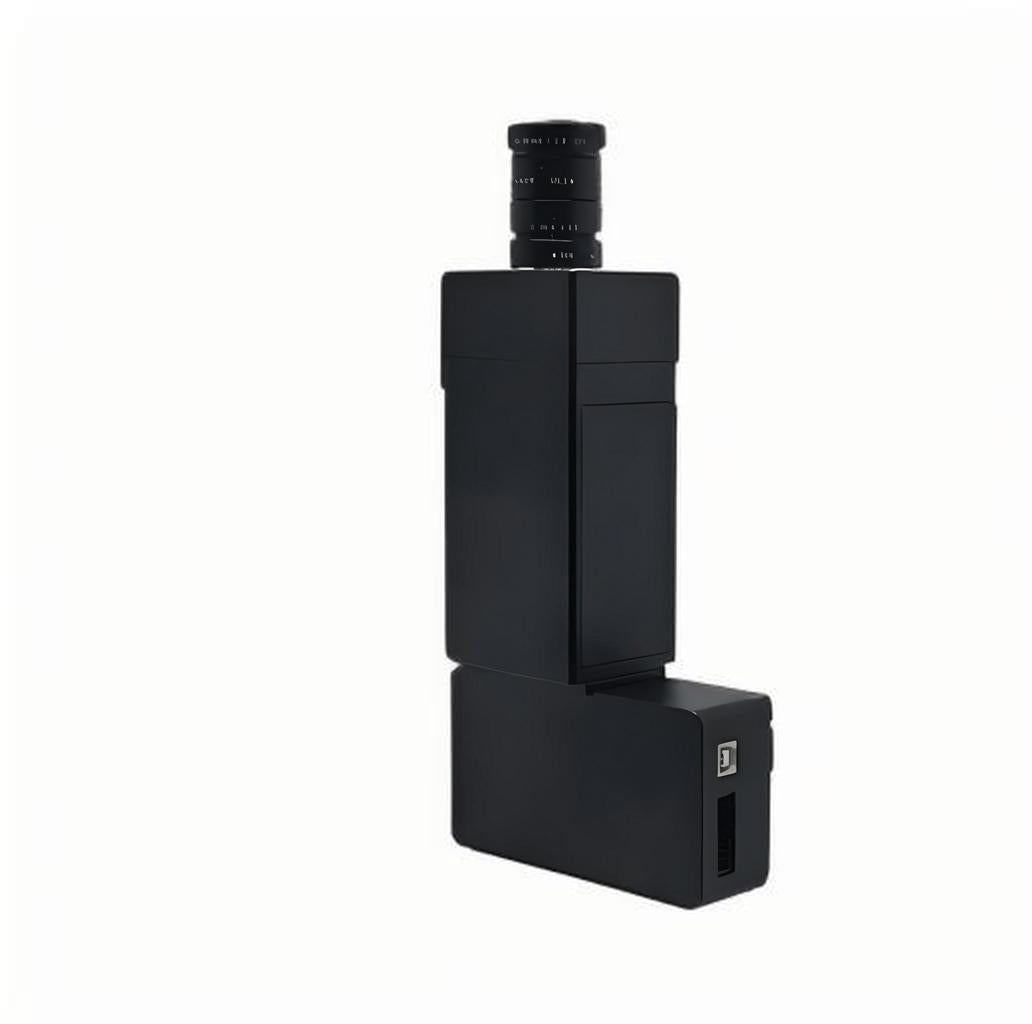

NWH1026/NWH1027/NWH1028 Spectral Irradiance Tester
NWH1026/NWH1027/NWH1028 Spectral Irradiance Tester
Couldn't load pickup availability
Description
The spectral radiance tester is an instrument used to measure optical parameters such as light radiation intensity and light radiation brightness. Its working principle is to decompose the light into different wavelength spectra, and then obtain spectral data by measuring the radiation intensity of each wavelength. This instrument is widely applied in numerous fields including optical technology, instrument and equipment, aerospace, automotive manufacturing, electronic and electrical engineering, and medical equipment.
Application
l The optical properties of LED backlighting and LED lighting fixtures, such as brightness, color, correlated color temperature, etc.
l The optical properties of displays like OLED and LCD, such as brightness, color, correlated color temperature, spectral distribution, etc.
l High-precision measurement of the brightness and color of vehicle headlights, taillights, and ambient lights.
l As optical characteristic evaluation probes, they are installed on various automatic measurement machines.
l
Features
l Wide measurement range
l High measurement accuracy
l Multiple measurement angles
l Multiple communication interfaces
Technical Specifications
|
Items |
Specifications |
|
Measurement Wavelength Range |
Standard: 380~780nm (Optional: 350~1050nm) |
|
Measurement Angle |
0.5°, 1°, 2° or custom special angles |
|
Measurement Functions |
Radiance, Luminance, CIE Color Coordinates, Correlated Color Temperature, FWHM, Tristimulus Values, Color Purity, Peak Wavelength |
|
Luminance Measurement Range |
FLH1026: 10~500,000cd/m² |
|
Luminance Accuracy |
± 2% |
|
Chromaticity Accuracy |
x: ± 0.002, y: ± 0.002 |
|
Luminance Repeatability |
0.50% |
|
Chromaticity Repeatability |
0.0005 |
|
Communication |
USB/RS232 one or more |
