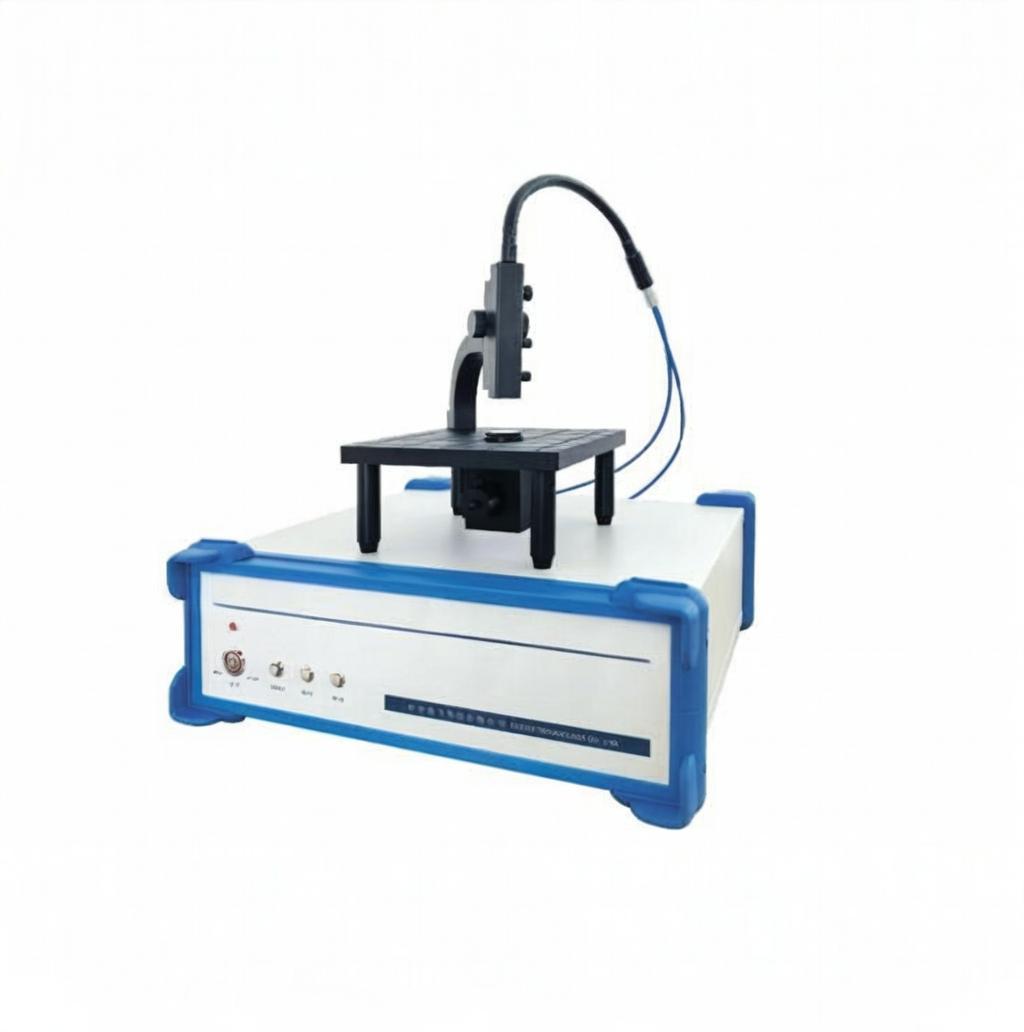

NWH3000 Film Thickness Tester
NWH3000 Film Thickness Tester
Couldn't load pickup availability
Description
The NWH3000 film thickness tester is a high-precision instrument that measures film thickness using spectral reflection technology. Its measurement range covers from nanometers to micrometers, enabling precise measurement of film thickness for substances such as photoresists, oxides, silicon or other semiconductor films, organic films, and conductive transparent films. It is widely used in the fields of semiconductors, microelectronics, and biomedicine.
Application
l Photovoltaic film thickness analysis
l Semiconductor films (photomask resists, process films, dielectric materials)
l Liquid crystal display (OLED, glass thickness, ITO)
l Optical coating (hard coating thickness, anti-reflection coating)
l High molecular films (PI, PC)
l Metal material film thickness
Features
l High precision
l Non-contact measurement
l Wide material compatibility
l Rapid measurement
l Simple operation
l High adaptability
Technical Specifications
|
Spectral Wavelength Range |
200~1700 nm (Optional) |
|
Thickness Measurement Range |
5nm~250um |
|
Measurement of n&k Thickness |
≥50 nm |
|
Accuracy |
2nm or 0.2% (whichever is greater) |
|
Repeatability |
0.1nm |
|
Spot Size |
Small to 0.5mm |
|
Sample Size |
Diameter from 50mm to 300mm or larger |
