NWH7000 Series Light, Color and Electricity Testing System
NWH7000 Series Light, Color and Electricity Testing System
Couldn't load pickup availability
Description

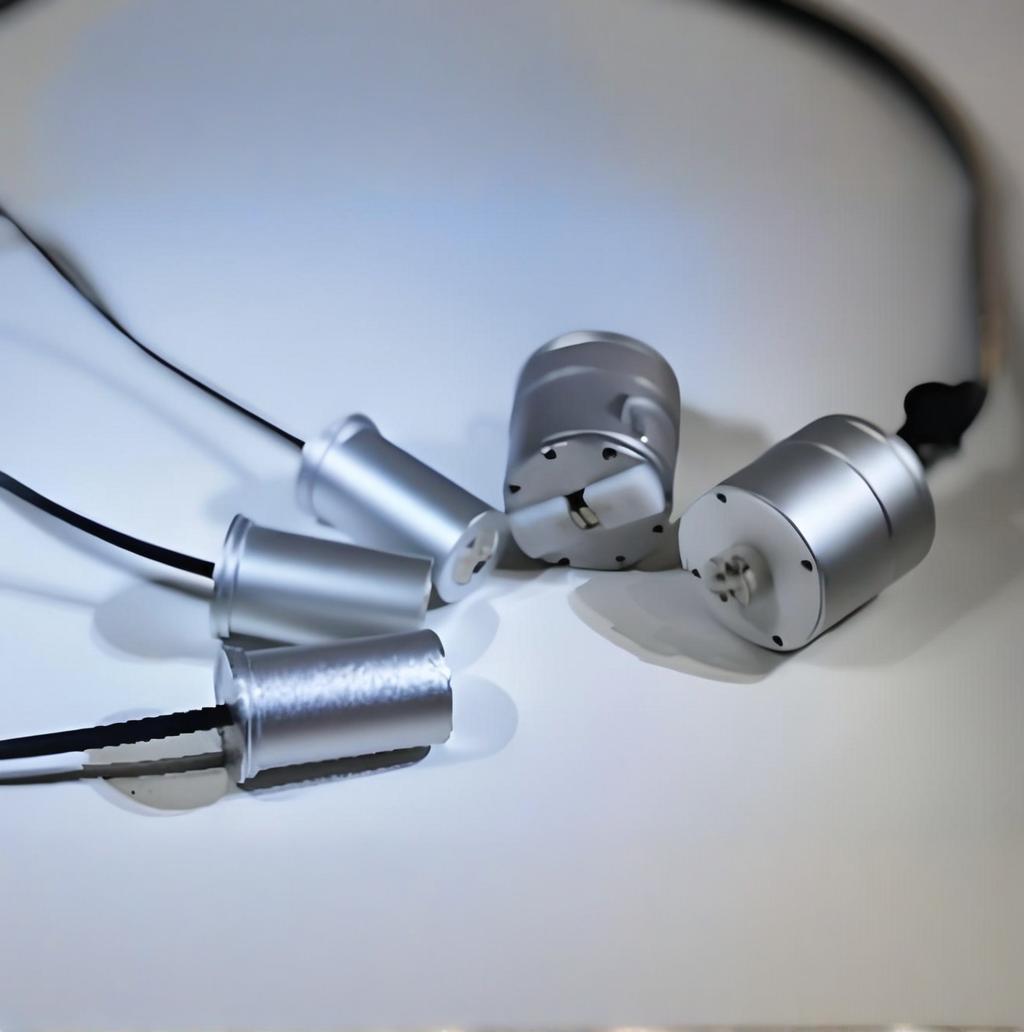

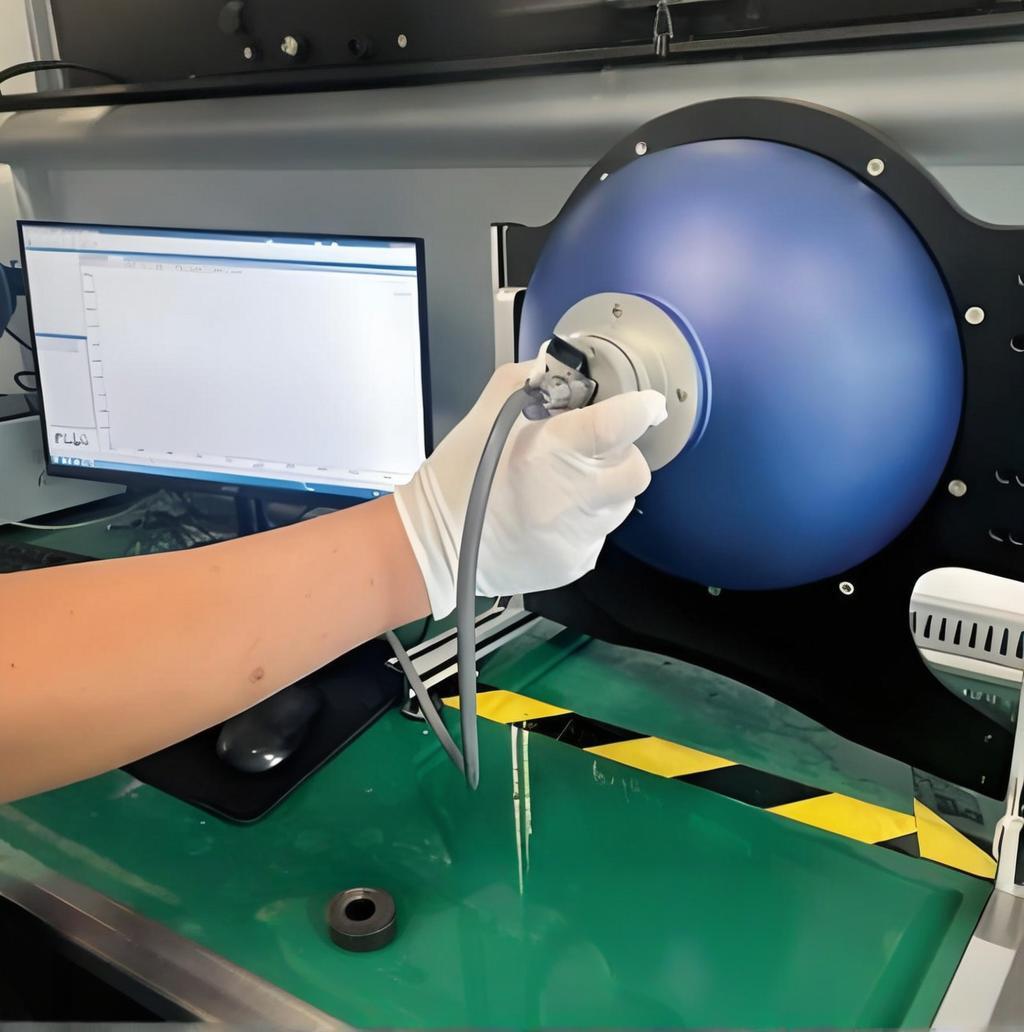

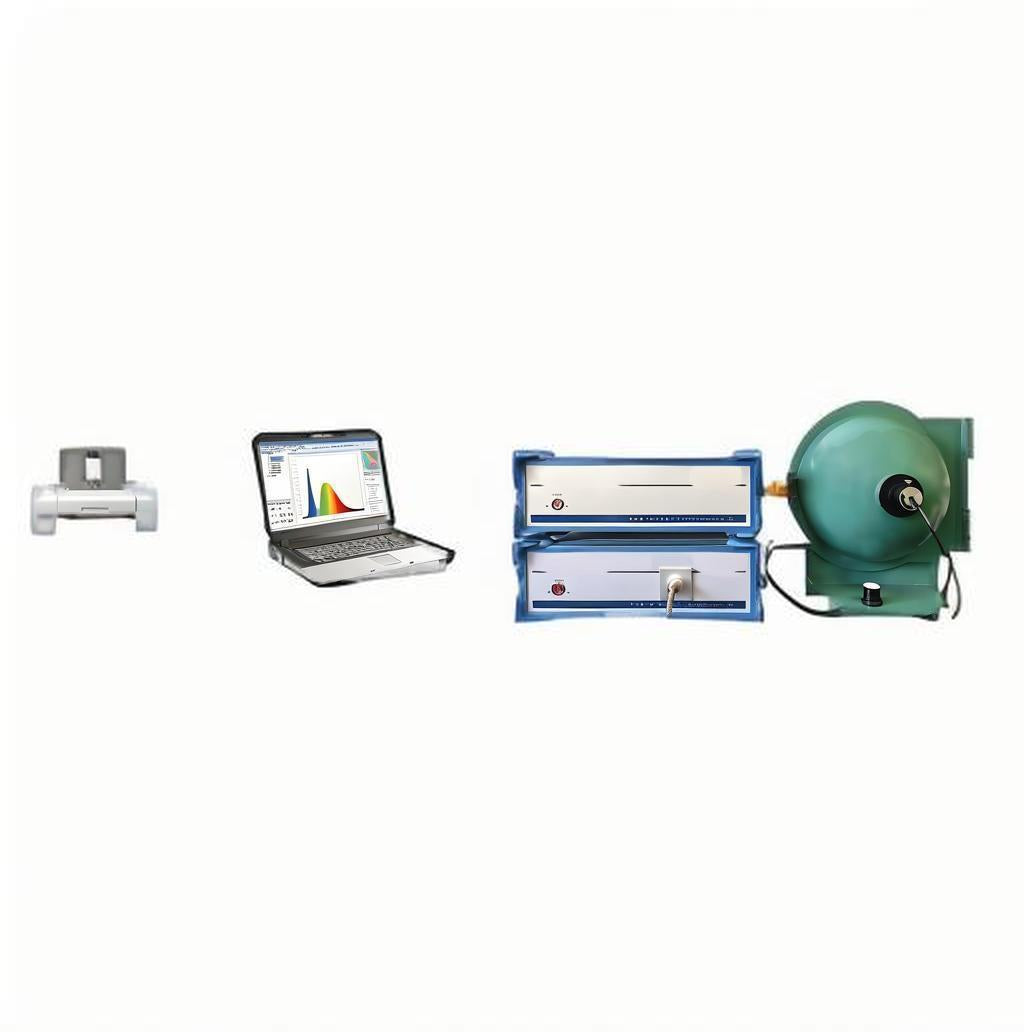

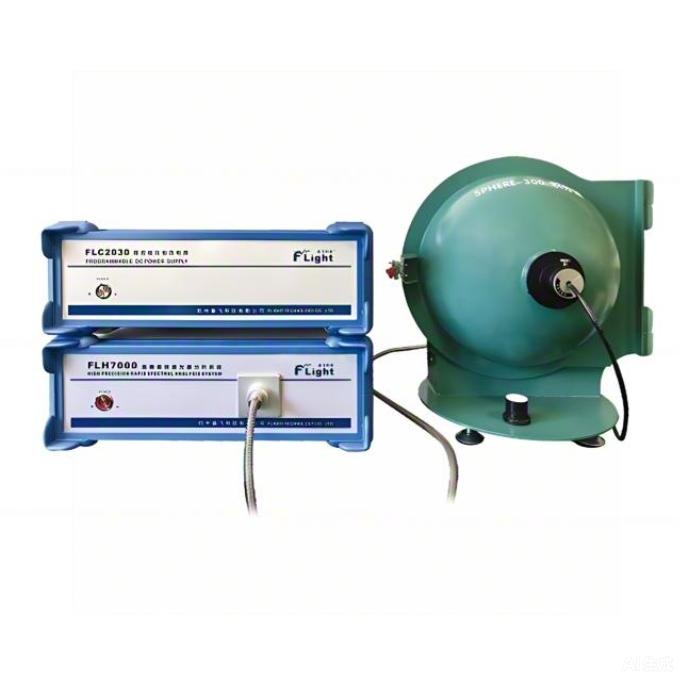

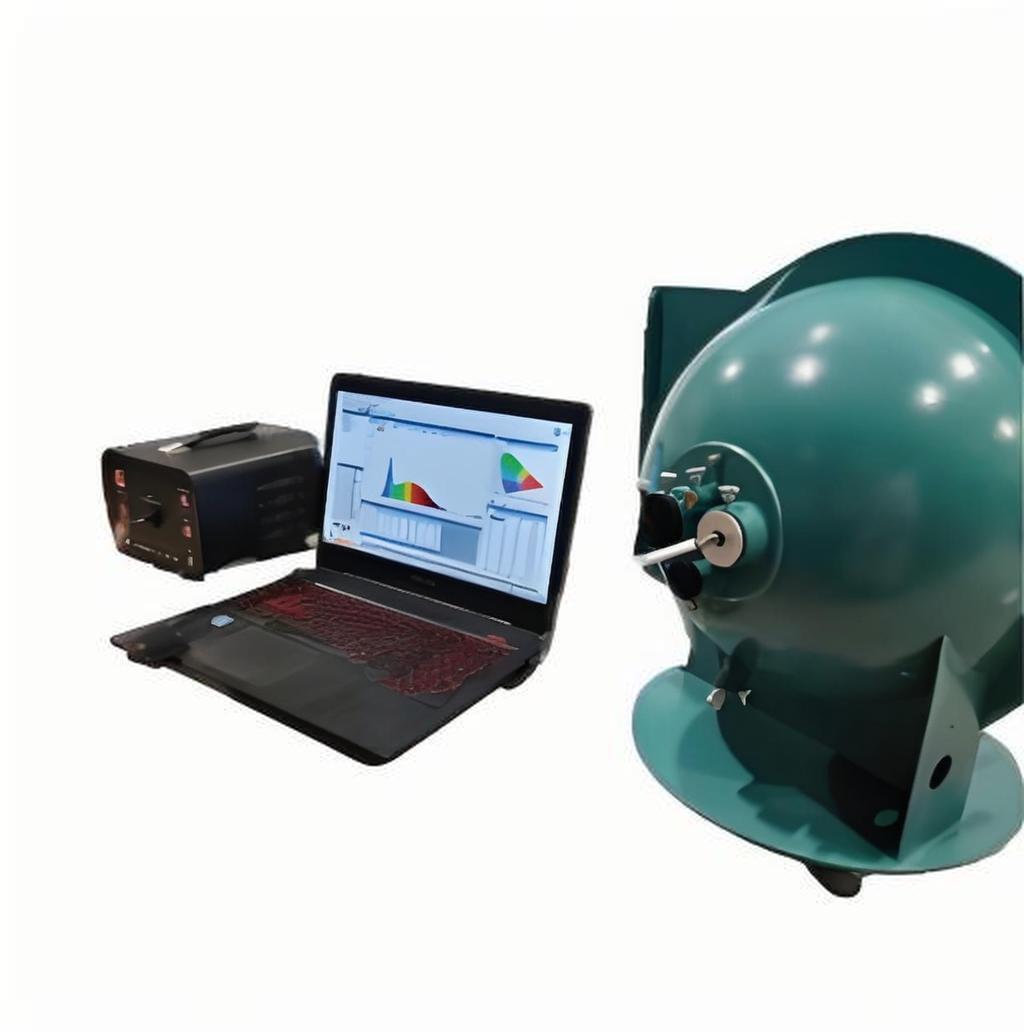

The NWH7000 series photometric, chromatic and radiometric testing system is a specialized device designed for measuring various light sources and calculating their photometric, chromatic and radiometric parameters. This system consists of the FLH7000 high-precision rapid spectral analysis instrument, the FLC2030 programmable constant voltage and constant current power supply, the FLE series standard light sources, lamp beads and lamps, and a 0.3-meter integrating sphere. It features multiple advantages such as millisecond-level rapid testing, wide linear dynamic range, and wide current range.
Application
l LED chip inspection
l Fnished light source inspection
l Flash lamp testing,
l Medical endoscope light source testing
Features
l Millisecond-level rapid testing
l Wide linear dynamic range
l High sensitivity, low stray light
l Rapid data processing and output
Test subjects:
l Surface-mount LED,
l High-power LED,
l 5050 surface-mount LED,
l 3528 surface-mount LED,
l Vampire-type LED,
l LED with aluminum substrate (Cree),
l LED integrated light chip
Technical Specifications
|
Spectral Characteristics |
|
|
Spectral Range |
350~950nm |
|
Wavelength Resolution |
0.1nm |
|
Colorimetric Characteristics |
|
|
Chromaticity Coordinate Standard Accuracy |
± 0.0003 (under standard A light source) |
|
Chromaticity Coordinate Repeatability |
± 0.0002x, ± 0.0002y (under blue LED test) |
|
Luminous Flux Measurement Range |
1lm~20000lm (with different integrating spheres) |
|
Linearity |
0.50% |
|
Luminance Repeatability |
0.20% |
|
Correlated Color Temperature Range |
100K~100000K |
|
Correlated Color Temperature Accuracy |
± 10K (under standard A light source) |
|
Color Rendering Index Range |
0~100.0 |
|
Color Rendering Index Error |
± 0.3%+0.5 |
|
Color Tolerance Accuracy |
± 1.0 |
|
Test Speed |
2.8ms + Integration Time |
|
Chromaticity Coordinate Standard Accuracy |
± 0.0003 (under standard A light source) |
|
Optical Parameters |
|
|
Test Parameters |
POL, VF, IF, VFL, IR, VR |
|
Applicable Lamp Types |
Two-pin single lamp |
|
Current Output Range |
0.3uA~400mA@60V |
|
Voltage Output Range |
0~60V |
|
I/O Quantity |
SOT3; EOT3; PIN10 |
|
Test Speed |
(Set Delay +1.5ms) Number of wicks |
|
Communication Interface |
USB2.0, RS232 interface, suitable for general circuit boards |
|
Power Supply |
AC220V/3A |
