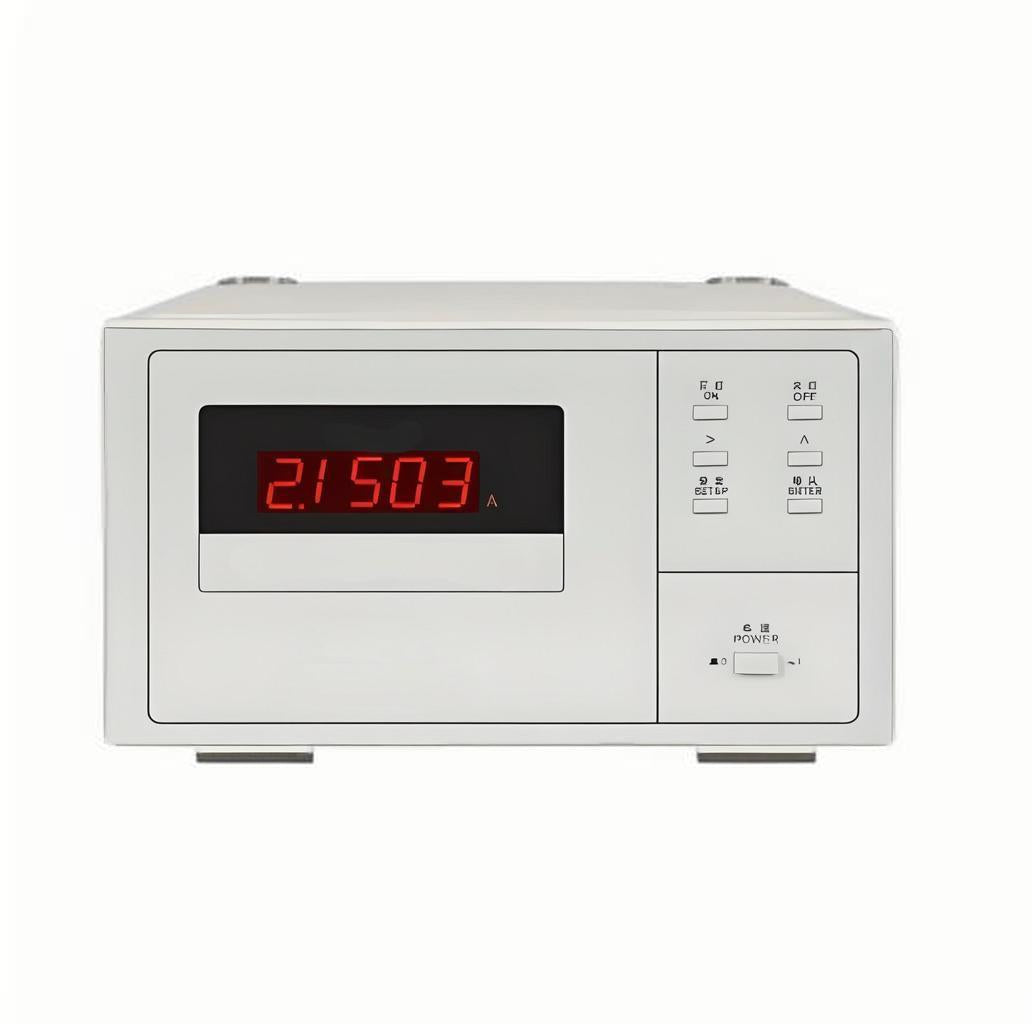

NWS7150 Programmable DC Power Supply
NWS7150 Programmable DC Power Supply
Couldn't load pickup availability
Description
The NWS7150 precision programmable constant current power supply has a lot of great features. It's highly intelligent, very stable, super accurate, easy to use, and its output current can be adjusted continuously. It combines the functions of a source and a meter. It's especially suitable for situations where high-precision current is required and is an ideal power supply for standard light sources.
Application
l Laboratory-specific high-precision spectral analysis system

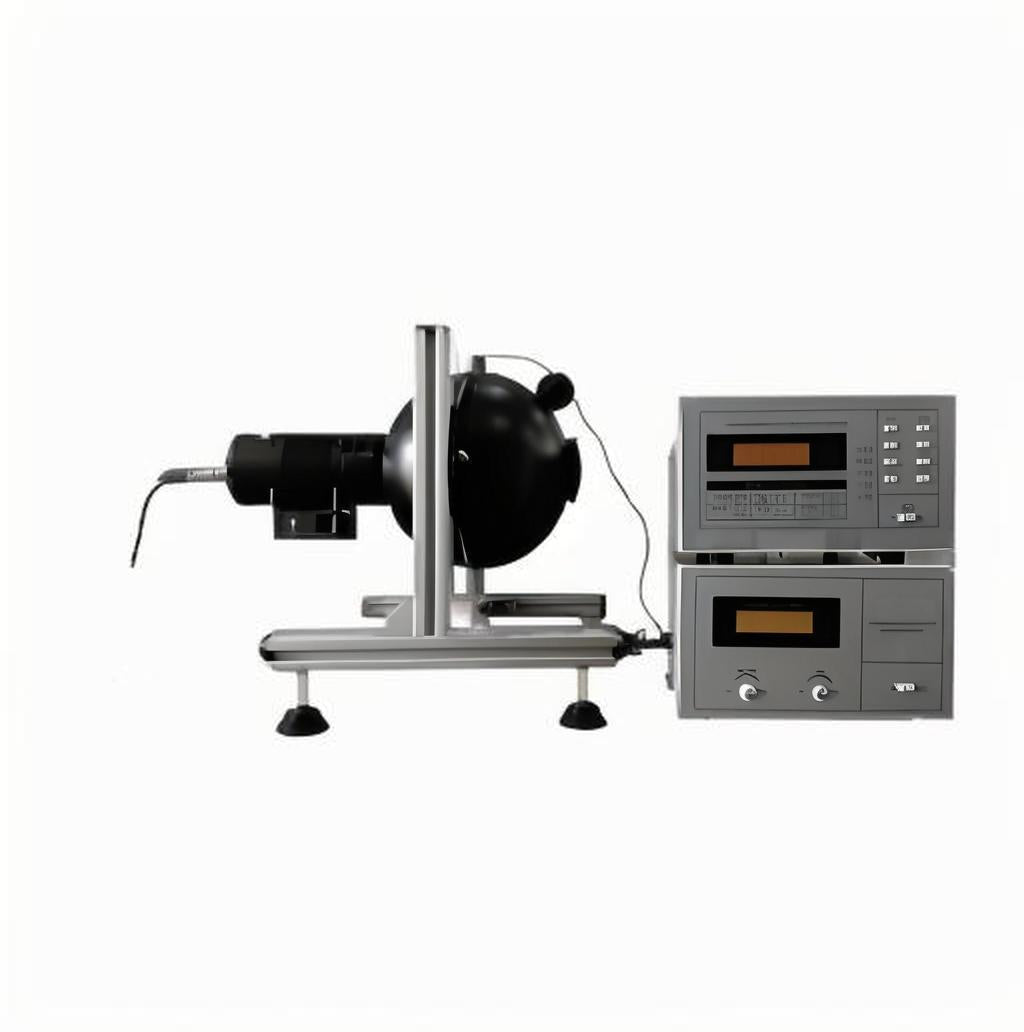

l Uniform brightness integrating sphere
l Photometric/colorimetric calibration system
Features
l RS232 communication function
l Good reliability
l High intelligence level
l High accuracy of output current
Technical Specifications
|
Electrical Parameters |
|
|
Output Voltage |
0~25V |
|
Output Current |
0~2.5A |
|
Current Stability |
± 1mA |
|
Ammeter Resolution |
0.1mA |
|
Current Drift |
± 0.8% reading ± 2 digits / 3 minutes |
|
Current Ripple during Stabilization |
0.1mA |
|
Current Accuracy |
± 0.5% reading + 5 digits (1.000 ~ 2.500A) |
|
Maximum Output Capacity |
75VA |
|
RS232 Communication Baud Rate |
9600b/s |
|
Environmental Conditions |
|
|
Ambient Temperature |
23°C ± 10°C |
|
Relative Humidity |
55% ± 20% |
|
Power Supply Voltage |
220V/50Hz |
