NWSPEC
Gas Purifiers and Traps for GC Systems
Gas Purifiers and Traps for GC Systems
Gas Purifiers and Traps
Carrier Gas Purification for GC Systems | NWSPEC GC Accessory Series
The Gas Purifiers and Traps remove common pollutants such as oxygen, moisture, and hydrocarbon compounds from carrier gas for GC. Purifying the carrier gas with oxygen and moisture traps can extend the lifespan of the chromatographic column and protect your instrument. Meanwhile, removing hydrocarbon compounds helps improve detector baseline stability and sensitivity. The materials filled inside are strictly tested to ensure that even if the gas supply cylinder is of the 99.995% grade, the trap outlet can reach the "chromatographic grade" of 99.9999% for the carrier gas. All traps are available in 1/8" and 1/4" fitting sizes.
GC Applications
- Carrier gas purification for GC systems
- Detector gas purification (FID, TCD, ECD)
- GC/MS carrier gas ultra-purification
- LC/MS nitrogen gas purification
- High-throughput laboratory gas supply
- Process GC continuous gas purification
Product Range
- 750cc Universal Purifiers (Big Universal Trap): Helium P7000-30007/34007, Hydrogen P7000-30008/34008, Nitrogen P7000-30006/34006, Air P7000-30001/34001, Nitrogen for LC/MS P7000-30106/34106
- 200cc Mini Gas Traps: Moisture M6000-62008/64008, Hydrocarbon M6000-62006/64006, Oxygen M6000-62007/64007, Hydrocarbon & Moisture M6000-30002/34002
- Fitting sizes: 1/8" and 1/4" available for all models
Purifier Features
- Large-capacity universal trap: 750cc super-large adsorbent material in multi-layer column bed
- Vertical installation: Install in front of gas purification system to further increase trapping capacity
- Ideal for large-volume purification: Suitable for high-throughput laboratories
- Combined gas trap: Remove moisture, oxygen, and/or organic matter with a single trap
- Dedicated traps: Select different types and sizes for your own laboratory needs
- Outlet purity: Chromatographic grade 99.9999% from 99.995% inlet
- Pollutant removal: O₂, H₂O, hydrocarbons to <1-3 ppb level
Trapping Capacity
| Universal Trap (200cc): | 0.3L O₂ / 13g H₂O / 6.5g Hydrocarbon |
| Universal Trap (750cc): | 1.2L O₂ / 50g H₂O / 25g Hydrocarbon |
| Moisture Trap (200cc): | 13g Water |
| Hydrocarbon Trap (200cc): | 6.5g Hydrocarbon |
Outlet Gas Purity (Inlet <50ppm, better than 99.995%)
| Helium purifier: | Non-methane hydrocarbons <1ppb, CO <1ppb, H₂O <1ppb, CO₂ <1ppb, O₂ <3ppb |
| Hydrogen purifier: | Non-methane hydrocarbons <1ppb, CO <1ppb, H₂O <1ppb, CO₂ <1ppb, O₂ <3ppb |
| Air purifier: | Non-methane hydrocarbons <1ppb, H₂O <1ppb, CO₂ <3ppb |
| Nitrogen purifier: | Non-methane hydrocarbons <1ppb, CO <1ppb, H₂O <1ppb, CO₂ <1ppb, O₂ <3ppb |
| Nitrogen purifier for LC/MS: | Non-methane hydrocarbons <25ppb, CO <25ppb |
| Moisture trap: | H₂O <1ppb |
| Hydrocarbon trap: | Non-methane hydrocarbons <3ppb |
| Oxygen trap: | O₂ <1ppb |
Compatible GC Systems
Lab GC System
Compact GC System
Entry GC System
Portable GC
Rack GC (continuous)
Via standard fitting

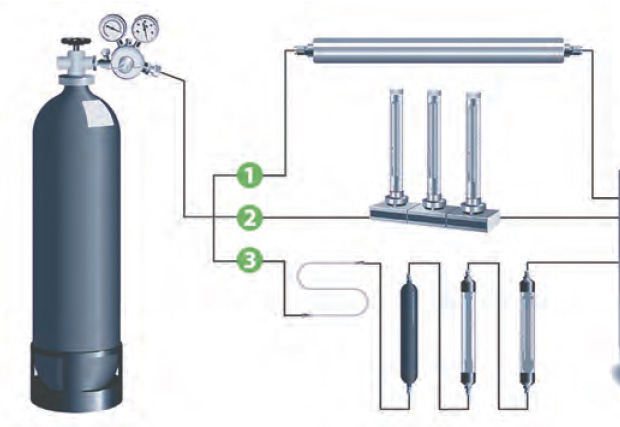

System Integration: NWSPEC Gas Purifiers and Traps connect directly to GC carrier gas lines via 1/8" or 1/4" fittings. The 750cc Universal Purifier is recommended for continuous monitoring systems (P5 rack GC) and high-throughput laboratories, while the 200cc Mini Gas Trap is ideal for single GC setups and portable systems (P6). All purifiers are maintenance-free until saturation indicators show replacement is needed.
