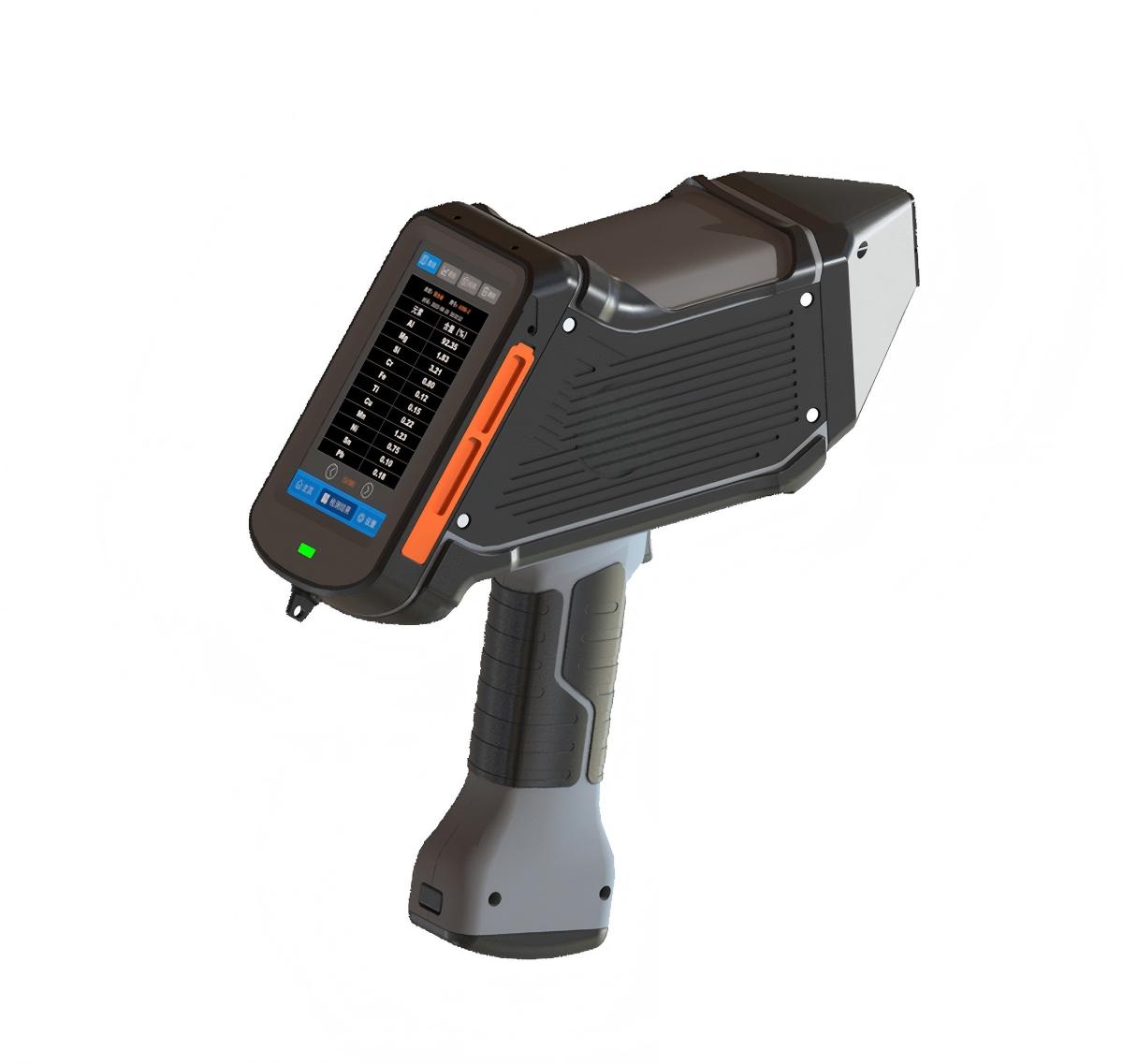

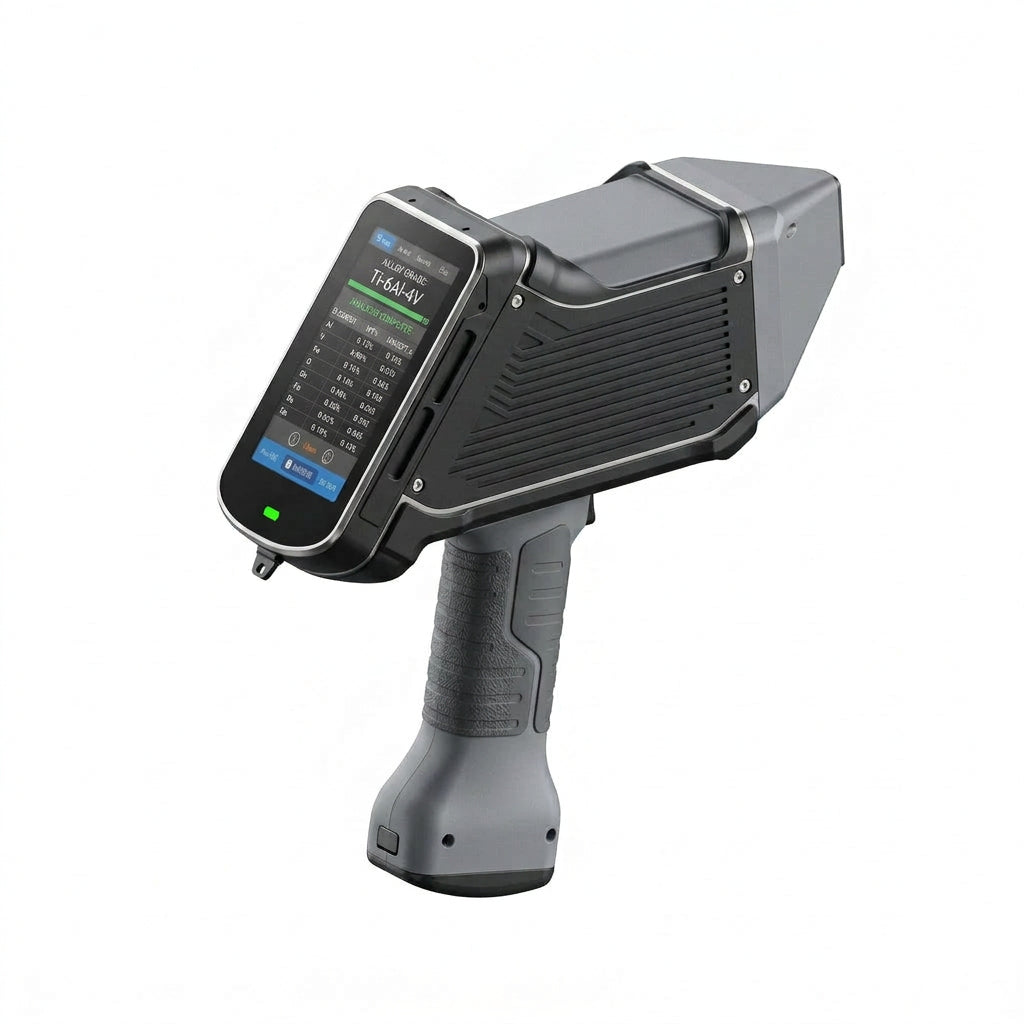

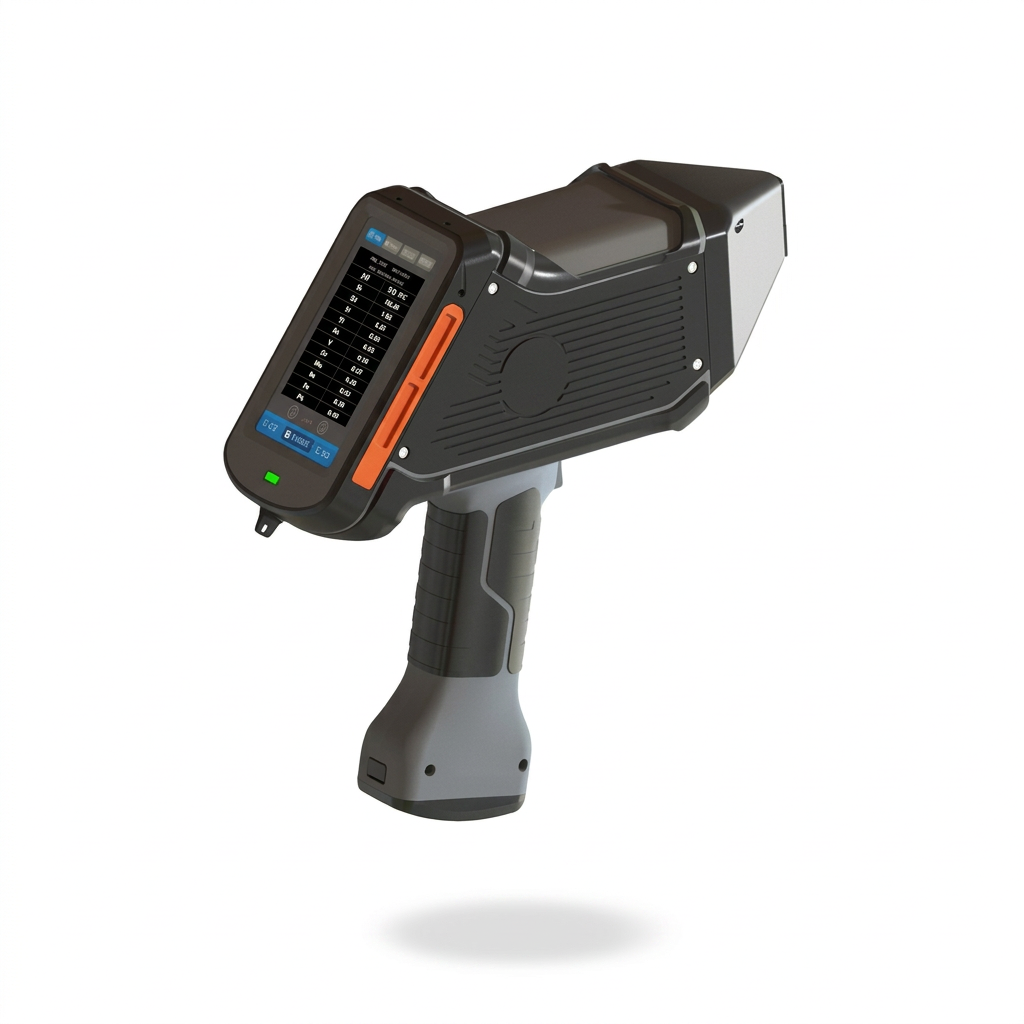

LIBS-ALLOY 1535 LIBS · 1535nm · CLASS 1 — Laser Alloy Analysis Without Radiation
LIBS-ALLOY 1535 uses Laser-Induced Breakdown Spectroscopy (LIBS) — not X-rays — for instant metal identification. The 1535nm eye-safe laser requires no licensing, no protective glasses, no radiation officer. At 1.75 kg with 8-hour battery, this handheld LIBS analyzer delivers 2-second alloy grade confirmation with single-hand operation anywhere in your facility or scrap yard.
Why LIBS for alloys? Unlike XRF analyzers that cannot detect carbon or light elements, LIBS uses focused laser pulses to create plasma on the metal surface — analyzing the full spectrum including C, Be, Mg, Al, Si that XRF misses. Perfect for scrap sorting, Positive Material Identification (PMI), and carbon steel grade verification where XRF fails completely.

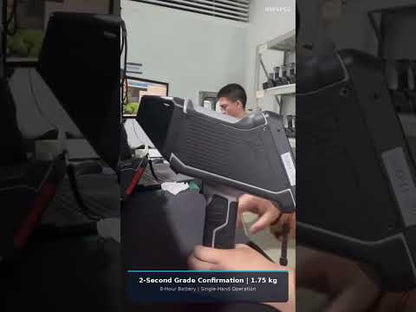

📹 See it in action — watch the product video in the gallery above.
LIBS Technology Advantages
- LIBS Principle: Laser plasma emission spectroscopy — no X-ray radiation
- 1535nm Laser: Class 1 eye-safe — no glasses, no licensing, no restrictions
- Light Element Detection: C, Be, Mg, Al, Si direct detection — impossible with XRF
- Speed: 2-second results — real-time LIBS plasma analysis
- Weight: 1.75 kg — handheld LIBS for all-day use
- Battery: 8 hours — full shift operation, hot-swappable
- Detection Limit: 0.05% — sufficient sensitivity for grade discrimination
- Stability: RSD <1% — reliable quantification
LIBS vs. XRF for Alloy Analysis
| Feature | LIBS-ALLOY 1535 | Handheld XRF |
|---|---|---|
| Technology | Laser-Induced Breakdown Spectroscopy | X-ray Fluorescence |
| Carbon (C) Detection | ✓ Direct LIBS detection | ✗ Cannot detect carbon |
| Beryllium (Be) | ✓ Direct LIBS detection | ✗ Cannot detect |
| Magnesium (Mg) | ✓ Air-burn LIBS | Vacuum required |
| Safety | Class 1 laser — eye-safe | Class 3B X-ray — regulated |
| Licensing | None required | Radiation officer, badges |
| Surface Prep | Laser ablates clean surface | Requires grinding |
| Analysis Time | 2 seconds | 30–60 seconds |
Applications
Technical Features
Laser System
- 1535nm eye-safe laser: Class 1 — safe for direct viewing, no safety glasses required
- Plasma generation: Focused laser creates 10,000°C plasma for atomic emission analysis
- No radiation: Exempt from X-ray regulations worldwide
- 100 million laser pulses: Maintenance-free laser lifetime
- Micro-camera targeting: Precise analysis on small welds and features
Detection & Analysis
- 200–900nm spectrum: Full coverage captures all alloy elements simultaneously
- 0.05% detection limit: Sufficient sensitivity for grade discrimination
- Light element capability: Unique C, Be, Mg, Al, Si detection in alloys
- Grade matching: Auto-compare to 100+ built-in alloy specifications
- Stability: RSD <1% for majors, <5% for minors
Handheld Design
- 1.75 kg total weight: Including battery — fatigue-free all-day operation
- 8-hour battery: Full shift laser analysis, hot-swappable
- 5-inch touchscreen: Adjustable brightness for outdoor use
- IP54 rated: Dust and splash resistant for industrial environments
- Connectivity: Bluetooth, 4G, WiFi, USB, GPS — data anywhere
Alloy Databases
- AluminumAl, Cr, Ni, Si, Mg, Ti, Fe, Cu, Sn, Pb, Zn, Zr, Be...
- CopperCu, Fe, Al, Mn, Sn, Pb, Zn, Ni...
- SteelFe, Cr, Ni, Mn, Cu, V, Mo, Si, C, Ti, Co...
- TitaniumTi, Al, V, Fe, Cr, Mo, Sn, Mn, Zr, Nb, Si, Cu...
- NickelNi, Cr, Fe, Nb, Mo, Ti, Al, Mn, Cu...
- Precious MetalsPt, Pd, Au, Ag, Cu, Ni, Zn, Co, Ru, Pb, Cr...
* All databases user-editable. Add proprietary grades via PC software or onboard interface.
Configure Your LIBS-ALLOY 1535
Handheld laser alloy analyzer for metal identification without radiation or licensing.
