Handheld LIBS Ore Analyzer | Field Lithium, Nickel & Cobalt Detection | 1-Second Results
Handheld LIBS Ore Analyzer | Field Lithium, Nickel & Cobalt Detection | 1-Second Results

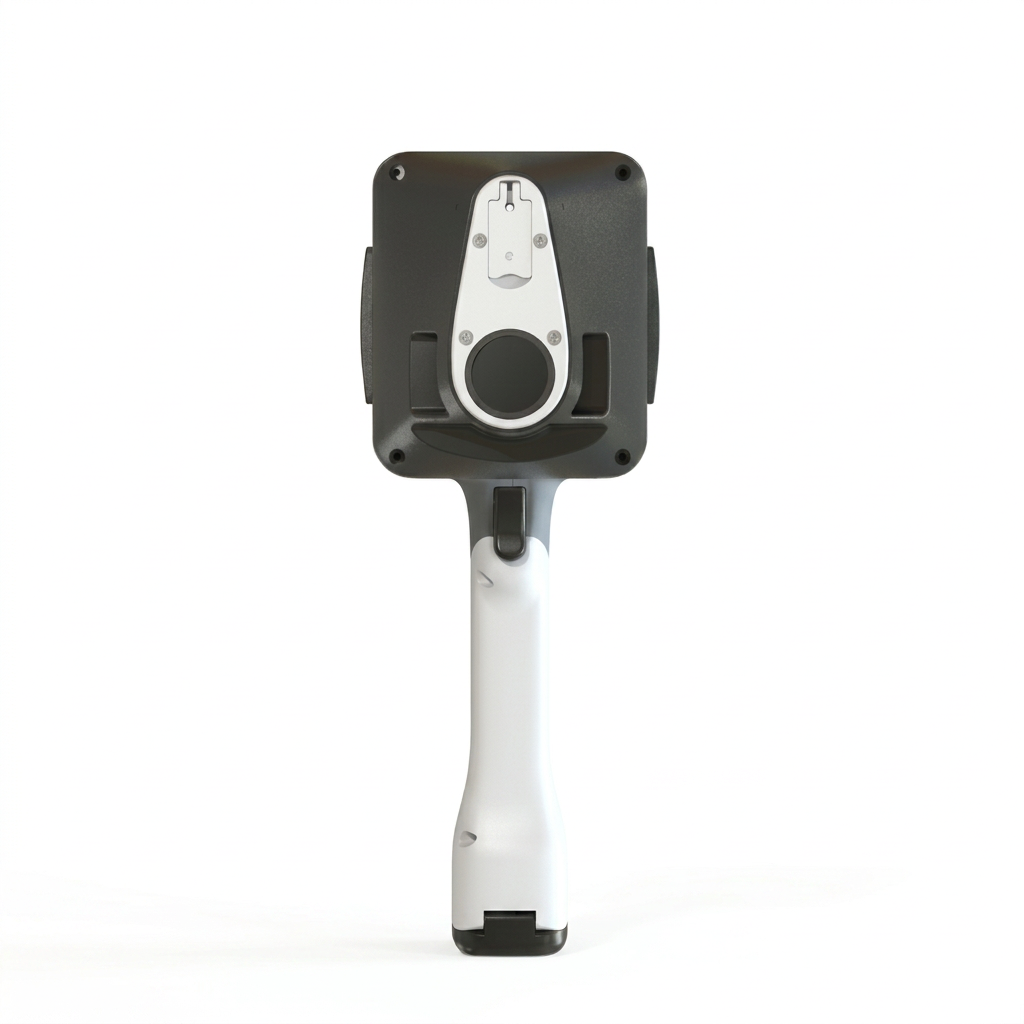

LIBS-ORE 1064 LIBS · 1064nm · FIELD — Laser Ore Analysis for Critical Minerals
LIBS-ORE 1064 brings Laser-Induced Breakdown Spectroscopy (LIBS) to mineral exploration — 1-second ore grade analysis for lithium, nickel, cobalt, manganese in the field. The 1064nm high-energy LIBS laser penetrates weathered rock surfaces that defeat other analyzers, delivering direct Li, Ni, Co quantification without sample transport to laboratories.
Why LIBS for ores? Traditional XRF cannot detect lithium (atomic number 3) — the most critical battery metal. LIBS uses laser plasma spectroscopy to analyze all elements including light metals (Li, Be, Mg) that XRF misses completely. The LIBS plasma reaches 10,000°C, vaporizing any mineral matrix for complete elemental disclosure in one laser shot.
LIBS Technology for Minerals
- LIBS Principle: Laser plasma atomic emission spectroscopy
- 1064nm LIBS Laser: Nd:YAG high-energy for mineral matrix penetration
- LIBS Elements: Ni, Co, Mn, Li, P, Fe, C + customizable LIBS curves
- LIBS Speed: 1 second — real-time exploration decisions
- LIBS Detection: 0.05-0.15% — ore grade discrimination
- LIBS Sample: Powder or solid — no preparation
- LIBS Weight: 2.3 kg — portable laser analysis
- LIBS Battery: ≥4 hours — hot-swappable for surveys
LIBS vs. Lab Analysis for Ores
| Method | LIBS-ORE 1064 | Lab XRF/ICP |
|---|---|---|
| Technology | Laser-Induced Breakdown Spectroscopy | X-ray or wet chemistry |
| Lithium Detection | ✓ LIBS detects Li (670.8nm) | XRF: ✗ ICP: ✓ (days delay) |
| Field Analysis | ✓ 1-second LIBS at outcrop | Sample transport required |
| Sample Prep | LIBS: None — direct rock | Grinding, digestion, dissolution |
| Time to Result | Instant LIBS plasma | Days to weeks |
| Cost Per Test | Near zero (LIBS capital) | $50-200 per analysis |
| Depth Profiling | LIBS layer-by-layer ablation | Bulk homogenized only |
| Spatial Resolution | LIBS point analysis (cm) | Bulk sample (kg) |
LIBS Mineral Applications
LIBS Technical Features
High-Energy LIBS Laser
- 1064nm Nd:YAG LIBS: Optimal wavelength for mineral matrix ablation
- LIBS plasma temperature: 10,000°C vaporizes any ore for complete analysis
- 100 million LIBS pulses: Years of field exploration without maintenance
- LIBS surface penetration: Ablates weathering rind to analyze fresh rock
- Safety switch LIBS: Prevents accidental laser firing in rough terrain
LIBS Ore Detection
- LIBS spectrum range: 200-900nm captures all ore elements
- 0.05-0.15% LIBS limits: Sufficient for ore vs. waste discrimination
- LIBS percentage output: Direct grade, not just presence
- LIBS stability: RSD ≤ 5% for resource estimation confidence
- Custom LIBS curves: Company technicians assist site-specific calibration
Field LIBS Design
- 2.3 kg LIBS unit: Portable with shoulder strap for all-day surveys
- 288 × 285 × 100 mm LIBS: Backpack transport to remote sites
- ≥4 hour LIBS battery: Hot-swappable for continuous exploration
- IP54 LIBS rating: Dust and splash resistant for harsh environments
- -20°C to 60°C LIBS storage: Survives extreme climate exposure
LIBS Pre-Configured Databases
LIBS Calibration Packages
- Lithium Battery LIBS: Li, Co, Ni, Mn, Al, Cu, Fe for recycling and cathode QC
- Spodumene Pegmatite LIBS: Li, Be, Rb, Cs, Na, K, Al, Si for hard rock lithium
- Clay Lithium LIBS: Li, Mg, Al, Si, K, Fe, Mn for sedimentary deposits
- Custom LIBS Curves: Technicians assist establishing site-specific LIBS calibration
Configure Your LIBS-ORE 1064
Laser analyzer for critical mineral exploration.
