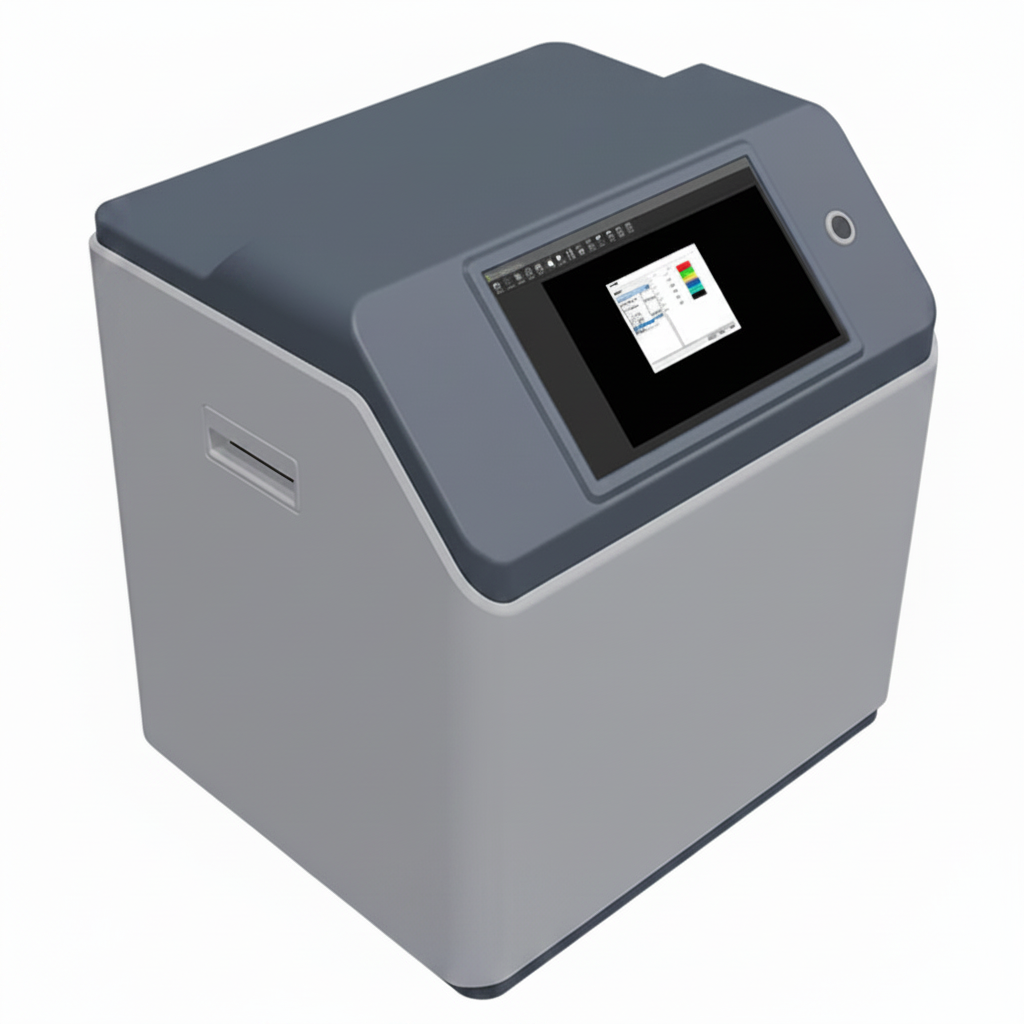

Hyperspectral Colorimeter | Large-Area Color Measurement System
Hyperspectral Colorimeter | Large-Area Color Measurement System
The IC-M10L replaces manual color inspection with a single automated scan across a 300×200 mm measurement area — capturing 347,600 data points in under one minute. Designed for textiles, automotive, coatings, plastics, and aerospace, it delivers full spectral data per pixel at 2 nm resolution, enabling color consistency analysis impossible with traditional spot colorimeters.
Manual color inspection consuming excessive staff hours and creating production bottlenecks.
→ One scan replaces 347,600 point measurements
Color variation causing quality complaints and material waste across production runs.
→ Digital measurement eliminates human subjectivity
Mottled, textured, or multi-colored surfaces impossible to measure with spot colorimeters.
→ 0.44 mm pixel-level color recognition
Need full spectral information for analysis, not just color values.
→ Full 400–780 nm spectrum per pixel at 2 nm resolution
| Capability | IC-M10L | Traditional Colorimeter |
|---|---|---|
| Spectral Range | 400–780 nm (Full VIS) | Tristimulus filters only |
| Measurement Area | 300×200 mm (60,000 mm²) | ~10 mm diameter spot |
| Points per Scan | 347,600 | 1 |
| Scan Time | <1 minute | Hours for equivalent coverage |
| Spatial Resolution | 0.44 mm | N/A |
| Full Spectral Data | ✓ Per pixel | — Tristimulus only |
| Mottled Surfaces | ✓ Capable | ✗ Not possible |
| Color Precision | ΔE 0.3 | ΔE 0.5–1.0 typical |
Request a Sample Measurement or System Demo
Send your sample type and color consistency requirements for a tailored evaluation.
