IC-10 Industrial-Grade Hyperspectral Camera | VNIR & SWIR

IC-10 Industrial-Grade Hyperspectral Camera | VNIR & SWIR

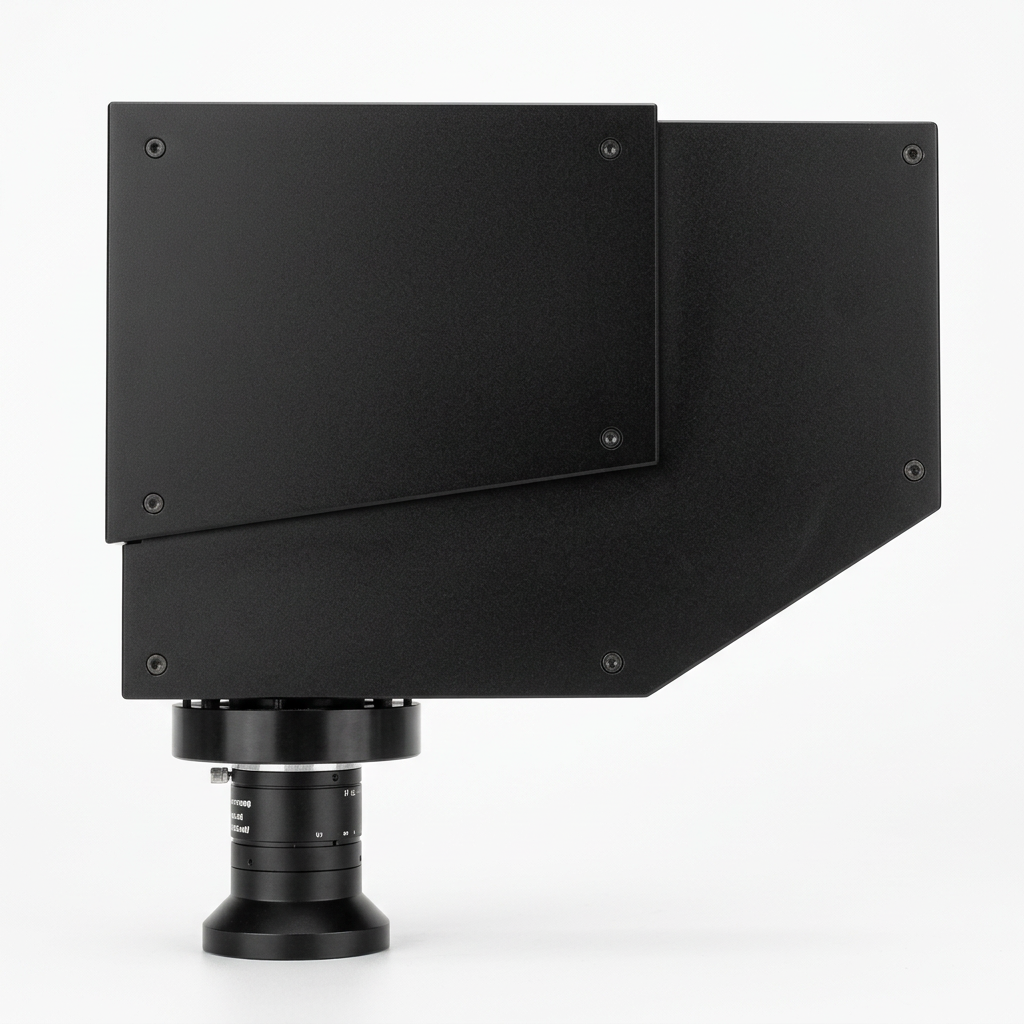

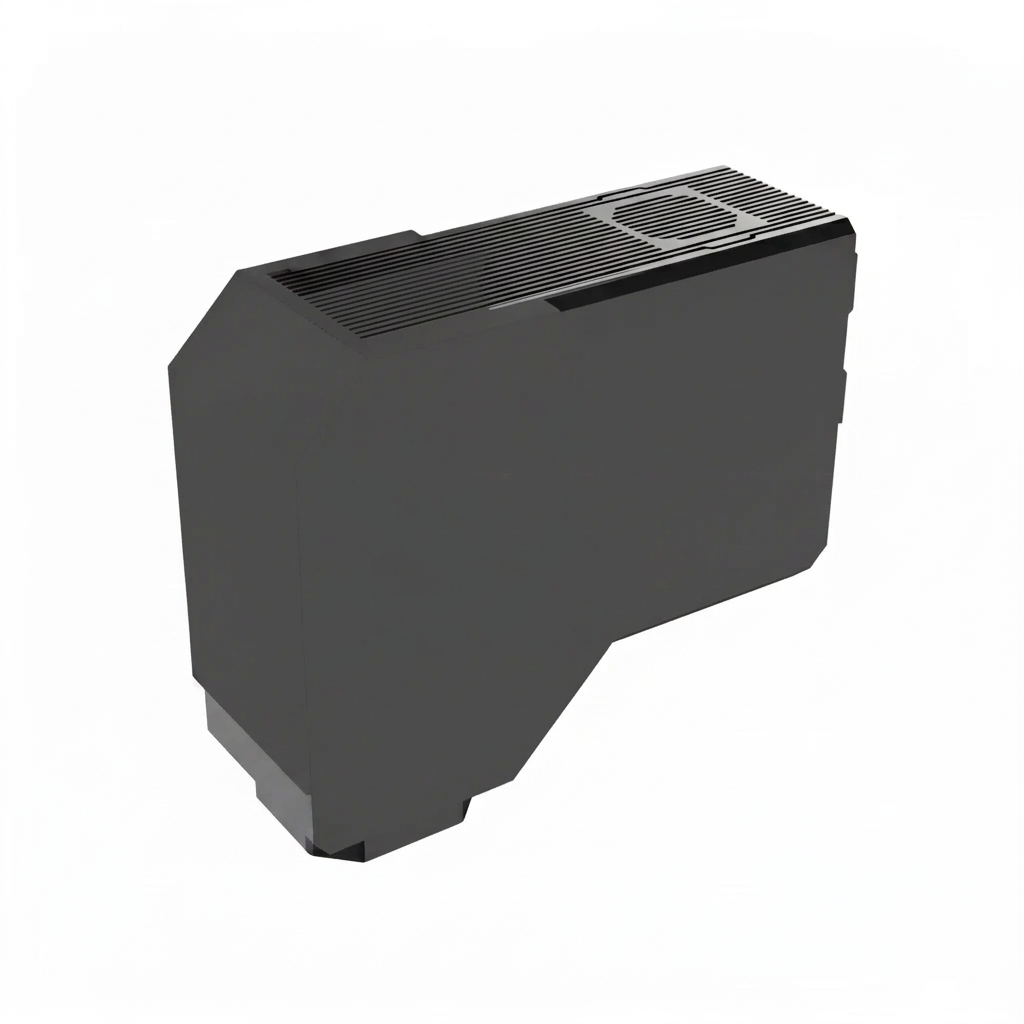

IC-10 Industrial-Grade Hyperspectral Camera

Internal shutter Hyperspectral Imaging Technology

Description

The IC-10 Industrial-Grade Hyperspectral Camera employs independently developed prism-grating dispersion spectroscopic hyperspectral imaging technology. Designed for demanding industrial applications, it delivers high spectral resolution, exceptional efficiency, excellent consistency, and streamlined operation.

Technology: Prism-grating dispersion spectroscopic hyperspectral imaging with flexible pixel binning and band selection capabilities for reduced data transmission and processing complexity.
Key Features
▪ More Accurate Spectral Data: Accurate, stable, and fast hyperspectral imaging optimized for real-time industrial monitoring
▪ Faster & More Flexible: ROI selection with full-spectrum frame rates exceeding 1,400 fps and ROI rates up to 8,800 fps
▪ Broader Field of View: Unique precise optical system with minimum 8 mm focal length and viewing angle exceeding 75°
▪ Higher Cost-Performance: Exceptional ROI for industrial sorting, agriculture, food safety, and environmental monitoring
Applications

Water Quality & Environmental Protection

Comprehensive water quality monitoring including total nitrogen (TN), total phosphorus (TP), ammonia nitrogen, chlorophyll-a, turbidity, and potassium permanganate index (CODmn).

Soil Monitoring

Precise soil water content monitoring, soil fertility assessment, organic matter quantification, and heavy metal pollution tracking.

Geological & Mineral Exploration

High-resolution mineral mapping, mineral composition detection, ore grade assessment, and mineralization zone prediction.

Agriculture & Forestry Carbon Sinks

Agricultural surveying and mapping, crop disease and pest control, tree species classification, canopy health evaluation, and biomass carbon sink estimation.

Industrial Sorting & Recycling

High-speed material classification, polymer and plastic waste identification, and foreign body sorting on automated conveyor lines.

Food Safety & Pharmaceuticals

Non-destructive quality inspection, ingredient verification, moisture distribution analysis, and contamination screening.

Model Selection Guide
Model Spectral Range Detector Max Frame Rate Primary Application
IC-10C 400–780 nm CMOS 750 fps Color inspection, print/quality control
IC-10U 400–1000 nm CMOS 500 fps Extended visible, vegetation & water monitoring
IC-10S 380–1000 nm CMOS 1000 fps Low-light, high-sensitivity applications
IC-17U SWIR 900–1700 nm InGaAs 700 fps Entry SWIR, plastic & soil moisture detection
IC-17S SWIR 900–1700 nm InGaAs 1400 fps Wide-angle SWIR sorting & mineral analysis
IC-17X SWIR 900–1700 nm InGaAs 2500 fps Maximum speed SWIR production lines & mapping
