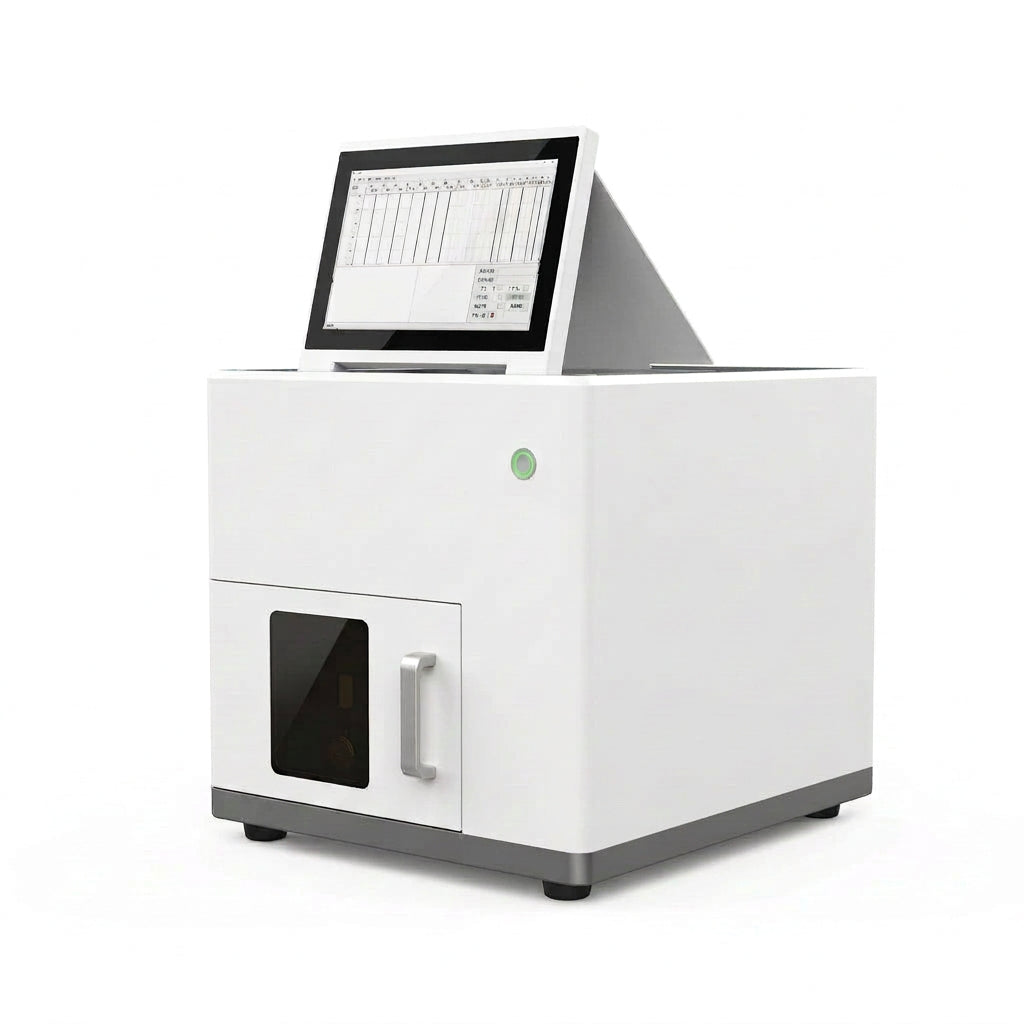

LIBS-Geo-D10 — Desktop Mineral Analyzer
Rapid elemental analysis for geological samples, ores, and rock specimens. Laboratory-grade precision in a compact desktop format.
Direct Solid Analysis
No sample digestion required. Analyze rocks, minerals, and powders as-is.
Multi-Element Simultaneous
Detect Si, Al, Fe, Ca, Mg, K, Na, Ti, and more in a single measurement.
Light Element Capability
Superior detection for Z<12 elements including Li, Be, B, C without XRF limitations.
Built-in Computer
Integrated industrial PC with touchscreen. No external laptop required.
Auto-Rotation Stage
3D adjustable sample platform with automatic rotation for uniform analysis.
Rapid Results
10-second typical analysis time with automated data processing.
Major, minor and trace elements including:
Case 1: Sedimentary Rock Analysis
GeochemistryLIBS-TRACER quantitative analysis of sedimentary samples showing excellent correlation with certified reference materials. Real-time monitoring of elemental variations across rock strata.
RSD (Si): 7.3%
RSD (Al): 6.9%
RSD (Fe): 6.7%
RSD (Ca): 7.2%
RSD (Mg): 6.7%
Case 2: Lithium Ore Detection
Critical MineralsDirect quantitative analysis of lithium content in spodumene and lepidolite samples. Linear calibration curves with R² > 0.99 across 0-3500 ppm range.
Range: 0-3500 ppm
Correlation: R² = 0.999
Method: No acid digestion
Speed: 60 sec/sample
Case 3: Base Metal Ore Analysis
MiningQuantitative determination of Cu, Ni, Pb, Zn in sulfide ores and drill core samples. Suitable for grade control and exploration screening.
Copper: 324.7, 754.4 nm lines
Nickel: Calibration 0-30%
Lead: Calibration 0-25%
Zinc: 403.7, 472.2 nm lines
Configure Your LIBS-Geo-D10 System
OEM manufacturing available | Open API for integration | Custom calibration packages
