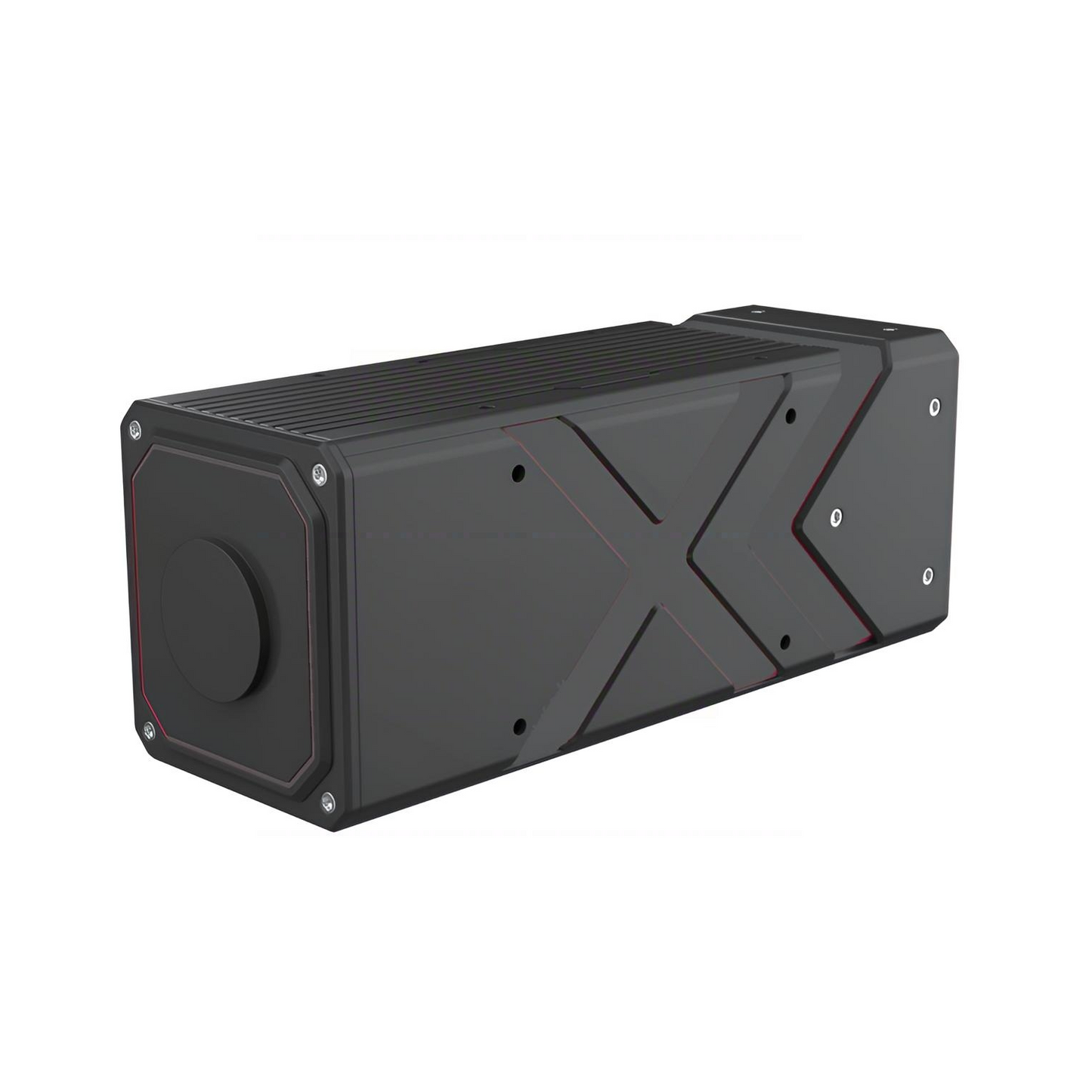

Scientific-Grade Hyperspectral Imager
Scientific-Grade Hyperspectral Imager
The RC Series represents the highest tier of hyperspectral imaging performance — scientific-grade systems with cooled detectors, sub-nanometer spectral resolution, and spectral coverage from UV through SWIR (200–2500 nm). Designed for research institutions, defense, and advanced industrial applications requiring the highest sensitivity, lowest noise, and most precise spectral characterization available.
Thermoelectrically cooled CMOS and InGaAs detectors minimize dark current and thermal noise for maximum sensitivity in low-light conditions.
Sub-nanometer spectral resolution enables precise identification of narrow absorption features and fine spectral structures.
Broadest spectral coverage available — from deep UV through visible, NIR, and SWIR in configurable single or dual-sensor configurations.
Premium optical design with minimized smile, keystone, and stray light for publication-quality spectral imaging data.
Configurable spectral range, detector type, and optical interface to match specific research or application requirements.
Compatible with optical tables, goniometers, integrating spheres, and custom research setups via standard optical interfaces.
- Spectroscopy research
- Material characterization
- Remote sensing calibration
- Target identification
- Camouflage detection
- Explosive residue detection
- Artwork authentication
- Pigment analysis
- Manuscript examination
- Semiconductor characterization
- Thin film analysis
- Advanced materials R&D
| Model | Spectral Range | Detector | Resolution | Cooling | Primary Application |
|---|---|---|---|---|---|
| RC-10-U | 400–1000 nm | Cooled CMOS | <0.5 nm | TE Cooled | High-sensitivity VNIR research |
| RC-30-U SWIR | 900–1700 nm | Cooled InGaAs | <5 nm | TE Cooled | SWIR research, defense, materials |
| RC-UV UV | 200–400 nm | UV-enhanced CMOS | <0.5 nm | TE Cooled | UV spectroscopy, fluorescence |
Discuss Research Requirements & Custom Configurations
Provide your spectral range, sensitivity requirements, and integration setup for a tailored specification.
