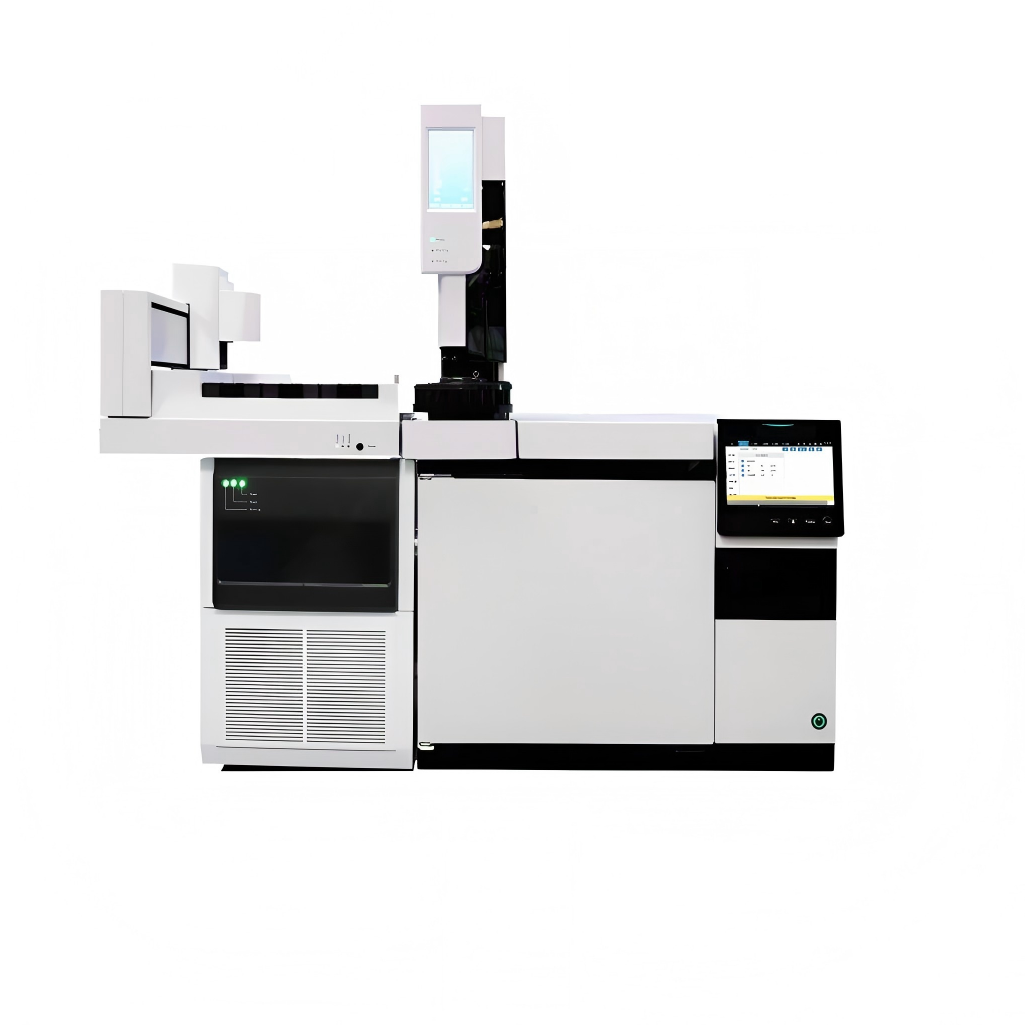

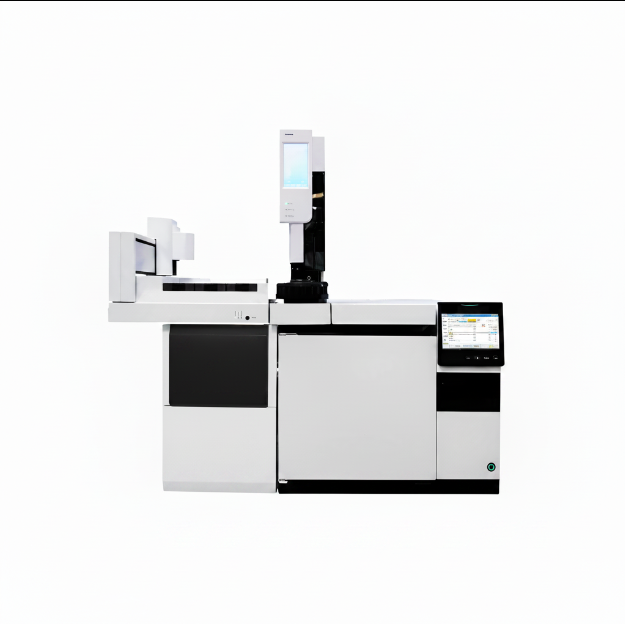

Single Quadrupole GC-MS for Environmental, Food Safety & Pharma Screening

Single Quadrupole GC-MS for Environmental, Food Safety & Pharma Screening

PRIME-GC-SQ Order Guide

Configure your Single Quadrupole GC-MS system in 4 steps. Select options below to build your customized solution.

1
Base System
2
Inlet Options
3
Autosampler
4
Software & Service
1

Select Base System Configuration

Standard
PRIME-GC-SQ Base
Complete single quadrupole system with ceramic ion source, independent pre-quadrupole, and 4G remote connectivity module.
Includes: MS main unit, GC with 0.001psi EPC, ≥250 L/s turbo pump, inert ceramic EI source with dual filament, 13-stage electron multiplier
PRIME-GC-SQ Advanced
Enhanced configuration with extended pressure range (0–150psi), thermostatted quadrupole bake-out, and premium filament package.
Adds: 150psi EPC upgrade, thermostatted quadrupole with bake-out, dual filament backup set, extended warranty on ion source components
2

Configure Inlet System

Inlet Type Max Temp Pressure Range Best For Select
Split/Splitless (Standard) 450°C 0–100 psi General purpose, environmental, food safety ● Included
Split/Splitless (High Pressure) 450°C 0–150 psi Fast GC, narrow bore columns, high-speed analysis ○ Optional

All inlets feature electronic pressure control with ±0.001 psi accuracy and split ratios up to 7500:1.

3

Select Autosampler Configuration

Best Value
150-Position Standard
Dual-tower liquid autosampler with 150×2mL sample positions and synchronized timing injection.
Capacity: 150 samples | Volume: 0.1–250μL | Precision: <1/1000s repeatability
19-Position Priority
Compact autosampler for lower throughput applications or method development workflows.
Capacity: 19 samples | Volume: 0.1–250μL | Best for: R&D, validation labs
4

Software & Support Services

Standard Software Package
PRIME-GC-SQ Qualitative and Quantitative Analysis Software V1.0 with integrated GC/MS control and method development tools.
Features: Scan/SIM simultaneous, auto-tuning, mass calibration, 7-inch touchscreen interface, data workstation included
Compliance Package
Enhanced software with 21 CFR Part 11 compliance features, audit trails, and electronic signatures for pharmaceutical QC.
Adds: User management, audit logging, secure data handling, IQ/OQ documentation

Your Configuration Summary

  • Base SystemPRIME-GC-SQ Base
  • Inlet SystemSplit/Splitless (0–100psi)
  • Autosampler150-Position Dual-Tower
  • SoftwareStandard Analysis Package
  • Key Performance<10 fg IDL, ≥2500:1 S/N @ 1pg OFN
Request Technical Quote

Our applications team will review your configuration and confirm compatibility with your analytical requirements.

Request for Quote
Shipping calculated at checkout.
