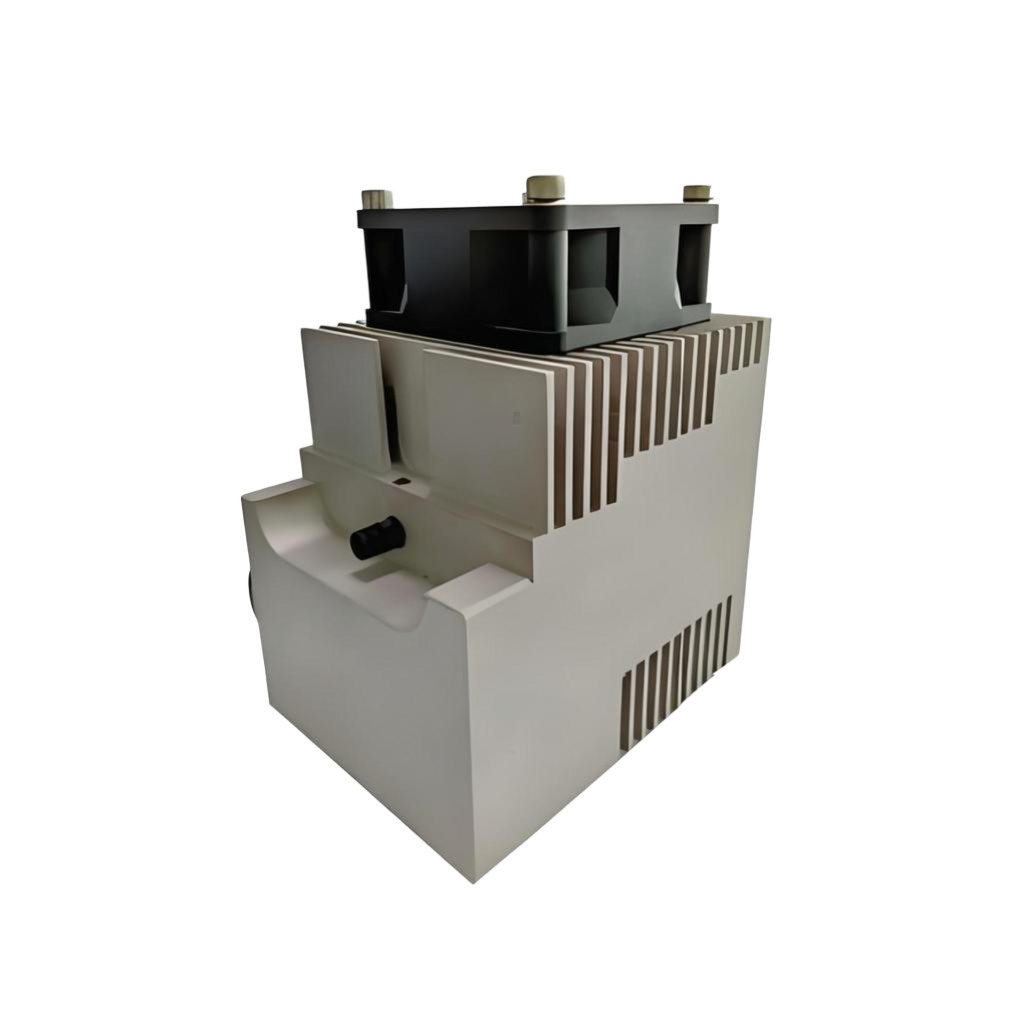

Deuterium Lamp DYM 1000
Deuterium Lamp DYM 1000
Couldn't load pickup availability
Features
High power deuterium light source with fiber coupling output
Easily integrated with spectrometers and other devices
Excellent stability
Default fiber interface is SMA905, other fiber interfaces such as FC etc. are optional
Applications
Environmental inspection: inspection of water quality and air pollution
Spectral analysis
Instrument lighting
Online inspections
R& D in science and technology
| Items | Specifications | Units |
| Wavelength Range | 185–400 | nm |
| Fiber Connector | SMA905 | |
| Power Supply | AC220/0.4 | V/A |
| Trigger Voltage | 2.5 | V |
| Trigger Current | ~3.3 | A |
| Output Drift | 0.16% | Peak–Peak |
| Life Time | 2000 | hrs |
| Dimensions | 105x83x115 | mm |
| Operating Temperature | 0–45 | ℃ |
