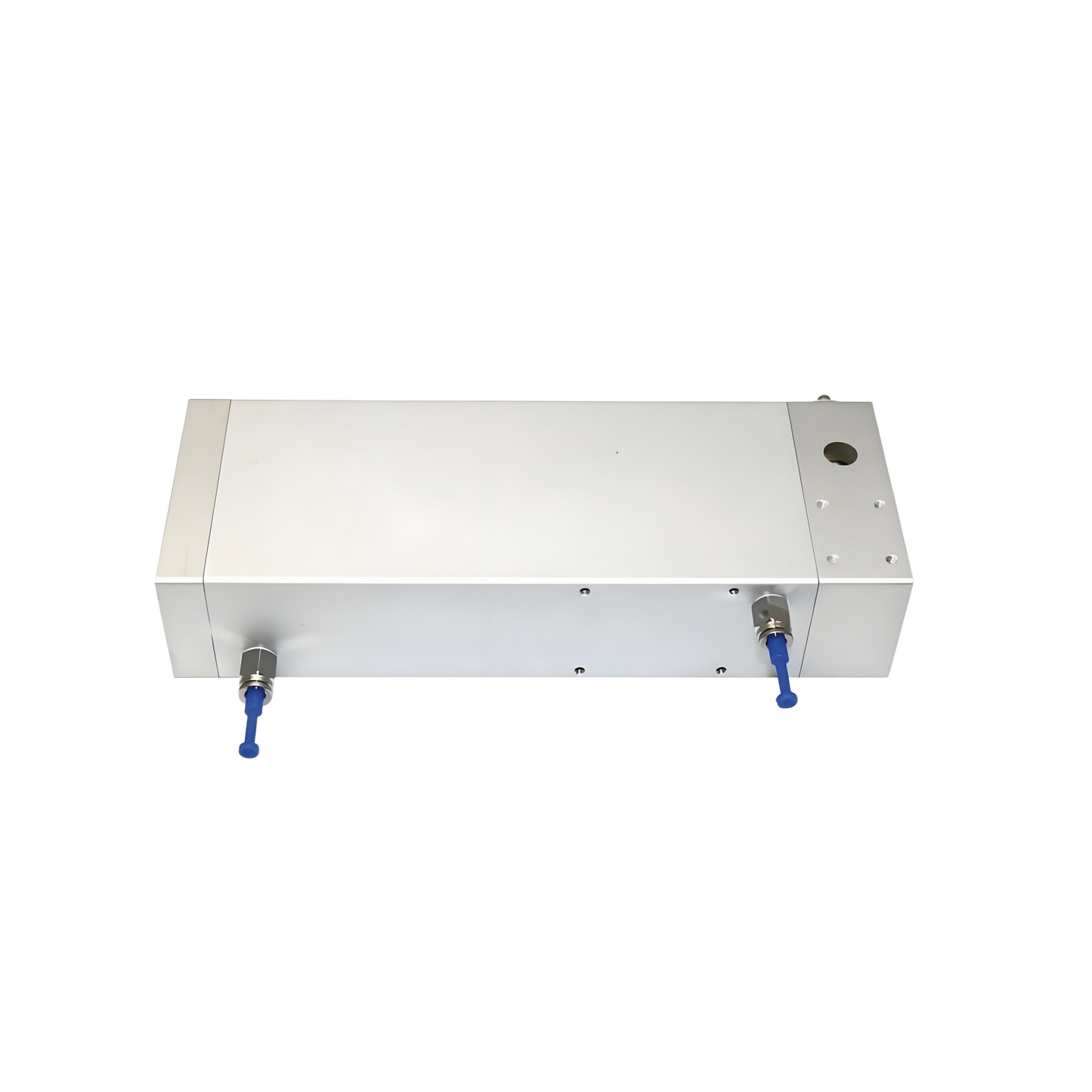

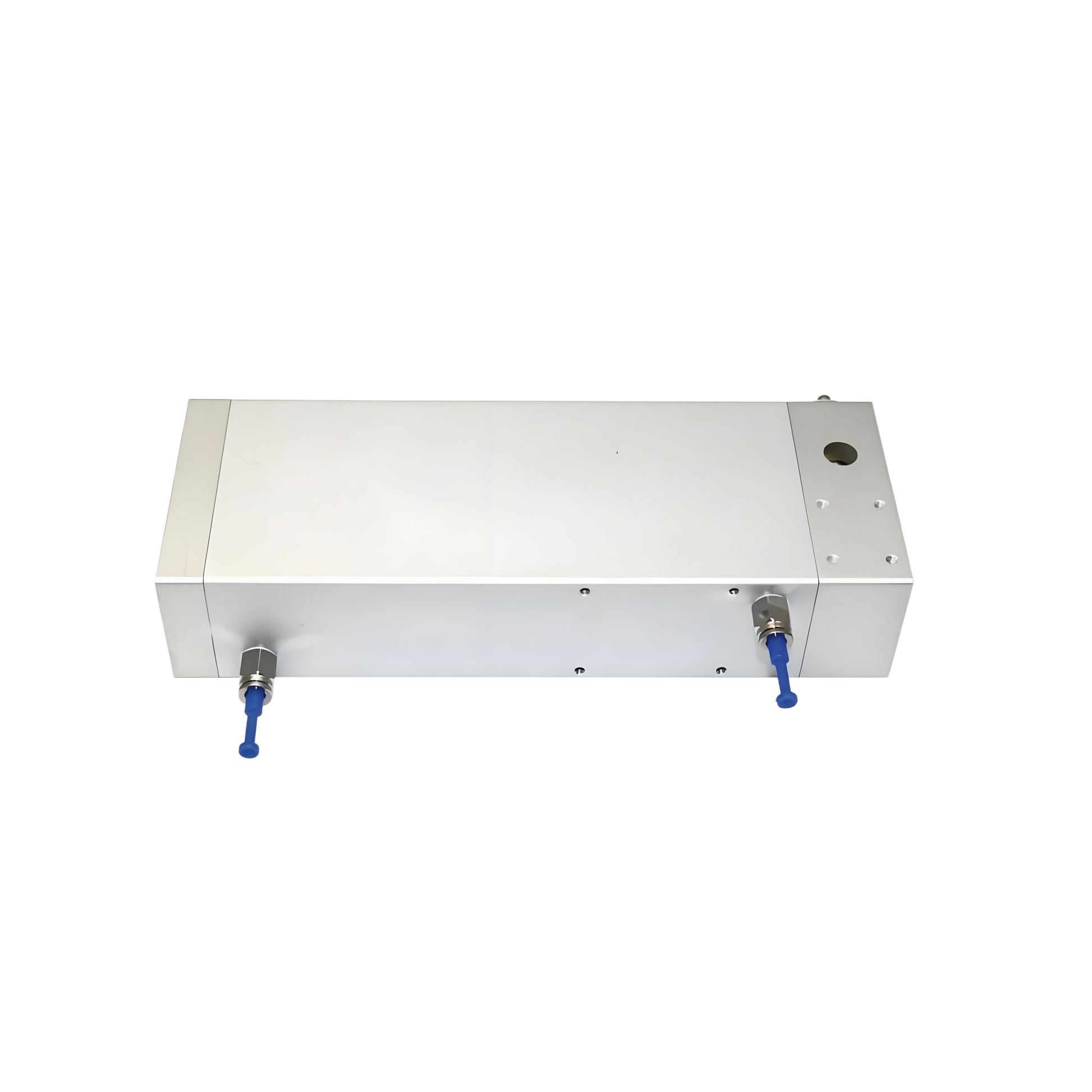

FTIR Optical Gas Cell GCDL3020NR
FTIR Optical Gas Cell GCDL3020NR
Regular price
$0.00 USD
Regular price
Sale price
$0.00 USD
Unit price
per
Couldn't load pickup availability
| Items | Specifications |
| Wavelength Range | 0.8–14 µm (Gold-plated and protective film) |
| Optical Path Length | 2.8m, 3.6m, 4.4m, 5.2m, 6.0m |
| Optical Coupling | Space light |
| External Dimensions | 252.5mm x 88mm x 52mm |
| Pressurization | <0.2Mpa |
| Warming-up time | 30min (Related to the working ambient temperature) |
| Constant temperature | 40℃ |
| Volume | 430ml |
| Air Inlet and Outlet | Ø6mm |
| Cavity Material | Aluminium alloy with anti-corruption treatment |
