Fully Automated QuEChERS Sample Preparation System
Fully Automated QuEChERS Sample Preparation System
Fully Automated QuEChERS Sample Preparation System
Walkaway automation from sample handling to clean extract collection. Minimize manual transfers, improve workflow consistency, and maintain full process traceability.
Why Automate Your QuEChERS Workflow
Manual QuEChERS workflows involve multiple hands-on steps, including sample preparation, solvent addition, salt dispensing, mixing, centrifugation, extract transfer, dispersive solid-phase extraction, evaporation, filtration, and vial preparation.
Each manual step can introduce variability, contamination risk, and documentation gaps. Automation helps laboratories standardize preparation, reduce repetitive pipetting, and improve workflow traceability.
Load samples, select the method, start the run, and collect prepared extracts for downstream analysis.

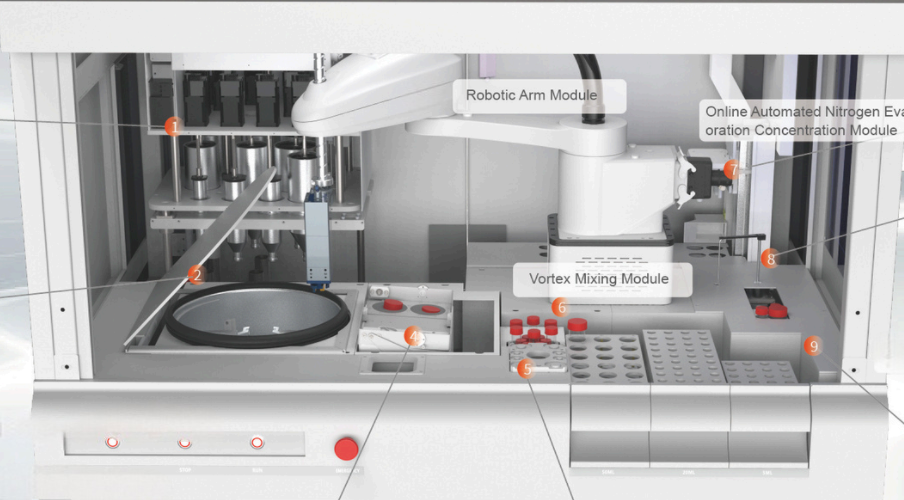

What the System Does
Accommodates up to 48 × 50 mL sample tubes for automated batch processing.
Programmable solvent dispensing and mixing for repeatable extraction workflows.

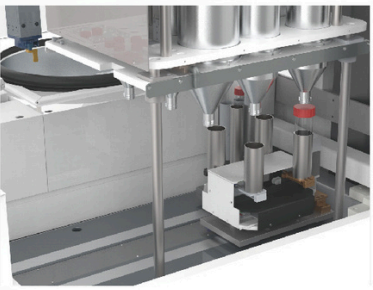

10 independent solid-dosing reservoirs with dosing precision of ≤3 mg.
Processes up to 8 tubes at speeds of up to 10,000 rpm. Refrigerated centrifugation is provided as standard.
Automated dispersive solid-phase extraction using configurable sorbent combinations such as PSA, C18, GCB, and Florisil.
8 independent nitrogen evaporation channels with near-dry detection at ≤30 μL.

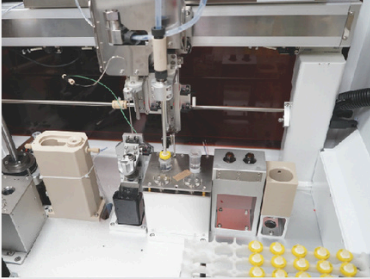

60 filtration positions with 4-channel simultaneous filtration and clog detection. Prepared extracts are collected in 64 autosampler vial positions.
Key Features and Specifications
| Sample capacity | 48 × 50 mL tubes |
| Autosampler vial capacity | 64 positions |
| Solid dosing | 10 independent reservoirs, ≤3 mg precision |
| Centrifugation | 8 tubes, up to 10,000 rpm, refrigerated standard |
| Nitrogen evaporation | 8 independent channels, near-dry detection ≤30 μL |
| Filtration | 60 positions, 4-channel simultaneous filtration, clog detection |
| Workflow control | Programmable methods and process parameters |
| Data export | CSV, PDF, and LIMS-compatible formats |

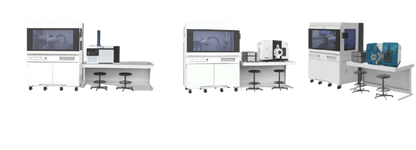

| MS compatibility | Suitable for LC-MS/MS and GC-MS/MS workflows |
Applications
Sample preparation for pesticide residue analysis in fruits, vegetables, grains, tea, and other agricultural products.
Extraction and cleanup workflows for soil, sediment, water, and other environmental matrices.
Automated preparation of feed, feed additives, and ingredient samples for multi-residue analysis.
Sample preparation for pesticide residue and related analytical workflows involving botanical and pharmaceutical products.
Flexible automation for laboratories processing diverse sample matrices and developing or transferring analytical methods.
Compliance and Data Integrity
- Audit trail records workflow steps, parameters, and timestamps
- User access control and event logging
- CSV, PDF, and LIMS-compatible data export
- Traceable sample and process identification
- Touch-screen user interface
Common Questions
What is the sample capacity?
What are the centrifugation capabilities?
How does the solid-dosing system work?
What are the filtration specifications?
Does it work with LC-MS/MS and GC-MS/MS?
What is the nitrogen evaporation capacity?
Can I develop custom methods?
Performance may depend on the sample matrix, consumables, selected method, instrument configuration, and operating conditions. Each laboratory is responsible for method development, verification, validation, and compliance with applicable local requirements before routine use.
Custom method development and application consulting available.
Compatible with LC-MS/MS and GC-MS/MS analytical workflows.
