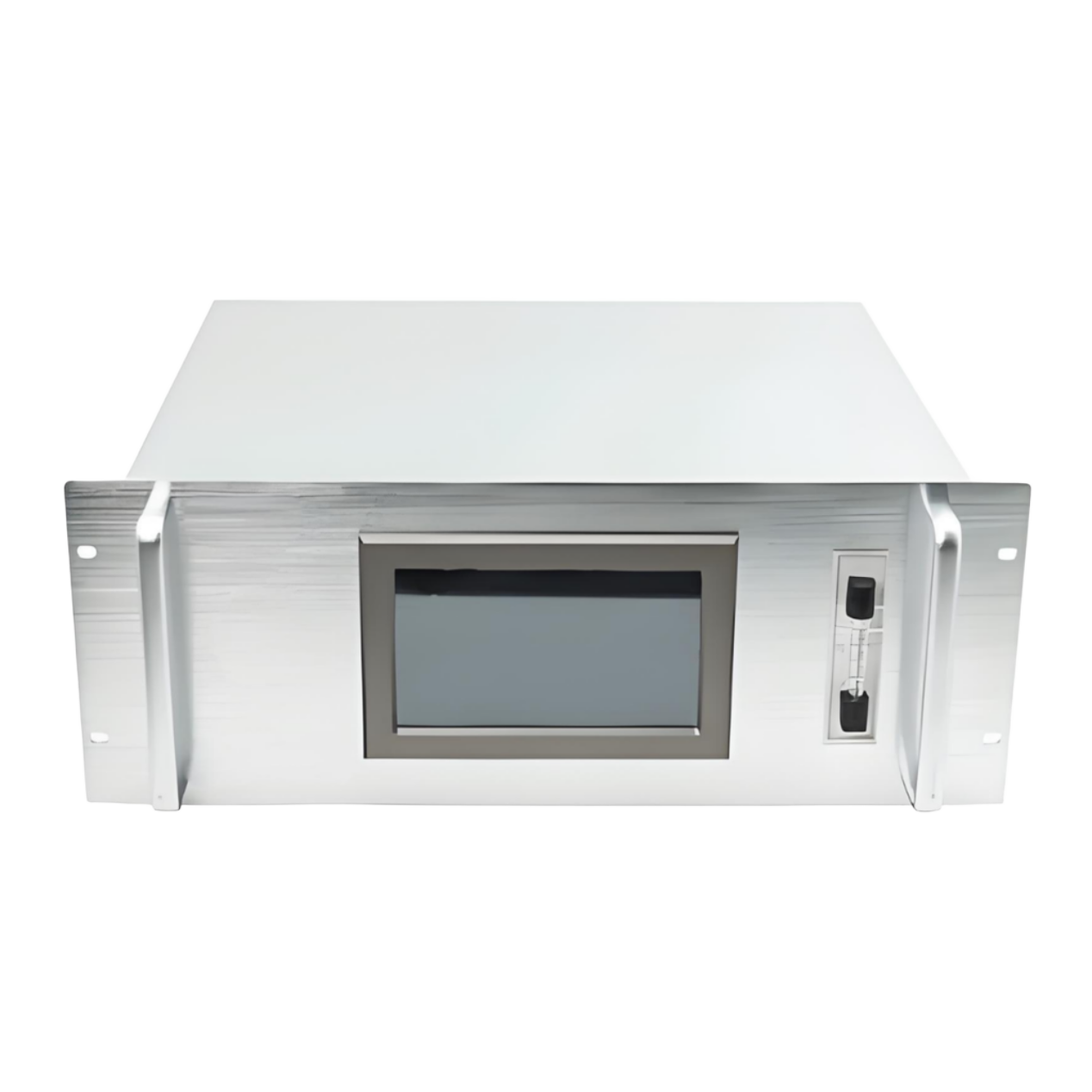

Gas Analyzer GA2000
Gas Analyzer GA2000
Couldn't load pickup availability
Features
Consists of a ultraviolet spectrometer, an optical gas measuring cell, a ultraviolet light source and an algorithm, which have been independently designed and produced by NWSPEC
High resolution
Excellent thermal and vibrating stability
Optional spectral range Optional absorption length
Easy to upgrade through modular design
Easy to do assembly due to compact structure
Applications
Analyzing the gas absorbed using ultraviolet spectrum (such as SO2, NO and NO2 etc.), which is used for monitoring flue gas, automobile exhaust, ship exhaust and odour gas etc.
|
Items |
Specifications |
Remarks |
|
Measurement Gas |
SO2 and NO |
|
|
Measurement Principle |
DOAS: SO₂, NO |
|
|
Measurement Range |
0 ~ 200ppm(SO2,NO) |
|
|
Density Resolution |
SO2/NO:0.01ppm |
|
|
Linearity Error |
≤ ± 1.5%F.S. |
|
|
Repeatability |
≤ ± 0.5%F.S. |
|
|
Zero Drift |
≤ ± 1.5%F.S./7d |
|
|
Measurement Range Drift |
≤ ± 1.5%F.S./7d |
|
|
Response Time |
<30s(T90) |
|
|
Optimum Flow |
1.0L/min |
|
|
Digital Output |
2 source contacts and 3 dry contacts |
|
|
Digital Output Type |
Maximum/minimum, programmable |
|
|
Modbus Digital Output |
Modbus |
|
|
Modbus Digital Output Type |
RS48 (Default)/RS232 (Optional) |
|
|
Software Upgrade |
Using USB |
|
|
Display |
7-inch capacitive touch screen |
|
|
LCD Type |
RGB colour |
|
|
Operation System |
Linux |
|
|
Power Supplier |
220VAC, 50Hz |
|
|
Peak Current |
<2A @ 220V |
|
|
Average Power Consumption |
<60W |
|
|
Atmospheric Pressure |
(86~108)kPa |
|
|
Power Consumption |
200mA/12V |
|
|
Operation Temperature |
0℃ ~ +40℃ |
|
|
Operation Humidity |
0 ~ 95%RH |
|
