Integrating Sphere-Electric Diaphragm/Light Attenuation/Shutter

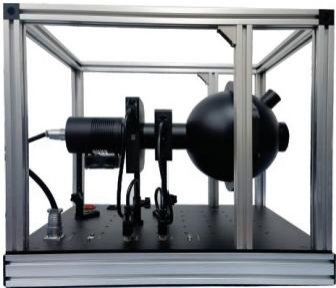

The electric diaphragm, light attenuation, and shutter are a set of accessories used on the light path of the uniform light source integration sphere. Their main function is to adjust the intensity of the light emitted from the light output surface of the integration sphere. The light attenuation is responsible for coarse adjustment of the level, the diaphragm is responsible for continuous fine adjustment, and the shutter is responsible for quickly shutting off or opening the light path, facilitating the switching between bright and dark states. They can be flexibly selected according to actual needs and are matched with the uniform light source control system. Through the upper computer software, they are controlled to output the required brightness.

Technical Specifications:

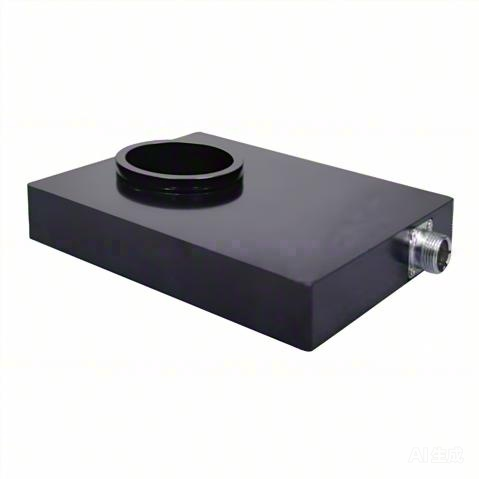

Electric Diaphragm
Aperture Range: 0 - 25mm or 2 - 42mm

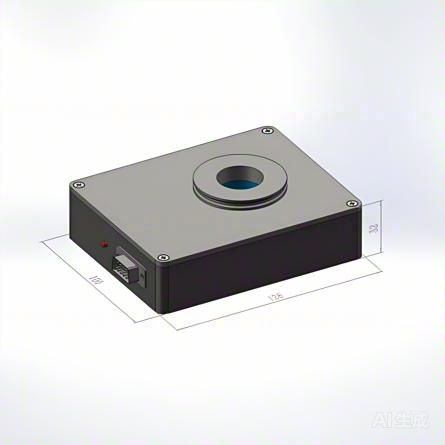

Overall Dimensions: 126*100*32mm (25mm), 130*100*32mm (42mm)

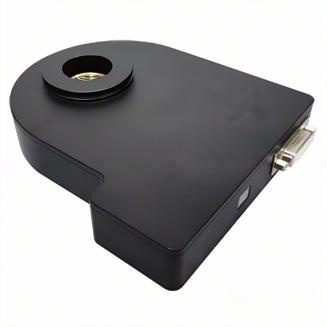

Electric Light Reduction
Number of Stages: 4 or 6

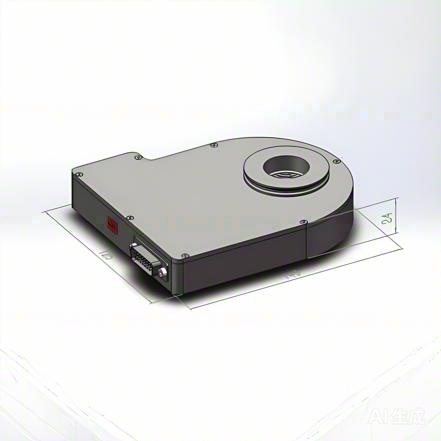

Overall Dimensions: 164*140*24mm (4 stages), 143*125*24mm (6 stages)

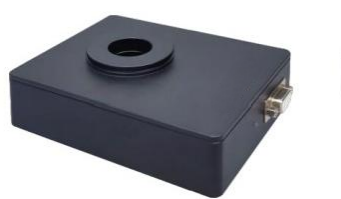

Electric Shutter
Aperture Range: 25mm or 42mm

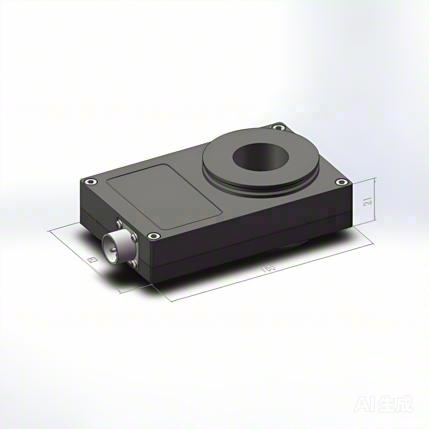

Overall Dimensions: 109*62*23mm (25mm), 133*102*23mm (42mm)
