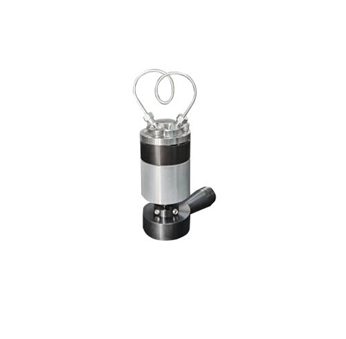

Manual Injection Valve 8725i

The 8725i injection valve is a six-way valve that loads samples through the embedded needle channel in front of the valve. It is made of stainless steel. Its important components such as the rotor and rotor sealing ring are all manufactured by the original factory in the United States Rheodyne. The service life is generally up to 30,000 times, with high cost performance and wide application. The 8725i injection valve has the MBB (non-flowing injection) design, which can well ensure the accuracy, stability and reliability of the analysis results.

Technical Specifications:

1. Pressure Resistance: 37 MPa (5400 psi);

2. Quantitative Ring (optional): 5 μL, 10 μL, 20 μL;

3. Repeatability: < 0.2%;

4. Non-flowing Injection;

5. With position trigger switch (maximum 25V, 100mA);

6. pH Range: 0 - 14;

7. Maximum Temperature: 80℃;

8. Flow Pipe Diameter (mm, inches): 0.5 (0.02);
