The Mini Cell is the most economical approach for obtaining qualitative infrared spectra of liquids. The window fits into one portion of the cell. The second portion is then screwed in to form the seal. The AgCl cell windows each contain a 0.025mm circular depression. The rim of the window is flat to insure proper sealing. Because AgCl cold flows slightly under pressure, a tight seal is formed. The 0.025mm circular depression in each window enables the cell path length to be varied.

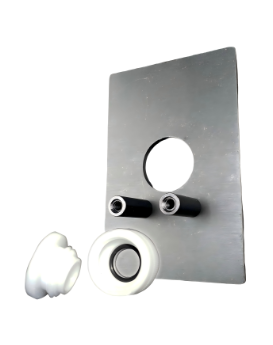

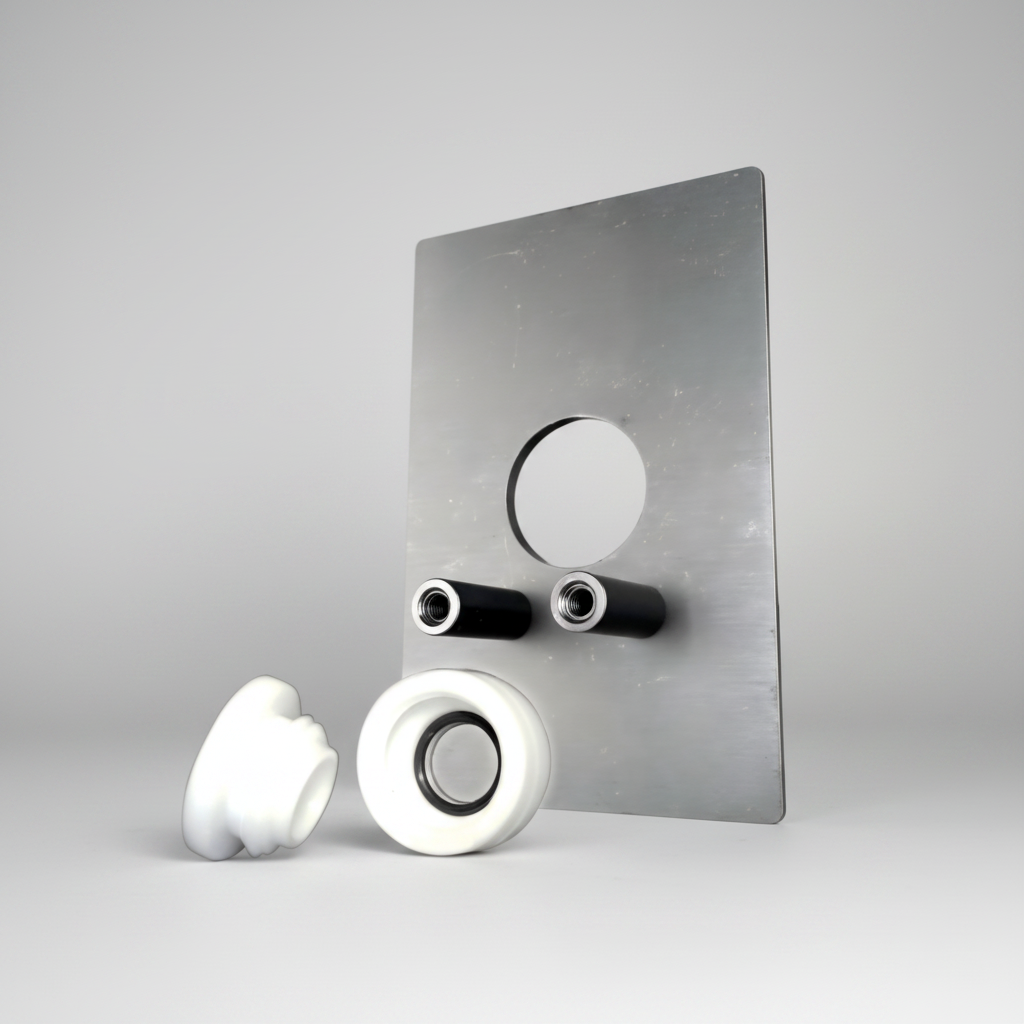

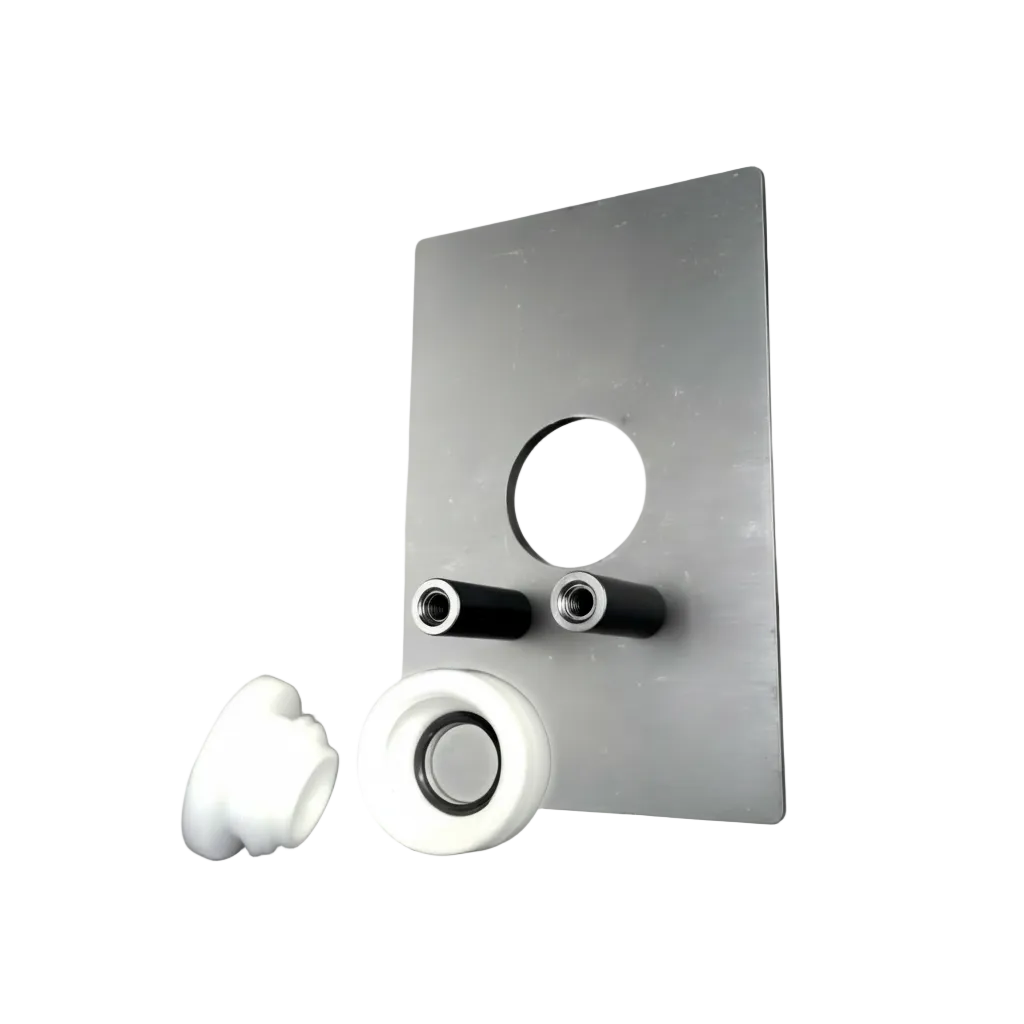

Mini Cell Kit comes Complete with a Delrin cell holder, slide plate holder and six AgCl windows with 0.025mm depression
