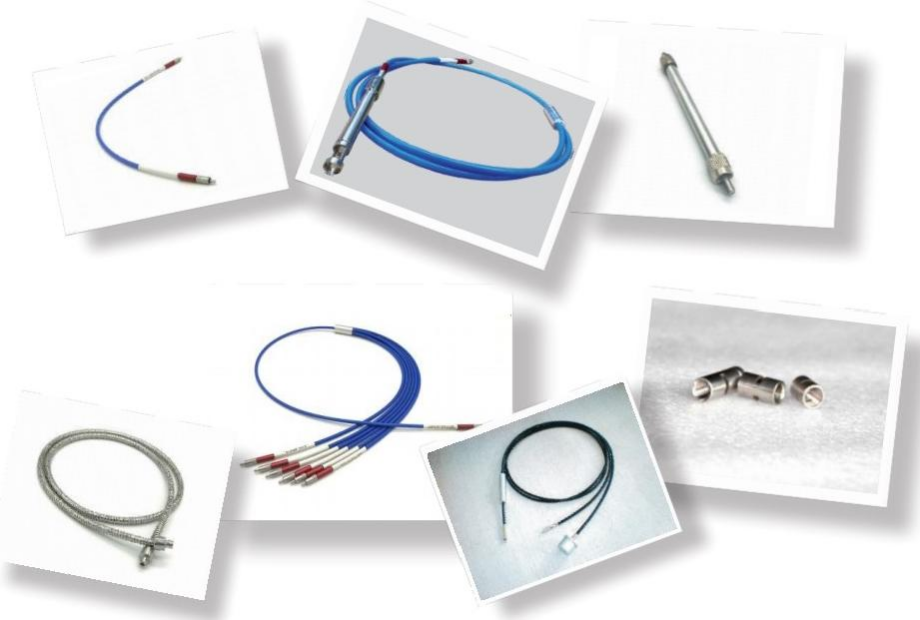

NW Fiber

Optical fibers serve as the primary medium for transmitting optical signals, and high transmission rate and band coverage performance are the main criteria for measurement.

According to the type of optical fiber, the following options are available:

VIS Ordinary Quartz Optical Fiber                           Band range: 300 - 900 nm

UV Ultraviolet Quartz Optical Fiber                         Band range: 250 - 1000 nm

DUV Resistant Ultraviolet Quartz Optical Fiber       Band range: 190 - 1000 nm

NIR Near-Infrared Quartz Optical Fiber                  Anti-radiation attenuation process  Band                                                                                    range: 350 - 2500 nm

According to the type of optical fiber connector, it can provide:

SMA905 interface                            Specialized for common spectral testing equipment

FC interface                                      Specialized for custom-made equipment

TA                                                     A 6.35 mm diameter stainless steel rod

TB                                                     A 10.0 mm diameter stainless steel rod

According to the optical fiber core and the number of cores, it can provide:

Common core diameter                 40um/100um/400um/600um/1000um

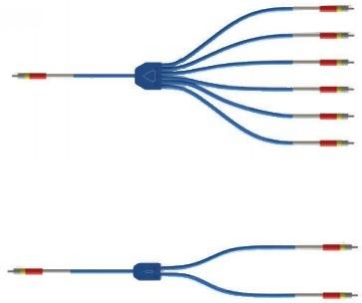

Common core number                   Single-core, dual-core, 7-core
