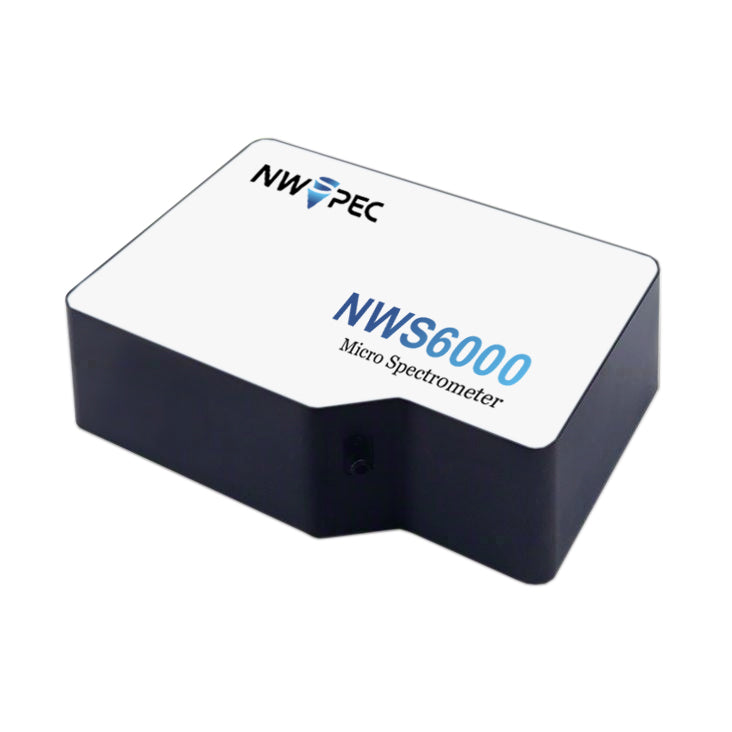

NWS6000 Spectrometer
NWS6000 Spectrometer
Couldn't load pickup availability
Description:
NWS6000: The High-Resolution Spectrometer You Can Scale
The NWS6000 series offers unmatched flexibility: combine multiple units to cover your precise wavelength range, all while maintaining high spectral resolution. Its long optical path, high-groove density grating, and synchronized multi-channel operation deliver the performance of a large benchtop system in a compact, customizable form factor.
Features
- Ultra-High Resolution: Distinguishes closely spaced wavelengths for detailed spectral analysis.
- Flexible Configuration: Modular design allows customization with different gratings, detectors, and light sources.
- High-Speed Data Acquisition: Captures rapid spectral changes for dynamic measurements.
- Synchronous Control: Precisely coordinates measurements with external devices or events.
- Low Stray Light: Minimizes unwanted light for accurate quantitative analysis, especially with weak signals.
- Low Temperature Drift: Ensures stable and reliable performance under varying temperatures.
Resolution
| Wavelength Range | Wavelength Resolution (nm) | 30μm slit | 40μm slit | 50μm slit | 60μm slit | 70μm slit | 100μm slit | 150μm slit | 200μm slit |
| 200-330nm | 0.06 | 0.3 | 0.45 | 0.5 | 0.6 | 0.7 | 1.08 | 1.5 | 2.2 |
| 200-500nm | 0.19 | 0.7 | 1 | 1.2 | 1.4 | 1.9 | 2.7 | 3.85 | 5.5 |
| 380-800nm | 0.25 | 0.9 | 1.1 | 1.2 | 1.85 | 2 | 3.5 | 5.5 | 7.2 |
| 800-900nm | 0.07 | 0.4 | 0.45 | 0.5 | 0.75 | 0.9 | 1.3 | 1.5 | 2.5 |
Application
- Laser Peak Detection
- Gas Absorption Detection
- Raman Spectroscopy Applications
- Environmental Monitoring
- Material Composition Analysis
- Metrology Instrument Applications
- Metal Composition Analysis
- Biological Research
- Gemstone Identification
- LIBS (Laser-Induced Breakdown Spectroscopy),
- Plasma Emission Detection
Specification
| Items | Specification |
| Wavelength Range | 200~1100 nm (Depending on model) |
| Wavelength Resolution | Up to 0.03 nm |
| Optical Resolution | Up to 0.10 nm FWHM (Depending on model) |
| Higher-Order Diffraction Filter | Adds higher-order diffraction filter (Optional) |
| Stray Light | < 0.1 % |
| Detector | |
| Detector Type | Hamamatsu CMOS linear array sensor |
| Detector Wavelength Range | 200~1100 nm |
| Pixel Count | 2048 pixels |
| Pixel Size | 14 µm x 200 µm |
| High Sensitivity | 1300 V/(lx*s) |
| Max Speed | 10 MHz |
| Optical Platform | |
| Optical Path | F/4, Symmetrical Crossed Czerny-Turner |
| Focal Length | 100 mm / 110 mm |
| Input Slit | Regular 30 µm (Optional) |
| Optical Fiber | SMA905 0.22 NA |
| Electrical Specification | |
| Signal-to-Noise Ratio | 1000:1 |
| Linearity | > 99.8 % |
| Integration Time | 0.1 ms - 1 s |
| Dynamic Range | 1000000 |
| AD | Lossless 16-bit |
| Testing Speed | 2.8 ms + Integration Time |
| Communication Interface | USB 2.0 / RS232 / RS485 |
| Expansion Interface | 16-PIN external expansion interface; with external trigger function |
| Power Consumption | 300 mA @ 5 VDC |
| Physical Specification | |
| Supported Systems | Windows / Android / Linux / Wince |
| Dimensions (L x W x H) | 157 mm x 110 mm x 50 mm |
| Weight | 1150 g |
| Fixing/Mounting | 3-Direction Standard Mounting Holes |
