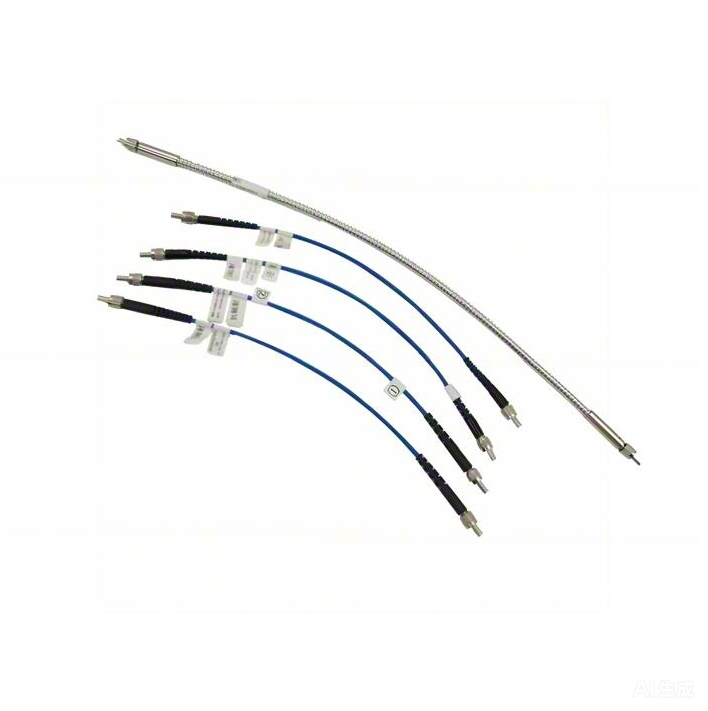

Optical Fiber 400μm Blue PVC 0.27m

Optical Fiber 400μm Blue PVC 0.27m

Fiber Optic Patch Cord

High-Performance Optical Transmission Solutions

Precision-engineered fiber optic patch cords designed for reliable optical signal transmission in spectroscopy, industrial inspection, and laboratory applications. Available in multimode and single mode configurations with customizable core diameters and armoring options.

Key Features

Fiber Type: Multimode or single mode fiber options
Protection: Stainless steel armored or PVC sleeve
Performance: Low optical loss for stable transmission
Core Range: 50-800 μm fiber cores (optional)
Length: 0.2 to 2 meters (optional)

Applications

Spectral Analysis
Material Inspections
Online Inspections
R&D in Science & Technology

Order Configuration

Configuration Options
Fiber Mode Multimode (MM) / Single Mode (SM)
Fiber Core 50 μm / 105 μm / 200 μm / 400 μm / 600 μm / 800 μm
Cable Length 0.2m / 0.5m / 1.0m / 1.5m / 2.0m (custom available)
Protection PVC Sleeve / Stainless Steel Armored
Connector FC/PC / FC/APC / SMA905 (custom available)

Model Number Guide

Format: FPC-[Mode]-[Core]-[Length]-[Protection]-[Connector]

Example: FPC-MM-200-1M-SS-FC
(Fiber Patch Cord, Multimode, 200μm core, 1 meter, Stainless Steel, FC connector)

Quick Selection Reference

Model Mode Core Length Protection
FPC-MM-50-1M-PVC Multimode 50 μm 1.0 m PVC
FPC-MM-200-2M-SS Multimode 200 μm 2.0 m Armored
FPC-SM-9-1M-PVC Single Mode 9 μm 1.0 m PVC
FPC-MM-400-05M-SS Multimode 400 μm 0.5 m Armored

Technical Notes

  • Standard connector: FC/PC (Flat Contact) with ceramic ferrule
  • Insertion loss: <0.3 dB typical
  • Return loss: >50 dB (UPC), >60 dB (APC)
  • Operating temperature: -20°C to +70°C
  • Custom configurations available upon request

Need a custom configuration? Contact our sales team for OEM/ODM options.
