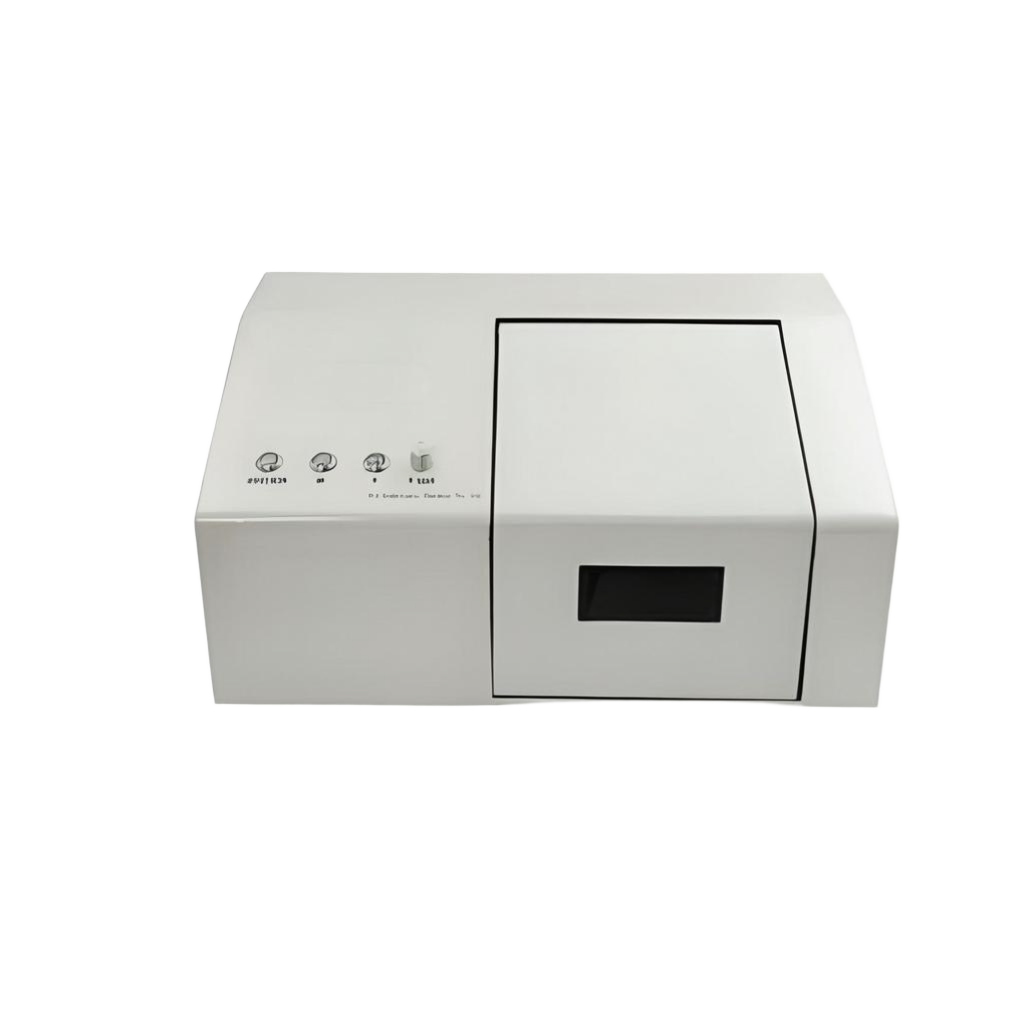

Optical Transmittance/Reflectivity Inspector NW-SPM-D2T
Optical Transmittance/Reflectivity Inspector NW-SPM-D2T
Couldn't load pickup availability
Features
Excellent thermal and vibrating stability
Excellent structure design
Precision dual-optical-path system
Unique design of reflective collimation optics avoiding chromatic error
Measurements of transmittance and reflectance of samples
Powerful data processing makes full use of the measurement results and edition more simply and quickly
Excellent wavelength accuracy and repeatability
Operate conveniently and maintenance easily
Applications
Optical coating inspection
Auto dimming film inspection
Glass inspection
R&D in science and technology
| Items | Specifications |
| Wavelength Range | 190–800nm |
| Spectral Resolution | FWHM0.84nm @ 577nm @ 25 μm |
| Stray Light | 0.06% @ 532nm/0.045% @ 785nm |
| Integration Time | 8ms–15min |
| Power Supply | 220V/0.7A |
| Communication | USB |
| Spectrometer Configuration | Auto configuring, including reading of calibration coefficients and products' information etc. |
| Data Output | Count vs. wavelength or pixel |
| Operating Software | SPEC–GLA600 (by Glit) |
| Dimensions | 450mmx300mmx207mm |
| Weight | ~6.5Kg |
| Operating Temperature | 0–45 °C |
