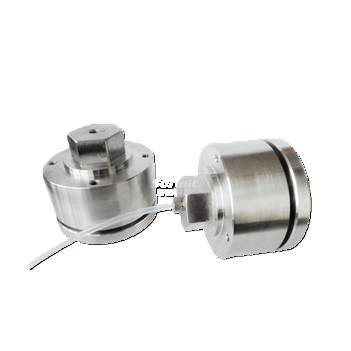

Pressure-resistant online filter

In HPLC, contamination at the inlet end of the chromatographic column often leads to an increase in column pressure and a decrease in column efficiency. Micro-pore columns are particularly prone to clogging due to the small diameter of the filter element at the injection port.

Selecting the appropriate filter in the liquid chromatography system will help prevent clogging. in conjunction with the new LC-10Tvp preparative liquid chromatography instrument, has launched a pressure-resistant filter, including filter elements, plugs, brackets, and is also applicable to other HPLC preparative systems.

Principle:

By controlling the particle size, a physical filtering effect is achieved to eliminate the influence of substances with diameters larger than the filter aperture on the system.

The notable advantages are:

1. It can be used together with columns from all different manufacturers;

2. The filter sheets can be cleaned and reused;

3. Purchase once and use for a long time.

Parameters:

Pressure resistance: 20 MPa.

Dead volume: 2.8 ml.

Filter element particle size: 1 μm.

Filtering accuracy: 2 - 5 μm

Suitable flow rate: 1 - 1000 ml/min

Matching pipeline: 1/8 pipe

Stainless steel, automatic
