Raman probe NW-RP-785
Raman probe NW-RP-785
Couldn't load pickup availability
Description

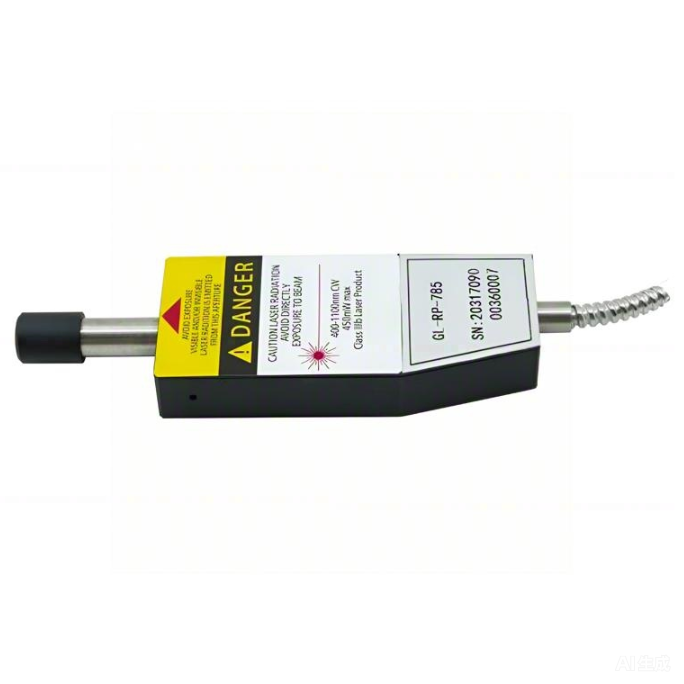

The NW-RP-785 Raman probe is designed for versatile Raman spectroscopy measurement and analysis of solid, liquid, and powder materials. It enables direct, non-contact, fast, and accurate material analysis. Customization options are available upon request.
Features
Broad Laser Compatibility: Accommodates 532nm, 785nm, 830nm, and 1064nm lasers.
Versatile Applications: Suitable for solid, liquid, and powder materials.
Direct Analysis: Enables direct, non-contact measurements.
Customization Options: Available upon request to meet specific application requirements.
Applications
Raman Spectroscopy
Material Analysis
Solid, Liquid and Powder Characterization
Quality Control
Research and Development
Specificaiton
| Items | Specifications |
| Excitation Wavelength | 532nm, 785nm, 830nm, 1064nm |
| Working Distance of Raman Focus | ~4mm (accept cutomized) |
| Raman Spectrum | Depending on the filters (accept customized) |
| Laser Input Connector | FC/PC |
| Raman Signal Output Connector | SMA905 |
| Filter for Rayleigh’s Scattering | >OD6 (depending on the filters) |
| Probe Fiber | 1M armed |
| Operating Temperature | 0–45°C |
| Storage Temperature | -10–55°C |
