Buck Scientific
Regulator, Nitrous Oxide
Regulator, Nitrous Oxide

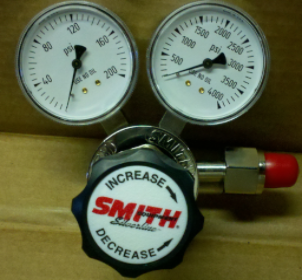

Nitrous Oxide Pressure Regulator for use with Buck Scientific Atomic Absorption Spectrophotometers.
Part Number: BS303-0204
Features
- Filtered Seat (10 micron) for added gas stream purity and extended service life.
- Convoluted Stainless Steel Diaphragms (302 SS) provide precise pressure control.
- Large, 2½" Nickel-Plated Brass Gauges for accurate, easy reading.
- Outlet Needle Valve.
- Preset Safety Relief Valve prevents excessive pressure buildup.
- Encapsulated Filtered Seat Assembly protect parts, extend service life.
- Chrome Nickel-Plated Bar Stock Body provides long-lasting good looks - will not tarnish.
- Two (2) 10-32 Taps for rear mounting.
Specifications
- Maximum Inlet Pressure: 3,000 psig
- Maximum Rated Inlet Pressure: 3,500 psig
- Capacity: 1,720 scfh @ Max Delivery Pressure
- Delivery Gauge Range: 0 - 400 psig
- Outlet Pressure Ranges: 0 - 250 psig
- Flow Capacity: Cv= 0.17
- Ports: 1/4" FNPT
- Weight: 3.5 lbs
- Designed Leak Rate: Bubble-Tight (helium)
- Ambient Operating Temperature: -40° F to +165° F
- Decay Inlet Characteristic: 1.8 psi/100 psi
- Body: Chrome Nickel-Plated Brass
