Standard Type 1 Glass Cuvette

Our cuvettes are heat fused for a longer life, and come with a one year warranty. Satisfaction guaranteed!

The Wavelength range for Optical:

Glass: 334-2300nm; Quartz: 220-3800 nm; Infrasil: 220nm-3800nm

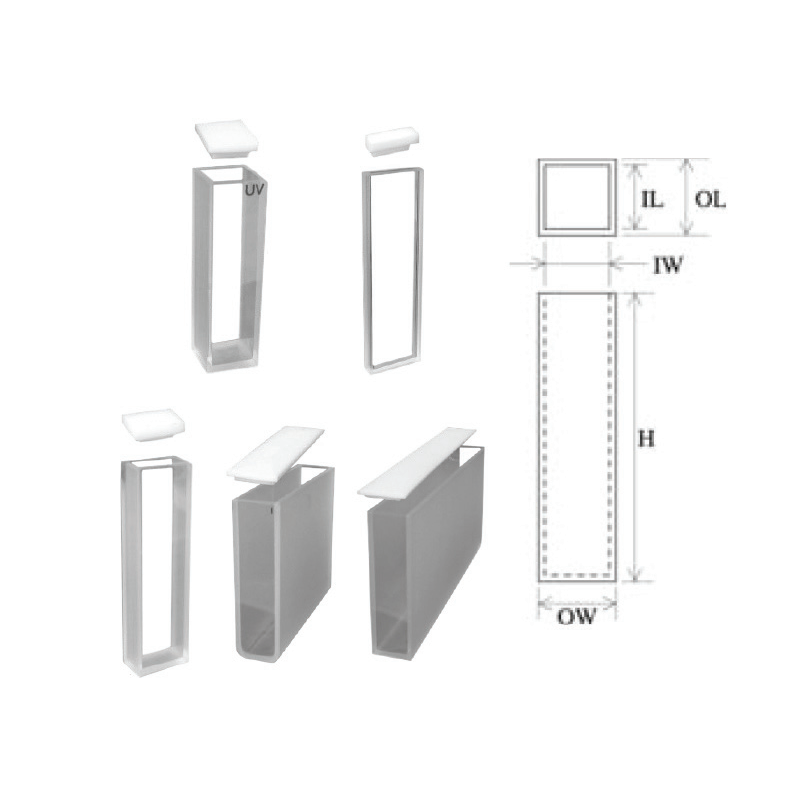

Type 1 List

P/N	Height/mm	Width/mm	Path Length/mm	Capacity/ml
1-G-1	45	12.5	1	0.4
1-G-2	45	12.5	2	0.7
1-G-5	45	12.5	5	1.7
1-G-10	45	12.5	10	3.5
1-G-20	45	12.5	20	7
1-G-30	45	12.5	30	10.5
1-G-40	45	12.5	40	14
1-G-50	45	12.5	50	17.5
1-Q-1	45	12.5	1	0.4
1-Q-2	45	12.5	2	0.7
1-Q-5	45	12.5	5	1.7
1-Q-10	45	12.5	10	3.5
1-Q-20	45	12.5	20	7
1-Q-30	45	12.5	30	10.5
1-Q-40	45	12.5	40	14
1-Q-50	45	12.5	50	17.5
1-I-1	45	12.5	1	0.4
1-I-2	45	12.5	2	0.7
1-I-5	45	12.5	5	1.7
1-I-10	45	12.5	10	3.5
1-I-20	45	12.5	20	7
1-I-30	45	12.5	30	10.5
1-I-40	45	12.5	40	14
1-I-50	45	12.5	50	17.5

Type 1 Glass Cuvette with 2mm path length and 0.7ml capacity.

• Height: 45mm
• Width: 12.5mm
• Path Length: 2mm
• Capacity: 0.7ml
• P/N: 1-G-2

Our cuvettes are heat fused for a longer life, and come with a one year warranty.

Type 1 Glass Cuvette with a 5mm path length and a 1.7ml capacity.

• Height: 45mm
• Width: 12.5mm
• Path Length: 5mm
• Capacity: 1.7 ml
• P/N 1-G-5

Our cuvettes are heat fused for a longer life, and come with a one year warranty.

Type 1 Glass Cuvette with a 10mm path length and 3.5ml capacity.

• Height: 45mm
• Width: 12.5mm
• Path Length: 10mm
• Capacity: 3.5ml
• P/N: 1-G-10

Our cuvettes are heat fused for a longer life, and come with a one year warranty.

Type 1 Glass Cuvette with a 20mm path length and 7.0ml capacity.

• Height: 45mm
• Width: 12.5mm
• Path Length: 20mm
• Capacity: 7.0ml
• P/N: 1-G-20

Our cuvettes are heat fused for a longer life, and come with a one year warranty.

Type 1 Glass Cuvette with a 30mm path length and 10.5ml capacity.

• Height: 45mm
• Width: 12.5mm
• Path Length: 30mm
• Capacity: 10.5ml
• P/N: 1-G-30

Our cuvettes are heat fused for a longer life, and come with a one year warranty.

Type 1 Glass Cuvette with a 40mm path length and 14.0ml capacity.

• Height: 45mm
• Width: 12.5mm
• Path Length: 40mm
• Capacity: 14.0ml
• P/N: 1-G-40

Our cuvettes are heat fused for a longer life, and come with a one year warranty.

Type 1 Glass Cuvette with a 50mm path length and 17.5ml capacity.

• Height: 45mm
• Width: 12.5mm
• Path Length: 50mm
• Capacity: 17.5ml
• P/N: 1-G-50

Our cuvettes are heat fused for a longer life, and come with a one year warranty.
