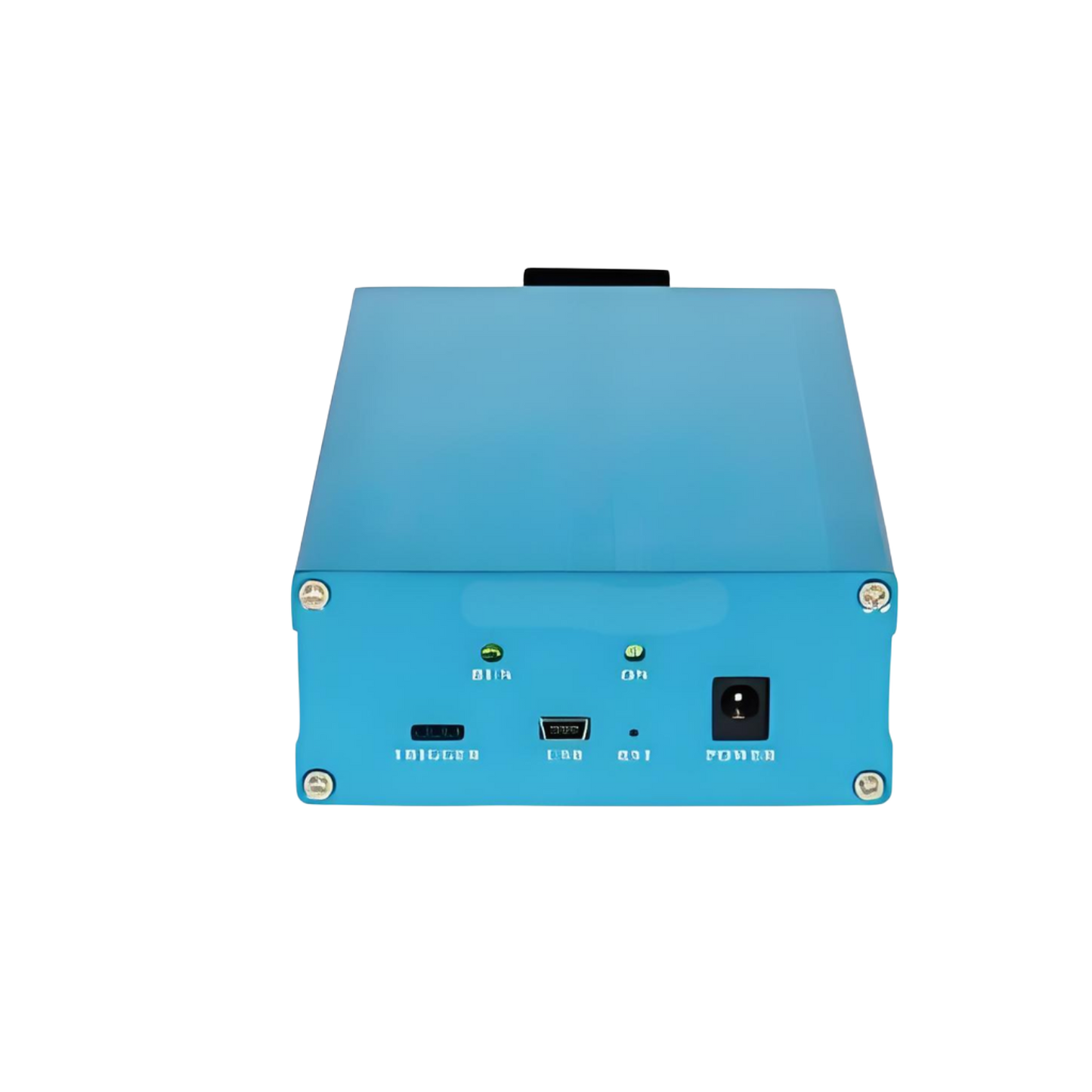

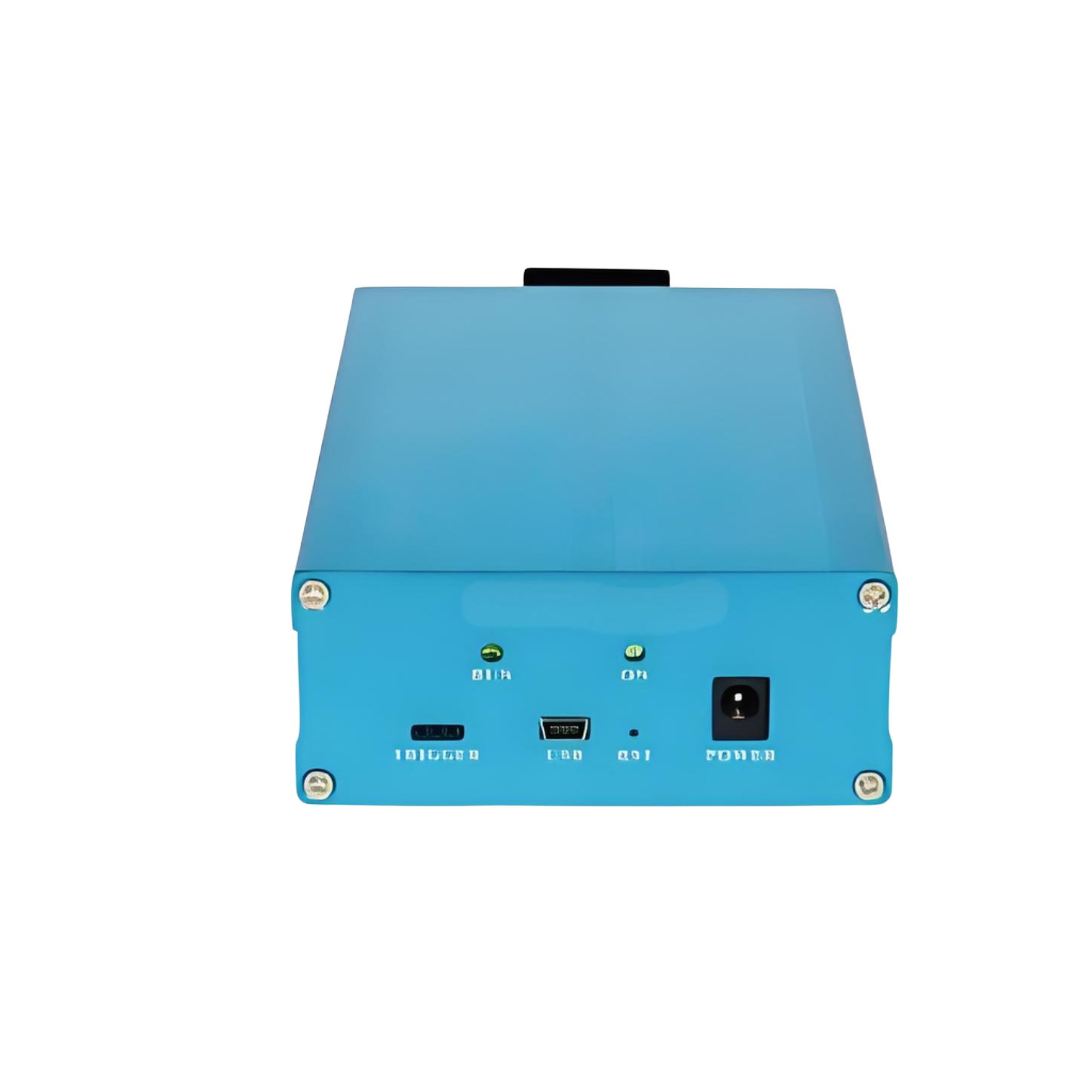

White LED Light Source NW-LEDW-3W
White LED Light Source NW-LEDW-3W
Couldn't load pickup availability
Features
White light with fiber-coupled output
Three operating modes: continuous, pulse and external trigger
Easily integrated with spectrometers and other devices
Excellent stability
Default fiber interface is SMA905, other fiber interfaces such as FC etc. are optional
Applications
Instrument lighting
Spectral analysis
Material inspections
Online inspections
R& D in science and technology
| Items | Specifications | Units |
| Wavelength Range | 410–700 | nm |
| Fiber Connector | SMA905 | |
| Output Power | 0–2 (Depending on the output optical coupling structure) | mW |
| Output Stability | 0.31% | |
| Adjustable Light Intensity | 0–100% | |
| Power Supply | DC5/0.6 | V/A |
| Warm up Time | 10 | S |
| Control | PC | |
| Communication | USB | |
| Lifetime | 20,000 | hrs |
| Cooling | Built-in TEC, with an outside heat sink | |
| Dimensions | 150x97x40 | mm |
| Weight | 470 | g |
| Storage Temperature | –20–70 | °C |
