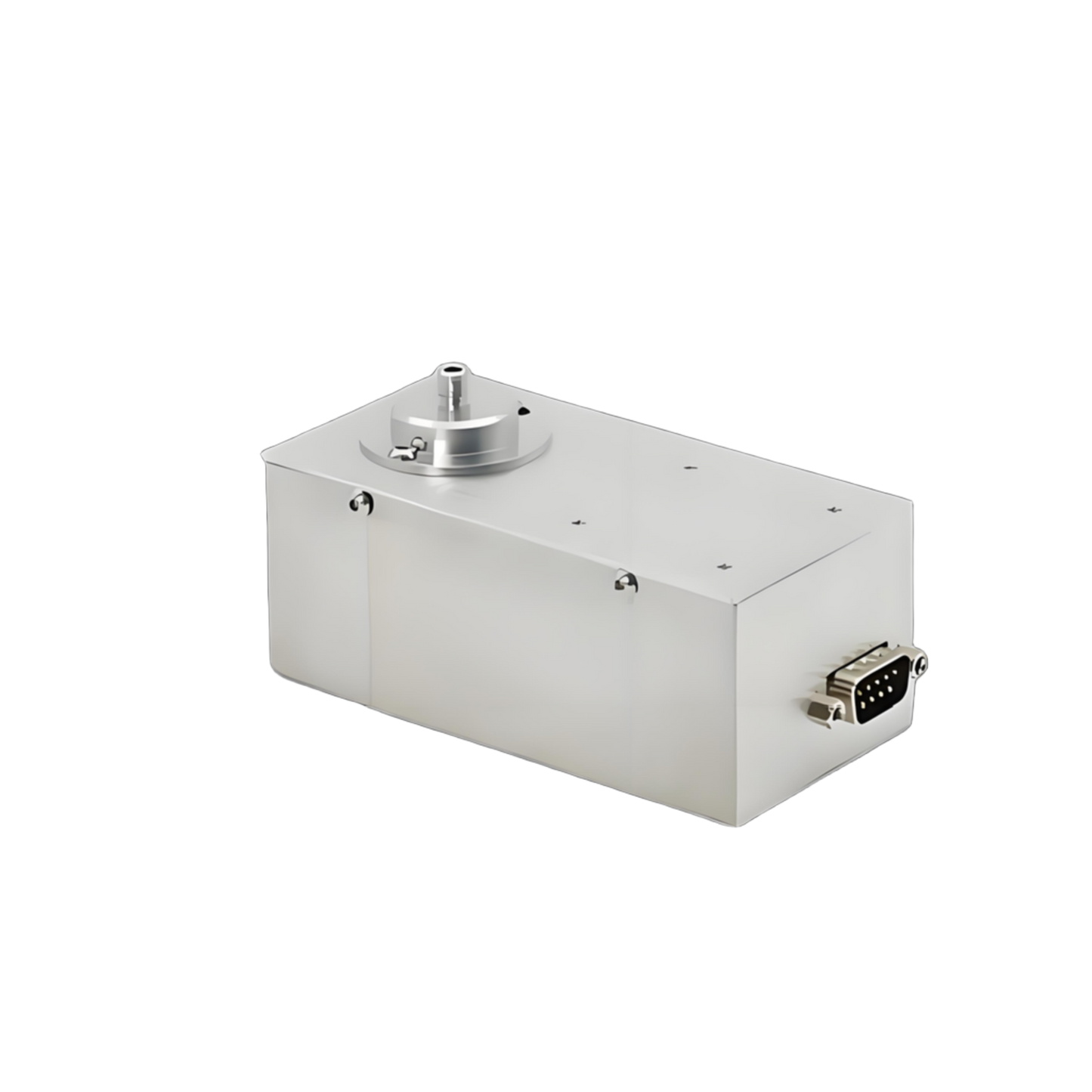

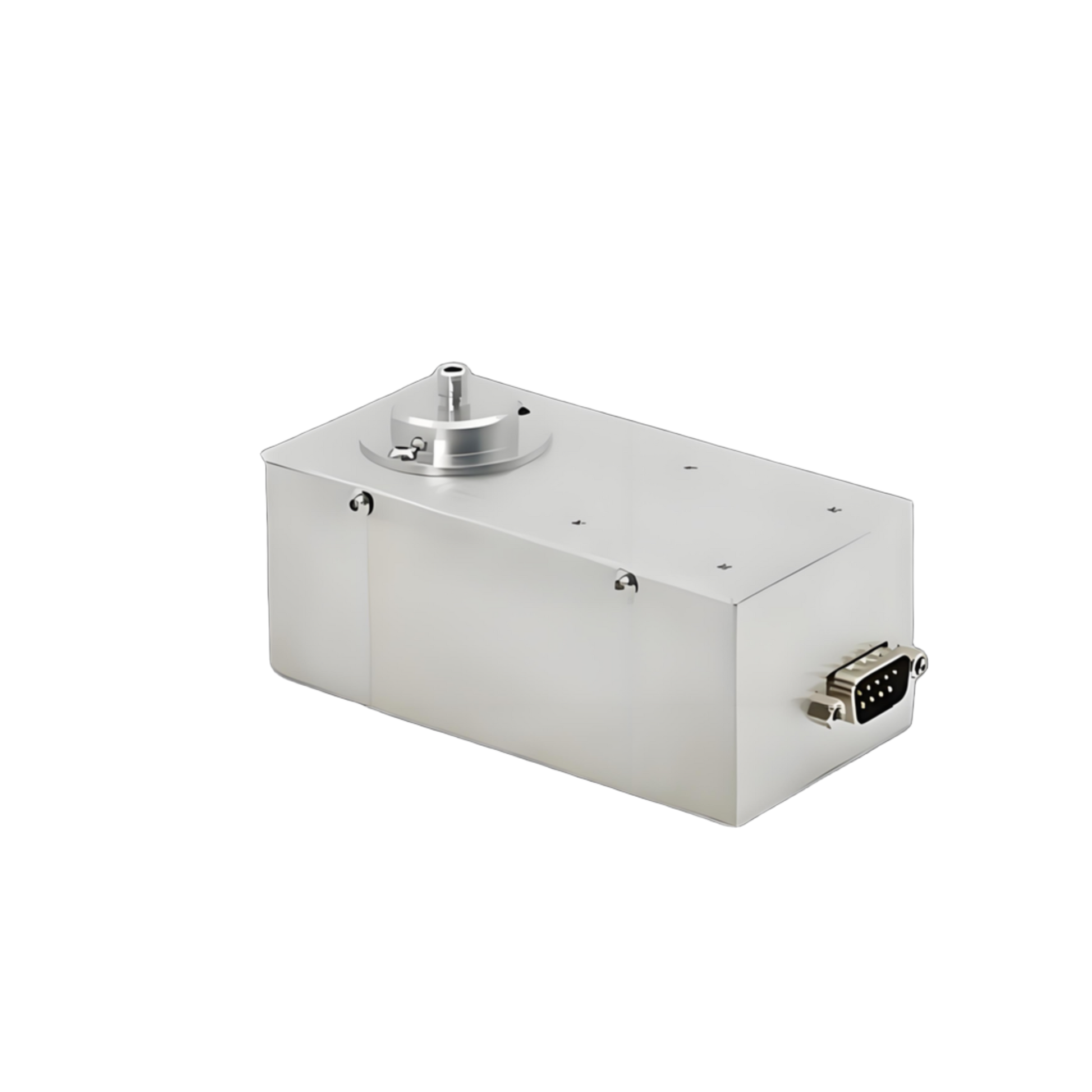

Xenon Lamp XYM1010
Xenon Lamp XYM1010
Couldn't load pickup availability
Features
Xenon light source with fiber coupling output
Works in pulse mode with adjustable repetition
Easily integrated with spectrometers and other devices
Excellent stability
Default fiber interface is SMA905, other fiber interfaces such as FC etc. are optional
Applications
Environmental inspection: inspection of water quality and air pollution
Spectral analysis
Instrument lighting
Online inspections R& D in science and technology
| Items | Specifications | Units |
| Wavelength Range | 185–2000 | nm |
| Fiber Connector | SMA 905 | |
| Power Supply | DC12/2 | V/A |
| Lamp Power | 10 | W |
| Pulse Repetition | Max 100 | Hz |
| Trigger Input Resistance | 330 | Ω |
| Stability | 2.50% | |
| Life Time | 10⁹ | times |
| Dimensions | 110x71x43 | mm |
| Operating Temperature | 0–45 | ℃ |
