NWSPEC
NW-HPLC 6000
NW-HPLC 6000
Couldn't load pickup availability

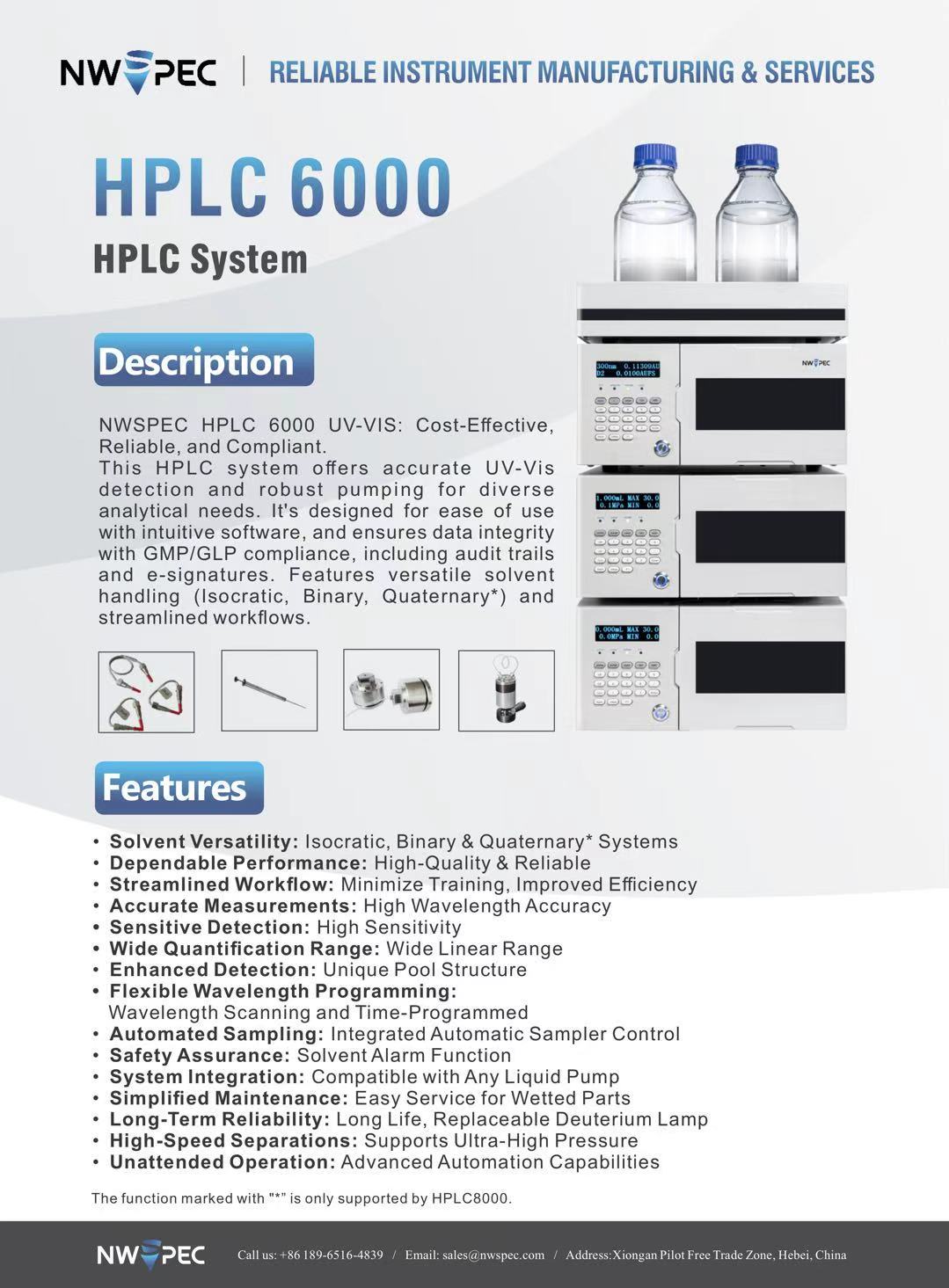

Description

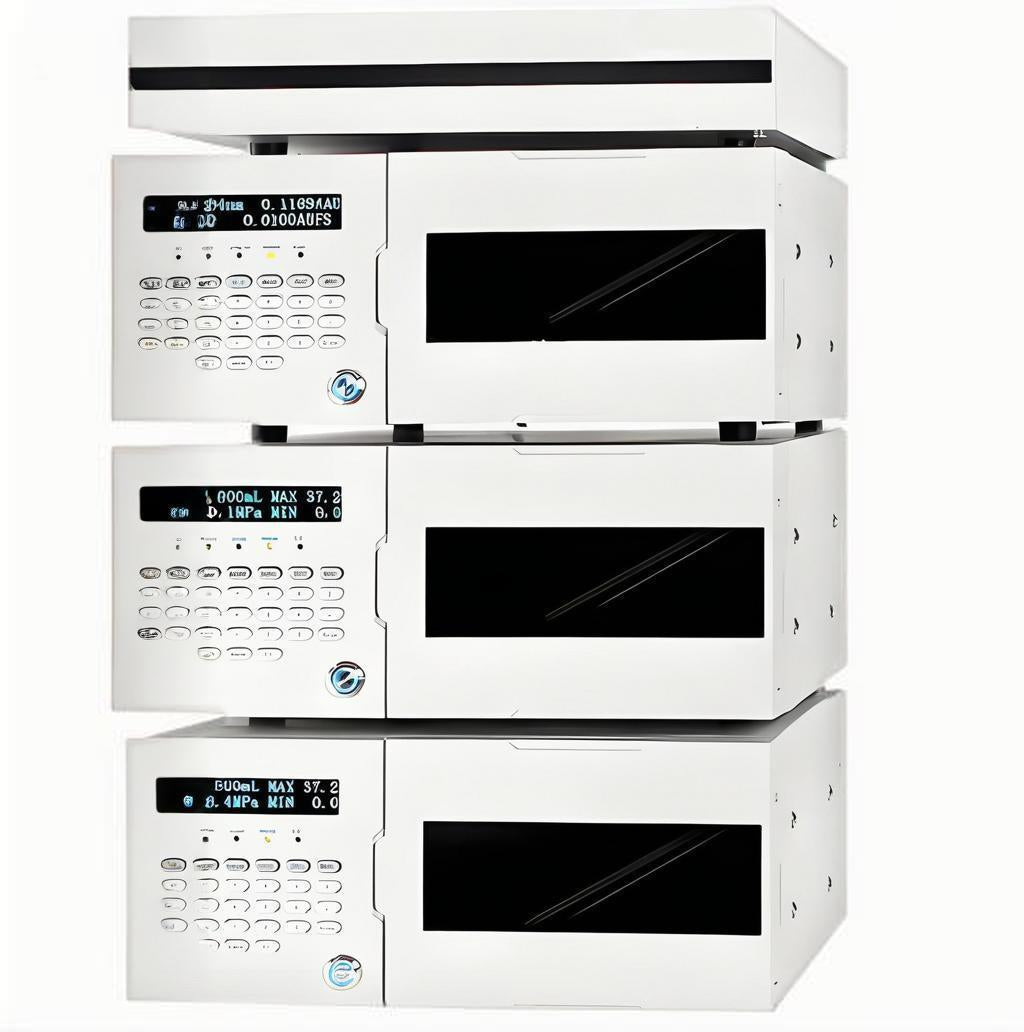

The NWSPEC HPLC 6000 UV-VIS is a cost-effective, reliable, and practical HPLC system designed for a wide range of analytical applications. Its high-performance UV-Vis detector, coupled with a robust pump, provides accurate and sensitive results. Compliant with GMP/GLP, ISO9001, and 21 CFR Part II, the HPLC6000 includes Surwit Chromatography Data System (Software).
Features
· Compatible with any liquid pump
· High Wavelength Accuracy
· High Sensitivity
· Wide Linear Range
· Cost-Effective and Reliable
· Practical and Economic
· Compliant with GMP/GLP, ISO9001, 21 CFR Part II
· Surwit Chromatography Data System (Software) Included
· Unique Pool Structure for Accuracy and Sensitivity
· Easy Maintenance and Service for All Wetted Parts
· High-Quality Structure
· Long Life Deuterium Lamp
· Easily Replaceable Lamp
· Advanced Design
|
LC Liquid Pump |
|||
|
Infusion way |
Series dual-plunger pump |
Pressure Accuracy |
± 2% |
|
Flow Rates |
0.001 ~9.999 ml/min |
Flow Accuracy |
≤0.5% |
|
Pressure |
0 - 9999 psi |
Flow Precision |
≤0.2% RSD |
|
Pulsation |
<15psi from 600 to 1,600 psi, Flow 1mL/min |
Operating Temperature |
4~40℃ |
|
Dimensions |
130H x 260W x 420 D, (mm) |
Weight. |
11 kg |

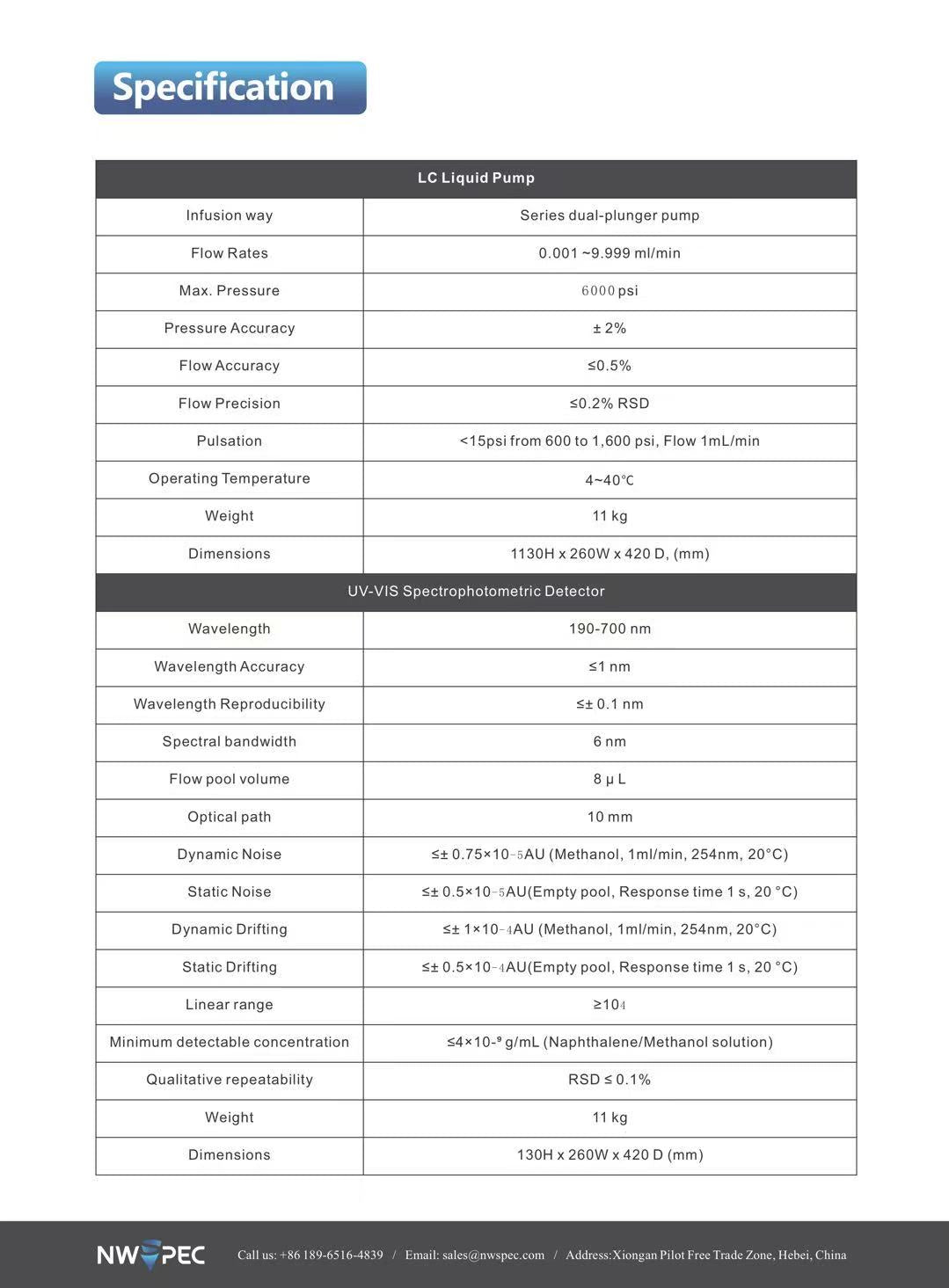

Specification
UV-VIS Spectrophotometric Detector
|
Wavelength |
190-700 nm |
Spectral bandwidth |
6 nm |
|
Wavelength Accuracy |
≤1 nm |
Flow pool volume |
8 μ L |
|
Wavelength Reproducibility |
≤± 0.1 nm |
Optical path |
10 mm |
|
Dynamic Noise |
≤± 0.75×10-5AU (Methanol, 1ml/min, 254nm, 20°C) |
Static Noise |
≤± 0.5×10-5AU(Empty pool, Response time 1 s, 20 °C) |
|
Dynamic Drifting |
≤± 1×10-4AU (Methanol, 1ml/min, 254nm, 20°C) |
Static Drifting |
≤± 0.5×10-4AU(Empty pool, Response time 1 s, 20 °C) |
|
Qualitative repeatability |
RSD6 ≤ 0.1% |
Quantitative repeatability |
RSD6 ≤ 0.5% |
|
Dimensions |
130H x 260W x 420 D (mm) |
Weight. |
(11 kg) |
|
Operating Temperature |
4~40°C |
|
|
Standard Configuration
|
LC Liquid Constant flow Pump |
2 set |
|
SPD UV-VIS Spectrophotometric Detector |
1 set |
|
SCL System Controller |
1 set |
|

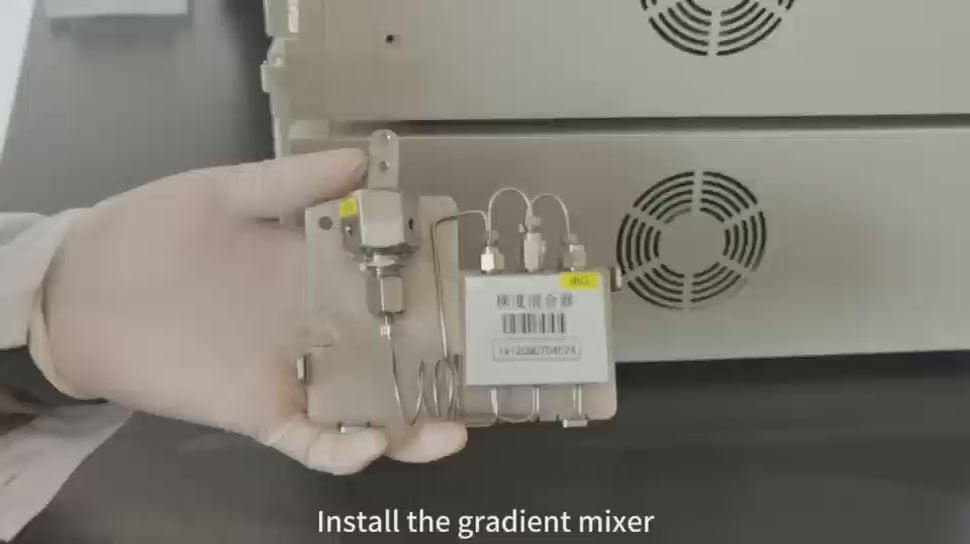

Mixer |
1 set |
|
7725i manual injector |
1 set |
|
Chromatography data system |
1 set |
|
Chromatography column |
1 set |
