Demountable IR Window Holder Kit (FTIR)
Demountable IR Window Holder Kit (FTIR)
Couldn't load pickup availability

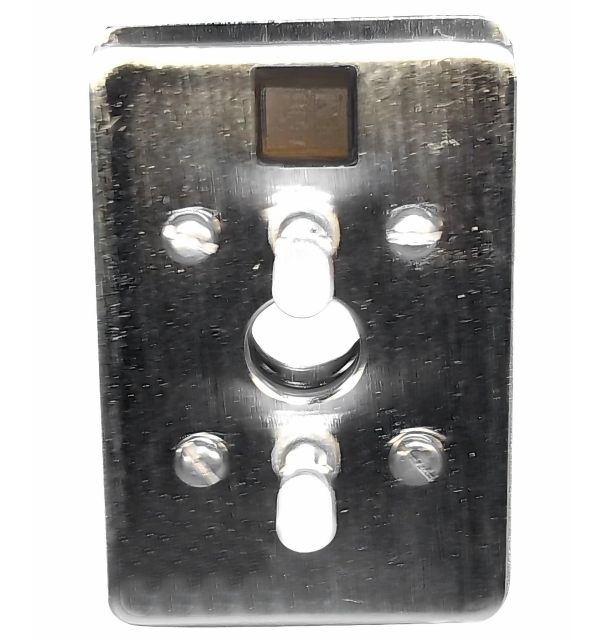

The Demountable Cell Holder is ideal for use when analyzing liquids, mulls and capillary films. Since the windows that are used in this holder are not amalgamated together (as in permanently sealed cells), the cell is easily convertible to accommodate many sampling types. Luer-Lok TM filling ports make filling and clean up easy. This infrared window holder accommodates rectangular windows, but has a circular 14mm aperature.
Cell Assembly
When analyzing mulls or capillary films, the cell is assembled with one or two undrilled windows and when analyzing liquids, the cell can be assembled with one undrilled window, a spacer and a drilled window to create a cell with a specific path length. A gasket is used to help prevent leakage.
14mm aperture
Infrared window size: 38 x 19 x 4 milimeters*
*Windows not included
Consists of the S.S. Holder, rear neoprene gasket, gasket, 2 plugs, pk. of assort. spacers.
Part Number: 6500C
