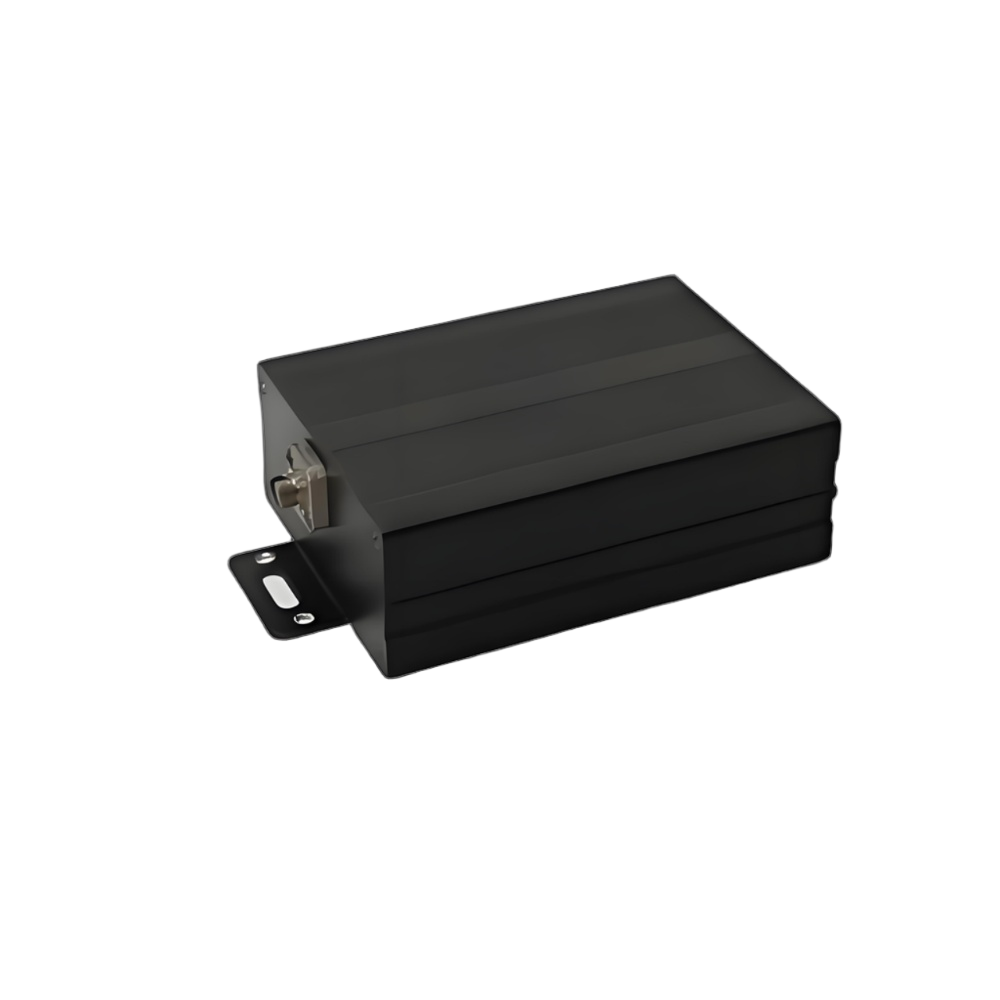

785nm Laser NW-785LD-500
785nm Laser NW-785LD-500
Couldn't load pickup availability
Features
High power 785nm laser with fiber coupling output
Three operating modes: CW, pulse and external trigger
Easily integrated with spectrometers and other devices
Excellent stability
Compact, versatile and cost effective
Default fiber interface is SMA905, other fiber interfaces such as FC etc. are optional
Applications
Instrument lighting
Raman spectroscopy
Spectral analysis
Material inspections
Online inspections
R& D in science and technology
| Items | Specifications | Units |
| Fiber Connector | SMA905 or FC | Upon request |
| Center Wavelength | 785 | nm |
| Wavelength FWHM | 0.1nm | |
| Output Power | 0–500 | mW |
| Output Stability | 0.5 | % |
| Threshold Current | 300 to 350 | mA |
| Power Supply | DC5/1.5 | V/A |
| Communication | USB | |
| Cooling Mode | Built-in TEC, with an outside heat sink | |
| Dimensions | 135x75x35 | mm |
| Weight | 300 | g |
| Expected Lifetime | >10,000 | hrs |
| Laser Operating Temperature | 20–30 | °C |
| Storage Temperature | –20–70 | °C |
