NWS1000 Spectrometer
NWS1000 Spectrometer
Couldn't load pickup availability
Description

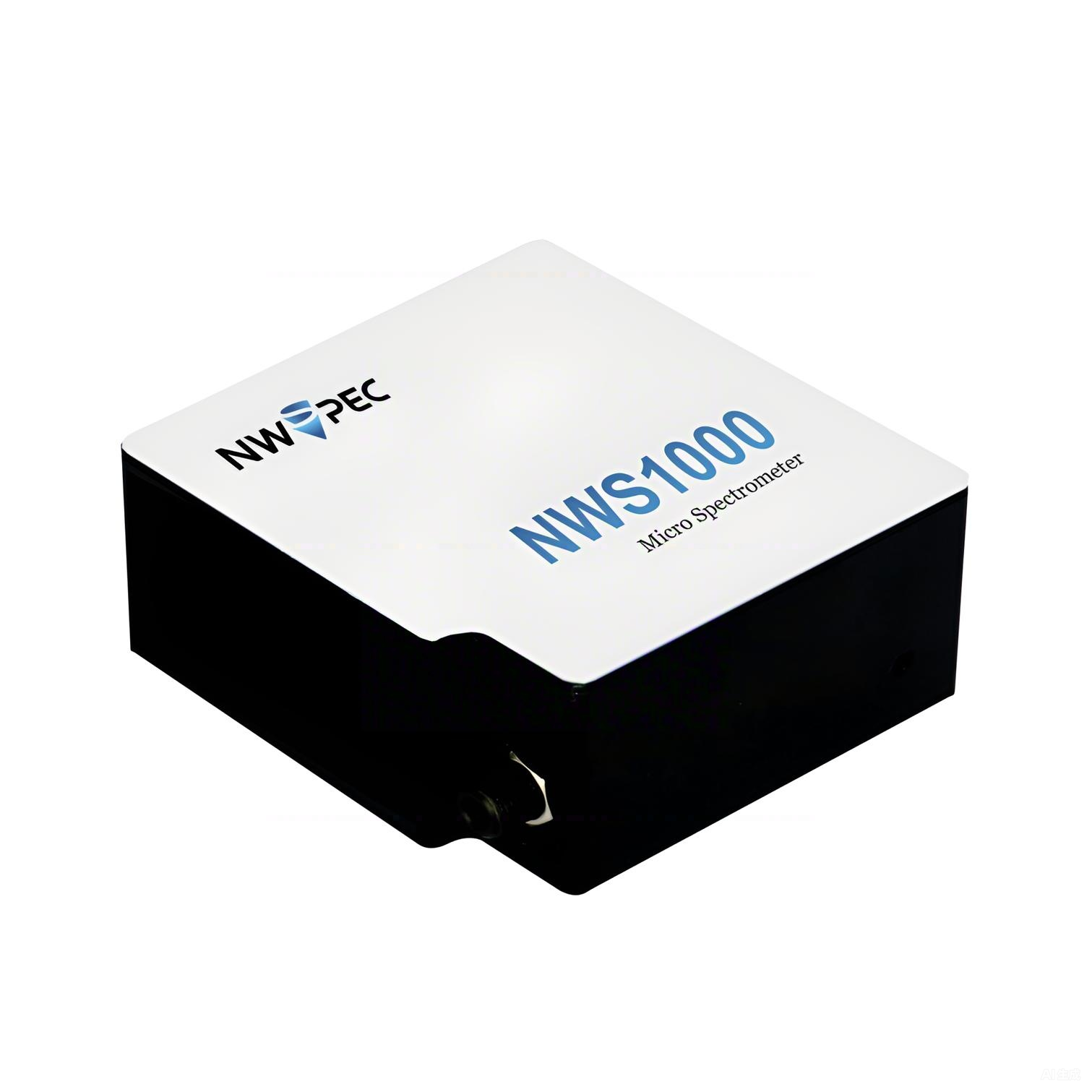

NWS1000 Micro spectrometer, produced by NWSPEC, employs M optical structure with a grating, a line-array photo detector, a SMA905 fiber connector, a Type-C USB and a RS232 communication interface, which can be powered by computer or an external power supplier. It features broadband spectrum, large dynamic range, mini factor and a pleasant looking structure. The software is highly user-friendly, featuring automatic configuring of the spectrometer and reading of calibration coefficients, the spectrum acquisition. The software interface directly shows the spectral curve of wavelength and intensity. The spectrum measurement function includes irradiance, transmission, absorption measurements and reflection etc.
Application
Emission, fluorescence, absorption, and reflection measurements, such as LED light source inspection and color measurement etc.
Specifications
| Items | Specification |
| Fiber Connector | SMA 905 |
| Entrance Slit | 10, 25, 50, 100µm |
| Wavelength Range | 350-830nm |
| Spectrum Resolution | FWHM 3nm@Hg 365nm @25μm slit |
| Sorting Filter | Eliminating higher order spectra |
| Light Detector | Line-array photo detector |
| SNR | 700:1 |
| ADC Resolution | 16 bits |
| Integration Time | 1ms-15min |
| Power Supply | 5V@100mA |
| Communications | Type-C USB or RS232 |
| Data Output | Count vs. wavelength or pixel |
| Data Average | 1-100 times |
| Data Interception | 1-1500 pixels |
| Operation Software | SPEC-GLA600 |
| API | glaDevSys |
| Dimensions | 63mmx53mmx27mm |
| Weight | 150g |
| Mounting | 4x M3 screw holes on the bottom |
| Operation Temperature | -10-50℃ |
| Storage Temperature | -20-70℃ |
