Scientific-Grade Hyperspectral Imager
Scientific-Grade Hyperspectral Imager
Description

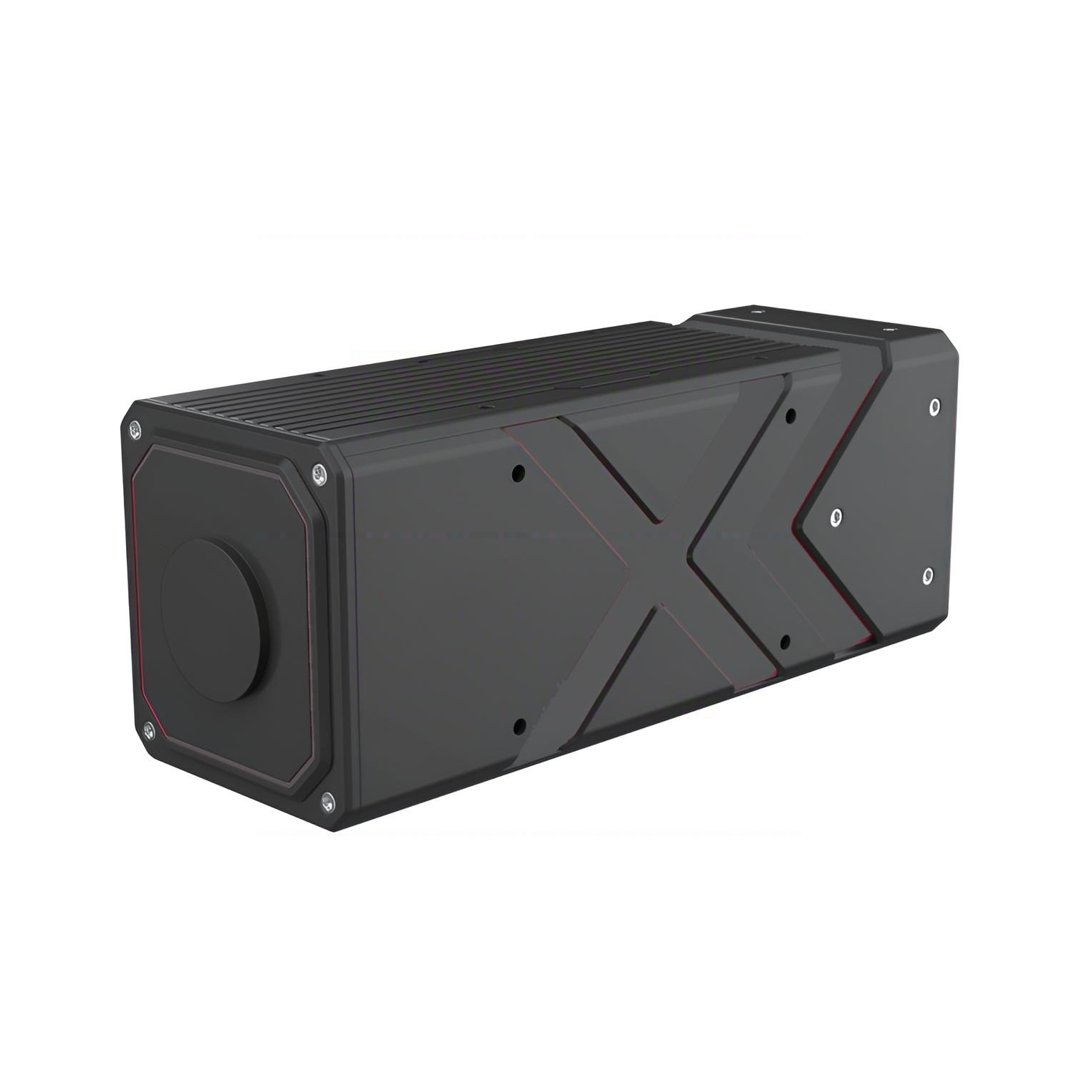

The RC Series employs independently developed prism-grating dispersion hyperspectral imaging technology with push-broom imaging. It delivers high spectral resolution, high efficiency, excellent spectral linearity, and minimal spectral distortion in a compact, lightweight design. The series covers 200nm to 12μm wavelength range across UV, Visible/NIR, NIR, SWIR, and LWIR bands, serving applications in education/research, smart agriculture, ecological protection, intelligent manufacturing, and industrial inspection.
Features
- —High spectral resolution: Prism-grating technology
- —Wide wavelength coverage: UV to LWIR (200nm – 12μm)
- —Multiple detector options: Cooled and uncooled
- —Compact and lightweight design
- —Standard C-Mount lens compatibility
- —Flexible integration: Diverse applications
- —Complete software support: SDK included
- —Cost-effective solution: High performance at competitive pricing
Applications
- —Education & Research
- —Smart Agriculture
- —Ecological Protection
- —Intelligent Manufacturing
- —Industrial Inspection
Order Guide
| Product No. | Model | Product Name | Spectral Range | Resolution | Detector | Interface |
|---|---|---|---|---|---|---|
| 423-332 | RC-30-02 | UV Hyperspectral Camera | 250–490 nm | <2 nm | CMOS | GigE |
| 423-330 | RC-60-01 | VNIR Hyperspectral Camera | 400–1000 nm | <2.3 nm | CMOS | GigE |
| 423-331 | RC-60-03 | VNIR Hyperspectral Camera (Cooled) | 400–1000 nm | <2.3 nm | sCMOS (TE Cooled) | USB 3.0 |
| 423-333 | RC-10-05 | NIR Hyperspectral Camera | 900–1700 nm | <6 nm | InGaAs (TE Cooled) | GigE |
| 423-334 | RC-10-03 | SWIR Hyperspectral Camera | 900–2500 nm | <10 nm | HgCdTe (Stirling Cooled) | GigE |
| 423-335 | RC-10-01 | LWIR Hyperspectral Camera | 7.7–12.5 μm | <40 nm | Cooled IR Detector | GigE |
